China Metal Seat Eccentric Butterfly Valve

Introduce High Performance Butterfly Valves

/в /от
China DIN 593 Wafer Butterfly Valve Manufacture

Wafer Butterfly Valve Supplier, Wafer Butterfly Valve Factory

High performance butterfly valves are essential for precise flow control in demanding industrial applications. In this article, we discuss butterfly valves, why they are needed, and compare them to general service valves.

What are Butterfly Valves?

Butterfly valves are a quarter-turn valve, meaning their valve stem only rotates 90° to open or close. This makes them a popular option in applications requiring a fast shutoff. Also, they are common in various industries for their simplicity, compact design, and cost-effectiveness. At larger valve sizes, butterfly valves have a smaller installation footprint and less weight than most valves. Like other industrial valves, butterfly valves consist of a body, actuator/handle, and trim (disc, stem, and seat). However, its unique feature is its disc, which flaps like a butterfly’s wings to allow or stop flow through the valve.

How Do Butterfly Valves Work?

  • Open Position: When the handle or actuator rotates the stem, the disc turns to align with the flow, allowing fluid to pass through with minimal resistance.
  • Closed Position: When the disc rotates perpendicular to the flow, it blocks the passage, stopping the fluid flow.
Butterfly Valve in open and closed position

High Performance Butterfly Valves

High-performance butterfly valves (HPBVs) are simply butterfly valves with a design that allows them to handle more demanding conditions than general service butterfly valves. They offer several advantages:

  • Higher Pressure and Temperature Ratings: HPBVs can operate under higher pressures and temperatures, making them suitable for more rigorous applications. Generally, these valves can operate between -28 °C and 500 °C (-18 °F to 932 °F) and pressures up to 51 bar.
  • Better Sealing: They often use advanced sealing technologies, such as metal-to-metal seals, especially at very high temperatures and pressures. Hence, it ensures a tight seal even in challenging conditions. For less onerous conditions, valve sealing could be done using PTFE, EPDM, and NBR.
  • Enhanced Durability: The construction materials and design of HPBVs provide greater resistance to wear, corrosion, and other forms of degradation. As a result, high performance valves have a longer service life.
  • Improved Flow Control: HPBVs offer better control over fluid flow with less risk of leakage and more precise throttling capabilities.

Types of High Performance Butterfly Valves

High performance butterfly valves come in several designs, each offering specific advantages depending on the application. The following sections highlight some common types.

Double Offset Butterfly Valves

This type of butterfly valve can deliver high performance by having two distinct offsets in its trim configuration. The first offset positions the stem behind the centerline of the sealing surface of the disc, while the second offset positions the stem off-center from the body centerline. As a result, the valve disc only contacts the seat at the final moment of closure, thus minimizing operational torque requirements, friction, and wear. Double offset butterfly valves provide a tight shut-off, which makes them suitable for applications where leakage control is critical.

high performance double offset butterfly valves

Triple Offset Butterfly Valves

Triple offset butterfly valves have the same offsets as their double offset counterparts but with an additional offset. The third offset introduces a conical profile to the sealing surfaces, which ensures that the contact is perpendicular. This means that the sealing surfaces make no contact until the valve is fully closed, thus eliminating any form of friction and paving the way for metal-to-metal seals. This design provides superior sealing, allowing butterfly valves to serve in high-temperature, high-pressure, and cryogenic conditions.

High performance triple offset butterfly valves





High Performance Butterfly Valves vs Butterfly Valves

The following table highlights several differences between general service butterfly valves and high performance butterfly valves.

Feature General Service Butterfly Valves High Performance Butterfly Valves
Design Generally have a concentric design with the stem centered in the valve body and the disc Often feature an offset design to reduce friction and improve sealing
Sealing Mechanism Uses a soft seat made of materials like rubber or elastomers Utilizes a metal-to-metal seat or a combination of metal and resilient materials
Pressure Rating Suitable for low to moderate pressure applications as well as temperatures up to 200°F (93°C) Designed for high pressure and high temperature applications, including cryogenic conditions
Cost Generally lower cost due to simpler design and materials Higher cost due to advanced design and materials
Flow Characteristics Typically for on/off applications and allows for small leakage Low torque requirements, so it is easier to operate
Torque Requirements Generally has a concentric design with the stem centered on the valve body and the disc Higher torque requirements due to robust sealing

Selecting the Right Butterfly Valve

High performance butterfly valves offer advanced features and enhanced durability to meet the demands of challenging applications. Whether dealing with high pressures, extreme temperatures, or critical fluid services, these valves provide reliable and efficient flow control across various industries. However, this comes at a higher cost than general service butterfly valves. So, it is necessary to assess operating conditions to know if this extra measure is justified.

At QRC Valves, we have an array of high performance as well as general service butterfly valves for you to choose from. Our knowledgeable team is available to help you select the right valve to ensure optimal performance and longevity.

China 2500LB CF8C Globe Valve Manufacture

Between Gate Valve vs Check Valve

/в /от

Gate valves and check valves serve distinct purposes in industrial piping systems, each offering unique benefits depending on the application. This article reviews each of these valves and compares the features of a gate valve vs a check valve.

What is a Gate Valve?

Gate valves are common in piping systems to control the flow of liquids and gasses. They belong to the family of linear motion valves that control the flow of fluid by raising or lowering a gate-like disc. A typical gate valve provides a tight seal when shut and also provides unrestricted flow when in the fully open position. Depending on the type of material in use, gate valves can serve in low-temperature, low-pressure systems and high-temperature, high pressure applications.

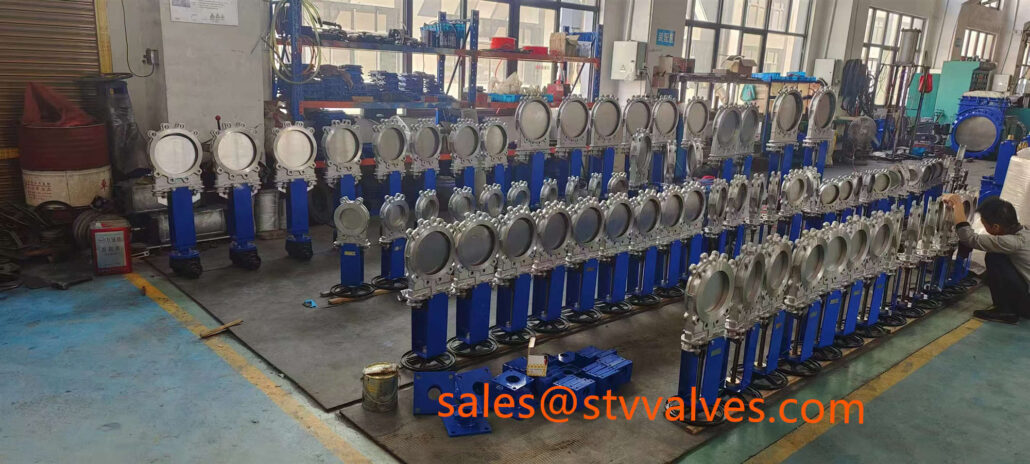

Array of Gate Valves

China 2500LB CF8C Globe Valve Manufacture

Advantages of Gate Valves

The use of gate valves provides several advantages in an application.

  • Because gate valves provide minimal obstruction to flow, the pressure drop across the valve is insignificant.
  • They offer a tight seal when shut-off, thus are suitable for high-pressure applications or when a tight shutoff is necessary.
  • They offer a simple design, which makes manufacturing and maintenance straightforward. Gate valve designs also provide options, such as having a rising or non-rising stem, to suit the demands of certain applications.
  • A gate valve can serve in ring network pipelines where fluid flow is bi-directional.
  • Unique types, such as knife gate valves, can easily handle slurry or any fluids having significant amounts of solids.

Disadvantages of Gate Valves

  • Performs poorly in throttling applications as there is no linear relationship between the disc position and fluid flow rate.
  • Gate valve has slower response time vs a check valve because of the travel distance between the close and open position.
  • Occupies more installation space, especially in rising-stem deployments.

What is a Check Valve?

Check valves, or non-return valves, are designed to allow fluid flow in only one direction, thus preventing backflow. Their automatic operation makes them essential for protecting equipment and maintaining the efficiency of various systems.

How Does a Check Valve Work?

Generally, the deployment of check valves is in applications where the occurrence of backflow is not desirable. To ensure unidirectional flow, these valves utilize discs that automatically provide a positive seal. These discs could be in different forms such as a flap, piston, and ball, which correlates to swing, lift, and ball check valves respectively. In each of these check valve designs, the disc automatically opens to allow fluid flow after attaining a particular pressure. The fluid pressure keeps the valve in the open direction as long as it remains at or above the preset value. However, if there is a drop in pressure, or a backflow, the valve closes by the aid of a return mechanism, which could be in the form of a return spring, gravity, etc. Therefore, check valves provide a self-reliant system that do not require human intervention to operate.

Промышленный обратный клапан

China 900 LB PSB Swing Check Valve Manufacture

Advantages of Check Valves

  • A check valve has a more compact design vs a gate valve, although both valves have a simple design. This allows for easy installation and maintenance.
  • Check valves operate automatically in response to fluid flow, so there is no need for an external control mechanism.
  • Because of the quick response of check valves to changes in fluid flow, they are ideal for protection of upstream equipment like compressors and pumps from backflow.
  • They are versatile as applications cut across liquid and gas flow control.

Disadvantages of Check Valves

  • Rapid closure of check valves can cause water hammer, a pressure surge that can damage pipes and equipment.
  • Offers limited control over fluid flow so can serve only in certain applications.

Difference Between Gate Valve vs Check Valve

Gate valves and check valves serve different purposes in fluid control systems. While gate valves are primarily used for starting and stopping the flow, check valves serve to prevent backflow. The following sections highlight some of these differences.

Operational Differences

Gate Valves Обратные клапаны
Operates either manually or automatically to fully allow or completely shut out flow. Could permit bi-directional flow but not suitable for metering flow. Design is for automatic operation for flow in only one direction.

Приложения

Gate Valves Обратные клапаны
Suitable for applications requiring no obstruction on the flow path. For example, water distribution systems, oil pipelines, and chemical processing plants. Ideal for systems where backflow could damage or reduce efficiency. Instances include pump systems, condensate lines, and fuel systems.

Pressure Drop

Gate Valves Обратные клапаны
Pressure drop across gate valves varies according to the type. Pressure drop across check valves varies according to the type.

Installation Space

Gate Valves Обратные клапаны
Generally requires a lot more installation space. However, non-rising stem gate valves offer a relatively compact design. Can easily fit into tight spaces because of their compact design.

Choosing Between Gate Valve vs Check Valve

Although gate and check valves differ, some scenarios exist where they could be interchanged or complemented. For example, in an emergency shutdown, an automatic gate valve can isolate the system from pressure while a check valve acting in series prevents backflow. As a result, it is necessary to deploy these valves accurately in line with operating conditions. At QRC, our team of knowledgeable professionals is available to help you in making the decisions that make your system efficient and cost-effective. Contact us today for your valve solutions.

China F11 Y Type Forged Globe Valve

How to choose Cast valves and Forged Valves

/в /от
China Forged Valve Supplier

China Forged Valve Supplier,China Forged Valve Factory,China Forged Valve Manufacture.

Valves are indispensable parts of any industrial system, but they are not all made the same way. Of all the methods, the most popular for making high-quality industrial valves are casting and forging. Thus, it is common to have engineers and product designers deliberating on which of these two will be suitable for an application. In this article, we explore the advantages of each of them, as well as compare the features of cast versus forged valves.





Cast Valves





The manufacturing of cast valves involves smelting metal and pouring it into a mold. Once it cools and solidifies, it is broken or ejected from the mold. Utilizing this method for valve manufacturing is beneficial in several ways including:





    • Cost-Effective Production: Casting is a cost-effective approach to valve manufacturing as it allows for large-scale production of items. Also, using cast valves means far less machining costs in comparison to forged valves.





    • Material Options: Casting offers flexibility to use a variety of metals and alloys, which may not be possible using other means like forging.





    • Versatility in Design: Because of the use of molds, it is possible to make valves with intricate and complex designs, patterns, and sizes.





    • Short Lead Times: When minimizing downtime is critical in any facility, cast valves are better than most options in quickly producing replacement parts.







Types of Casting





There are different methods of casting for valve production, but this section reviews the most common which are sand and investment casting.





Sand Casting





Sand casting is the most common method of casting, especially for making steel valves. It entails fitting the molded design for the valve to the bottom of the sandboxes. Then boxes packed with sand are forcefully pushed into the molds, such that the mold leaves an impression on the sand.





Subsequently, the boxes are flipped upside down to remove the molded designs. Next, two parts of the sandbox fit on top of each other and bolted together. As molten steel pours on top of the sandboxes, it seeps through the holes in the top of the bolted boxes, and the sandbox cools. After cooling, unbolting and removal of the sandboxes reveal the valve component. Surface finishing occurs to meet roughness requirements. Sand casting is ideal for making larger valve components  but is a more expensive casting method.





Investment Casting





Investment casting is the go-to method for producing smaller, more accurate valve components. It is also a more cost-effective method than sand casting. The process involves making a first mold using hard wax, lost wax, lost foam, or similar material. Then, dipping this wax mold in a thick layer of wet ceramic slurry. After curing, the wax melts, leaving the ceramic mold behind. Subsequently, the ceramic mold heats to about 1000℃ to remove any leftover wax or moisture, before the pouring of molten metal. Usually, this method can create valve parts weighing up to 100 kg and a maximum length of 1.6m.





Forged Valves





Unlike cast valves, making forged valves entails shaping metals or alloys while in solid form. To achieve this, industrial tools provide compressive pressure to bend the material, while dies usually serve in shaping and cutting into specific valve components. When forging valves, it is necessary to exceed the elasticity limit of the material but not exceed its strength limit. Therefore, only ductile materials, which have these two limits sufficiently far apart, are suitable for this process. The benefits of manufacturing valves using this process include:





    • Strength and Durability: During forging, the metal’s grain structure stretches, thus, making it homogeneous. As a result, these valves have better mechanical properties such as higher tensile and yield strength, so are less prone to failure.





    • Resistance to Fatigue: The forging process removes internal voids and gas pockets, which reduces the likelihood of fatigue failure, as well as enhances the valve’s reliability over time.





    • Temperature Resistance: Because forging produces valves with thinner walls, there is a lower possibility of heat fatigue during valve work. This implies that forged valves can cool and heat faster, which enables them to withstand the strains of systems that frequently undergo startup and shutdown cycles. Also, they are suitable for extreme temperature operating conditions.







Methods of Forging









The methods of forging valves are classified either according to the temperature at which forging occurs or on the method used in shaping the components. Methods of forging in line with temperature requirements include:





    • Cold Forging: This method involves shaping metals without applying any additional heat. As a result, the metal possesses lower malleability, requiring greater mechanical force to shape it.





    • Warm Forging: Applied heat within the range of 800 to 1000℃ makes the metal more ductile, which requires less force during shaping than in cold forging.





    • Hot Forging: Metal undergoes heating to above 1000℃ but less than 1300℃, which makes it so ductile that only moderate pressure is needed in shaping.







As for classification according to the method of shaping, the methods include:





    • Open Die Forging: Open die forging is suitable for both small items and large metal pieces, as the dies do not completely enclose the metal. The process provides extra durability and allows for safe human operation. Common shapes ideal for this method include discs, rings, cylindrical, and contours.





    • Closed Die Forging: This method entails enclosing the metal part completely and is ideal for making more precise shapes. Also, it is suitable for making smaller parts in large quantities.







Choosing Between Cast vs Forged Valves





Making the choice between using cast versus forged valves depends on the application and several factors, which the following table highlights.





Parameter Cast Valves Forged Valves
Strength and Durability The process of solidifying cast valves sometimes leads to impurities such as voids and cracks in the valve. This results in lesser mechanical properties, so this valve type is not ideal for high-pressure and high-temperature applications. The forging process aligns the metal’s grain structure, thus producing a more resilient material. So, they are the go-to option for handling harsh chemicals, extreme temperatures, and high pressures without failing.
Size and Versatility Effective in producing a variety of valve sizes and intricate shapes. Ideal for smaller valve sizes, generally below DN50. Can serve for larger sizes but will need to be developed in parts and connected by welding or flanges. This increases the risk of leakage.
Cost and Production Labor costs are a lot less and valves can be manufactured in large batches, which is cost-effective. However, many materials and equipment are required for casting, and the process produces substances that can pollute the environment. The manufacture of forged valves is cost and energy intensive. Labor costs take up a huge chunk of the expenses as the valve parts undergo significant machining. In addition, they are made in smaller batches in comparison to cast valves.
Surface Finish The forging process aligns the metal’s grain structure, thus producing a more resilient material. So, they are the go-to option for handling harsh chemicals, extreme temperatures, and high pressures without failing. The forging process produces a more refined surface finish, so there is less need for extensive post-forging machining.
Lead Time Cast valves are the preferable option when time is a critical factor. Although they have better performance, production time is longer.
Cast Vs Forged Valves Comparison
China 1500LB Integral Flanged Check Valve

What is The Piston Check Valve

/в /от

Поршневой обратный клапан

Piston Check Valve

China Piston Check Valve Manufacture,China Piston Check Valve Supplier,China Piston Check Valve Factory.

Piston check valves are essential for controlling fluid flow in various industrial applications. They belong to the check valve family, which permits only unidirectional flow in a system. In this article, we explore how a piston check valve works, its installation process, and compares to other types of check valves.

Piston Check Valve Operation

A piston, or lift, check valve is a type of check valve in which a piston is the valve disc for controlling fluid flow. Before delving into its operation, it is important to review its components using a typical diagram.

Piston Check Valve Diagram

Like other check valves, a piston check valve has a mechanism to keep the disc in the seating position. This is usually a spring, but it could be any other mechanism that provides a force contrary to fluid flow. One key attribute of piston check valves is a guide, which prevents misalignment of the piston as it opens and closes. The following diagram highlights the basic components of a piston check valve.

Piston or Lift Check Valve Components

China Lift Check Valve Manufacture,China Lift Check Valve Facoty,China Lift Check Valve Supplier.

Courtesy: Inst Tools

How Does a Piston Check Valve Work?

This section reviews the operation of a piston check valve when in forward flow, no or low flow, and reverse flow.

Forward Flow

When fluid flows in the desired direction, it exerts pressure to lift the piston off its seat. After attaining a threshold pressure, the fluid overcomes the resistance from the spring and gravity, hence lifting the piston. The particular pressure at which lifting occurs depends on design parameters like the spring stiffness and weight of the piston. Once lifting occurs, the fluid flows through the valve with minimal resistance.

Low or No Flow

If the pressure on the piston decreases or stops, the gravity and spring force move the piston to close the valve gradually. This will occur until the piston rests entirely on the seat to stop the flow completely.

Reverse Flow

The valve design is such that if there is an attempt at reverse flow, the back pressure pushes the piston firmly onto the seat. As a result, backflow is not possible. This protects the upstream components from potential damage and prevents contamination from backflow.

Piston Check Valve Installation

Proper piston check valve installation is essential for optimal performance and longevity. Here is a step-by-step guide based on industry best practices for installing a piston check valve.

Shut Down the System

Ensure the system is depressurized and drained. Follow appropriate lockout/tagout procedures to prevent accidental operation during installation.

Preparation

  • Inspection: Inspect the valve and piping before installation for damage or debris. Ensure the valve is the correct type and size for the application.
  • Clean the Pipeline: Clean the pipeline to remove any dirt, debris, or foreign materials that could affect the valve’s operation.
  • Check Flow Direction: Verify the flow direction marking on the valve body. Because piston check valves are unidirectional, they must be in the correct orientation to function properly.

Install the Valve

  • Positioning: Position the valve between the pipeline flanges, ensuring it is aligned with the flow direction. The valve installation can be horizontal or vertical, according to the manufacturer’s specifications.
  • Gasket Installation: Place the appropriate gaskets between the valve and pipeline flanges. Ensure the gaskets’ correct alignment to prevent leakage.
  • Bolt Tightening: Insert the flange bolts and tighten them evenly using a star pattern to ensure uniform gasket compression. Use a torque wrench to apply the torque according to the manufacturer’s specifications.

Post Installation

  • Alignment: Ensure the valve and pipeline are adequately aligned. Misalignment can cause stress on the valve and piping, leading to potential leaks or damage.
  • Piping Support: Provide adequate support for the valve and piping to prevent undue stress on the valve body. Use hangers, supports, or brackets as per requirements.
  • Final Inspection: Perform a final inspection to ensure all bolts are tight and have the correct valve orientation.

System Restart

  • Gradual Pressurization: Slowly pressurize the system to check for leaks. Gradually increase the pressure while monitoring the valve and surrounding piping for any signs of leakage.
  • Operational Check: Test the valve operation by introducing flow to verify that the piston lifts and seals correctly. Observe the valve during normal operation to ensure it functions as expected.

Piston Check Valve vs Swing Check Valve

Feature Поршневой обратный клапан Поворотный обратный клапан
Sealing Design Utilizes a piston that moves linearly to open or close the valve. Moreover, the valve seat is either flat or conical. The disc swings about a pivot to open or close the valve. The valve seat could be flat or angled.
Response Generally quicker due to the piston’s weight and spring assistance. Slower because of swinging motion.
Sock and Vibration Less susceptible to water hammer. Closing action makes it more susceptible to water hammer.
Shutoff Delivers a tighter seal because of the large surface area of piston and seat. Offers less flow resistance, making it less than ideal for high-pressure applications.

Piston Check Valve vs Ball Check Valve

Feature Piston Check Valves Ball Check Valves
Sealing Design Utilizes a piston to close or open the valve. A ball moving within a chamber closes or opens the valve.
Process Installation Orientation Flow can be horizontal or vertical. Whereas flow can be in any direction.
Maintenance Requires precise alignment for optimal performance. Fewer moving parts for easier maintenance.
Приложение Ideal for high-pressure applications due to its higher resistance and robust sealing. However, it is more expensive. Ball check valves have higher resistance than swing check valves, but still lower vs piston check valves. Simpler design means it comes at a lower cost.
Double Eccentric Butterfly Valves

DIFFERENCES BETWEEN DOUBLE VS. TRIPLE ECCENTRIC BUTTERFLY VALVE

/в /от
  • Double and triple eccentric butterfly valves are both designed to offer improved performance over traditional concentric butterfly valves, especially in high-pressure and high-temperature applications. The terms “double” and “triple” refer to the number of offsets (eccentricities) in the valve design, which significantly affect how the valve operates and seals. Understanding the differences between these two types of eccentric butterfly valves is crucial for selecting the right valve for specific operational needs.

    Double Eccentric Butterfly Valves (Double Offset)

    • Дизайн: The first offset is the shaft placement off the pipe or disc centerline, which allows the disc to move off the seat upon opening, reducing wear on the sealing surface. The second offset is the shaft placement behind the disc plane, creating a cam action during operation that enhances sealing capability and reduces operating torque.
    • Sealing: Typically utilizes a resilient (soft) seat, which can be made of materials like PTFE, rubber, or other polymers, allowing for tight shut-off in various applications.
    • Приложения: Suitable for higher pressure and temperature applications than concentric valves but below the extreme conditions that triple offset valves are designed for. Commonly used in water distribution, HVAC systems, light industrial processes, and chemical applications where a tight seal and durability are required.

    Triple Eccentric Butterfly Valves (Triple Offset)

    • Дизайн: Incorporates three offsets: two similar to the double eccentric design and a third offset, which involves angling the conical shape of the seating surface. This geometry ensures that the disc only contacts the seat at the final point of closure, minimizing wear and allowing for a metal-to-metal seal.
    • Sealing: The metal-to-metal seat design enables the triple offset valve to handle extreme temperatures, pressures, and corrosive media, providing a long-lasting, bubble-tight seal.
    • Приложения: Engineered for the most demanding applications, including high-pressure steam, oil and gas pipelines, power generation, and process industries where reliability and performance under extreme conditions are paramount.

    Key Differences (Double/Triple Eccentric Types)

    • Sealing Mechanism: Double eccentric valves usually have resilient seats for good sealing at lower pressures and temperatures, while triple eccentric valves use a metal-to-metal seat design for harsh conditions.
    • Wear and Tear: Triple offset valves minimize wear on the sealing surfaces due to the disc only making contact at full closure, unlike double offset valves, which may experience more wear due to their soft sealing materials.
    • Application Suitability: Double offset valves are versatile for a wide range of applications but might not be suitable for the highest pressures and temperatures. Triple offset valves are designed for extreme conditions where performance and durability are critical.

    In summary, the choice between double and triple eccentric butterfly valves depends on the specific application requirements, including pressure, temperature, and the nature of the media being handled. Triple offset valves are typically chosen for their ability to perform in extreme conditions, offering durability and a reliable seal, whereas double offset valves provide an efficient and cost-effective solution for a broad range of less severe applications.

    Detail of double offset butterfly valve .        Triple eccentric structure
    The images show the design difference between a double and a triple eccentric butterfly valve (respectively at the left and right side of the diagram).

    MATERIALS FOR BUTTERFLY VALVES

GATE VALVE VS. BUTTERFLY VALVE

Differences Between Gate And Butterfly Valves

/в /от

GATE VALVE VS. BUTTERFLY VALVE

Gate valves and butterfly valves are widely utilized in various industrial and domestic piping systems for fluid control. Despite serving the purpose of regulating flow, they exhibit distinct differences in design, operation, maintenance, and application suitability.

GATE VALVE VS. BUTTERFLY VALVE

Задвижка

Design and Operation: A gate valve features a flat gate that moves up and down in a linear motion perpendicular to the direction of flow. The valve operates by a handwheel or an actuator, and it is primarily used for starting or stopping the flow, allowing for a full, unrestricted flow path when fully open.

Преимущества:

  • Provides minimal pressure drop when fully open.
  • Suitable for both on/off and isolation applications.
  • Can handle thick fluids, as the gate can cut through viscous flow.

Disadvantages:

  • Slow to open and close due to the multiple turns required on the handwheel.
  • Not suitable for throttling applications, as partial opening can cause seat and gate damage.
  • Larger size compared to butterfly valves, requiring more space for installation and operation.

Двустворчатый клапан

Design and Operation: A butterfly valve consists of a disc that rotates around a central axis within the body of the valve, allowing for quick and efficient flow control. Operated by a handle, gear, or actuator, butterfly valves can be used for both on/off control and throttling.

Преимущества:

  • Compact and lightweight design, requiring less space and support.
  • Quick to open and close, offering good control over the flow rate.
  • Generally more cost-effective than gate valves, especially in larger sizes.

Disadvantages:

  • The presence of the disc in the flow path can cause a pressure drop, even when fully open.
  • Not ideal for applications with particulate-laden fluids, as particles can accumulate around the disc and stem, potentially leading to wear or operational issues.
  • Sealing performance might not be as effective as gate valves for high-pressure applications.

Key Differences Between Gate And Butterfly Valves

  • Flow Control: Gate valves are best suited for on/off applications with minimal pressure drop, while butterfly valves offer superior functionality in throttling and quick operation scenarios.
  • Design and Space Requirements: Gate valves require more space due to their linear operation and larger size, making butterfly valves more suitable for compact or limited-space environments.
  • Cost and Maintenance: Butterfly valves are generally more cost-effective and easier to maintain due to their simpler design and fewer moving parts. Gate valves, on the other hand, may require more maintenance, especially in systems with solid or viscous fluids.

Application Suitability Of These Two Types Of Valves

  • Gate Valves: Preferred in applications where an unobstructed flow and tight shutoff are required, such as in water and wastewater treatment, oil and gas pipelines, and other high-pressure systems.
  • Butterfly Valves: Ideal for applications requiring flow regulation and where space and cost are concerns, including HVAC systems, pharmaceutical processing, and food and beverage industries.

Selecting between a gate valve and a butterfly valve depends on the specific requirements of the application, including flow control needs, system pressure, space constraints, and budget considerations. Each valve type offers unique advantages that make it suitable for particular scenarios, ensuring efficient and reliable fluid control in diverse settings.

Differences Between Gate And Check Valves

Differences Between Gate And Check Valves

/в /от

Gate valves and check valves are two distinct types of valves used across various industries for controlling fluid flow in piping systems. Each serves a different primary function and operates based on different principles.

Differences Between Gate And Check Valves

Задвижка

Design and Function: A gate valve features a movable gate or wedge that slides vertically to control the flow of fluid. It is operated manually, typically using a handwheel or an actuator for larger sizes. The primary function of a gate valve is to start or stop the flow, providing a clear and unobstructed path when fully open, and a tight seal when fully closed.

Приложения: Gate valves are widely used in applications where a full, unrestricted flow of fluid is necessary. They are ideal for on/off control but are not suitable for throttling purposes, as partial opening can cause vibration and damage to the gate and seats. Common uses include water supply, oil and gas pipelines, and other systems where flow needs to be completely shut off or allowed freely.

Преимущества:

  • Minimal pressure drop when fully open.
  • Suitable for both liquid and gas applications.
  • Provides a tight seal when closed.

Disadvantages:

  • Slow to open and close.
  • Not suitable for throttling.
  • Prone to wear and corrosion, which can affect sealing over time.

Обратный клапан

Design and Function: A check valve, also known as a non-return valve, allows fluid to flow in one direction and automatically prevents backflow when the fluid in the line reverses direction. It operates based on the flow pressure and does not require manual operation. The internal mechanism varies by design, including ball, swing, and lift check valves.

Приложения: Check valves are essential in preventing backflow, protecting equipment, and ensuring the safety of the system. They are used in a wide variety of applications, including water and wastewater treatment, chemical processing, and residential plumbing systems. Any system where backflow could cause problems or where fluid needs to be maintained in a single direction benefits from the use of a check valve.

Преимущества:

  • Prevents backflow automatically.
  • Can be used in a wide range of pressures and temperatures.
  • Available in various designs to suit specific flow characteristics.

Disadvantages:

  • Cannot be used to regulate or stop flow.
  • Some designs may cause a significant pressure drop.
  • Requires careful selection and installation to function correctly.

Key Differences Between Gate And Check Valves

  • Primary Function: Gate valves are used to start or stop the flow, while check valves are designed to prevent backflow and allow flow in only one direction.
  • Operation: Gate valves require manual or actuator operation to open or close, whereas check valves operate automatically based on flow conditions.
  • Application Use: Gate valves are chosen for system isolation or where full flow is necessary. Check valves are selected to prevent backflow and protect against reverse flow conditions.

Understanding these differences is crucial when designing or maintaining a piping system, ensuring that the right type of valve is used for its intended function, thereby optimizing system performance and safety.

difference between a gate and a globe valve

difference between a gate and a globe valve

/в /от

GATE VALVE VS. GLOBE VALVE

What is the difference between a gate and a шаровой вентиль?

Gate valves and globe valves are two fundamental types of valves used in piping systems to control the flow of liquids, gases, and slurries. While they share some similarities, they have distinct features, operating principles, and applications that make them suitable for different scenarios.

Understanding the differences between these two valve types is crucial for selecting the right valve for a specific application.

difference between a gate and a globe valve

Design And Operation

  • Gate Valve: Utilizes a flat gate or wedge that moves vertically to the flow direction to open or close the valve. When open, the gate fully retracts into the valve body, allowing for a full, unobstructed flow path. Gate valves are primarily used for on/off control and are not suitable for throttling due to the potential for gate and seat damage.
  • Globe Valve: Features a movable disk-type element and a stationary ring seat in a generally spherical body. The disk moves perpendicularly to the seat, allowing for precise flow control. Globe valves are characterized by their spherical body shape, with the internal baffle that splits the inside space into two chambers. They are used for on/off control as well as for throttling flow, offering better control over flow rates.

Приложения

  • Gate Valves: Ideal for applications where a straight-line flow of fluid and minimum restriction is desired. Commonly used in water supply, natural gas pipelines, and in applications where the valve will remain either fully open or fully closed for long periods.
  • Шаровые клапаны: Suited for applications requiring flow regulation and frequent operation. Their ability to adjust the flow with precision makes them popular in cooling systems, fuel oil systems, marine applications, and where pressure drop is not a significant concern.

Advantages And Disadvantages

  • Gate Valves:
    • Преимущества: Minimal pressure drop when fully open; suitable for both slurries and viscous fluids; provides a tight seal when closed.
    • Disadvantages: Slow to open and close; not suitable for throttling; can be prone to gate and seat damage from vibration if partially opened.
  • Globe Valves:
    • Преимущества: Good for throttling and regulating flow; faster to open and close compared to gate valves; provides better sealing.
    • Disadvantages: Higher pressure drop across the valve; not ideal for applications requiring full, unobstructed flow.

Choosing Between Gate And Globe Valves

Choosing between a gate valve and a globe valve often depends on the specific requirements of the system, including:

  • Purpose: Gate valves are preferred for on/off control where the flow rate is not adjusted frequently. Globe valves are chosen for applications where flow needs to be regulated or adjusted regularly.
  • Flow Characteristics: If minimal pressure drop and full flow are required, gate valves are more suitable. For precise flow control, even at lower flow rates, globe valves are preferred.
  • Space and Orientation: Globe valves, due to their design, may require more space in a piping system and are sensitive to flow direction. Gate valves are less restrictive in terms of space and flow direction.

In summary, the choice between gate and globe valves hinges on the need for either unobstructed flow and infrequent operation or the need for flow regulation and frequent adjustments. Both valves serve critical roles in controlling system flow, and their selection should align with the operational needs and constraints of the application.



Choosing Between Gate And Ball Valves

What is the difference between a gate and a ball valve?

/в /от

GATE VALVE VS. BALL VALVE

What is the difference between a gate and a шаровой кран?

Choosing Between Gate And Ball Valves

Gate valves and ball valves are two of the most commonly used types of valves in various piping systems. Each has its own unique design, operation method, and advantages, making them suitable for specific applications.

Understanding the differences between these two valve types is crucial for selecting the right valve for a given system.

Design And Operation

  • Gate Valve: A gate valve features a flat gate or wedge that moves perpendicularly to the direction of flow. To open or close the valve, the gate is raised or lowered by turning a handwheel or actuator. When fully open, gate valves offer a straight-through flow path with minimal resistance, making them ideal for on/off control rather than flow regulation.
  • Шаровой кран: A ball valve uses a spherical ball with a hole (bore) through its center. Rotating the ball 90 degrees around its axis opens or closes the flow path. In the open position, fluid flows through the bore. Ball valves provide excellent sealing and are used for both on/off control and throttling.

Приложения

  • Gate Valves: Due to their ability to provide minimal flow restriction when fully open, gate valves are often used in applications where a free flow of fluid is necessary and where the valve will remain either fully open or fully closed most of the time. They are commonly found in water and wastewater treatment, oil and gas pipelines, and other situations where fluid must be moved in large volumes.
  • Ball Valves: Ball valves are versatile and can be used in a wide range of applications, including residential plumbing, industrial processes, and gas handling systems. They are particularly valued for their quick operation, durability, and tight sealing capabilities, making them suitable for applications requiring reliable on/off control and system isolation.

Advantages And Disadvantages

  • Gate Valves:
    • Преимущества: Full bore design resulting in minimal pressure drop; suitable for both slurries and viscous fluids; good for high temperature and pressure applications.
    • Disadvantages: Prone to wear and leakage across the seats and gate; slower to operate; not suitable for throttling purposes due to potential seat and gate damage.
  • Ball Valves:
    • Преимущества: Quick and easy to operate with a quarter-turn; excellent sealing capabilities with low torque; durable with a long service life; suitable for throttling applications with proper design.
    • Disadvantages: Potential for cavitation and flow turbulence at partial open conditions; the full bore models can be more expensive than reduced bore models.

Choosing Between Gate And Ball Valves

The choice between a gate valve and a ball valve often comes down to the specific needs of the application, including the type of fluid, required flow rate, operating pressure, and temperature, and whether precise flow control or simple on/off functionality is needed. Cost, ease of maintenance, and space constraints may also influence the decision.

In summary, gate valves are best suited for applications requiring unobstructed flow and minimal pressure drop, while ball valves offer superior sealing and control, making them ideal for a broad range of on/off and throttling applications.





The difference between full bore ball valves and reduced bore ball valves

/в /от

The difference between full bore ball valves and reduced bore ball valves

Full bore ball valves and reduced bore ball valves are two common types of ball valves. The ball diameter of the full bore ball valve is the same as the pipeline diameter, and is suitable for the transportation of high flow media, such as transportation pipelines in industries such as chemical, petroleum, and natural gas. Reduced diameter ball valves, on the other hand, have a smaller diameter than pipeline diameters and are suitable for applications in small flow media and relatively small spaces, such as pharmaceuticals, food, beverages, medical equipment, and other fields. The full bore ball valve has a complex structure and high cost, while the reduced bore ball valve has a small volume, simple structure, and relatively low price.
1、 Definition of full bore ball valves and reduced bore ball valves

Full bore ball valve is a widely used ball valve model, with the same ball diameter as the pipeline diameter, which will not affect the flow rate. Reduced diameter ball valves, on the other hand, have a smaller diameter than pipelines and are suitable for small flow media and relatively small spaces.

2、 The structure of full bore ball valves and reduced bore ball valves

The full bore ball valve has a larger appearance and is mainly composed of valve body, valve cover, valve stem, ball, sealing ring, operating mechanism, etc. It has good sealing performance and is usually used in high flow situations of pipelines.

The spherical diameter of a reduced diameter ball valve is smaller than that of a pipeline, with a smaller and more compact appearance. It mainly consists of a valve body, spherical body, sealing ring, and operating mechanism. Compact structure, good sealing performance, suitable for small flow media and limited space applications.

3、 The difference between full bore ball valves and reduced bore ball valves

1. Applicable occasions vary

Full bore ball valves are suitable for the transportation of high flow media, such as pipelines in industries such as chemical, petroleum, and natural gas. Reduced bore ball valves are suitable for small flow media and relatively small space applications, such as pharmaceuticals, food, beverages, medical equipment, and other fields.

2. Different structures

The ball of a full bore ball valve has the same diameter as the pipeline, and has a larger shape. It mainly consists of the valve body, valve cover, valve stem, ball, sealing ring, operating mechanism, and other parts, with good sealing performance. Reduced diameter ball valves, on the other hand, have a smaller diameter than pipeline diameters and a more compact appearance. They mainly consist of valve bodies, spheres, sealing rings, and operating mechanisms. Compact structure with good sealing performance.

3. Different prices

Due to the large flow rate and complex structure of full bore ball valves during the design and manufacturing process, the cost is relatively higher. The reduced diameter ball valve has a small volume, simple structure, and relatively low production cost.

4、 The application of full bore ball valves and reduced bore ball valves

Full bore ball valves are suitable for conveying and processing large flow media, and are commonly used in petrochemical, power, tap water, and drainage systems. Reduced diameter ball valves are suitable for conveying and processing small flow media, and are widely used in fields such as pharmaceuticals, beverages, and food. In high demand situations, full bore ball valves are generally replaced by reduced bore ball valves to ensure smoother flow and prevent medium leakage and other issues.

51La[nolink]
