Description
Design Standard: API 602.
Body Material: F11
Nominal Diameter: 1 Inch (DN25).
Pressure: Class 1500.
End Connection: SW.
Face to Face: ASME B16.10.
Working Temperature: -29ºC~+540ºC.
Mode of Operation: Handwheel.
Test and Inspection: API 598.
Product Range
Body Material: A105,LF2,F5,F11,F22,304,304L,316,316L,F51,F91,20#,Inconel .Ect
Normal diameter: 1/2″~3″ (DN15~DN80).
End connection: NPT, SW, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196ºC~ +560ºC.

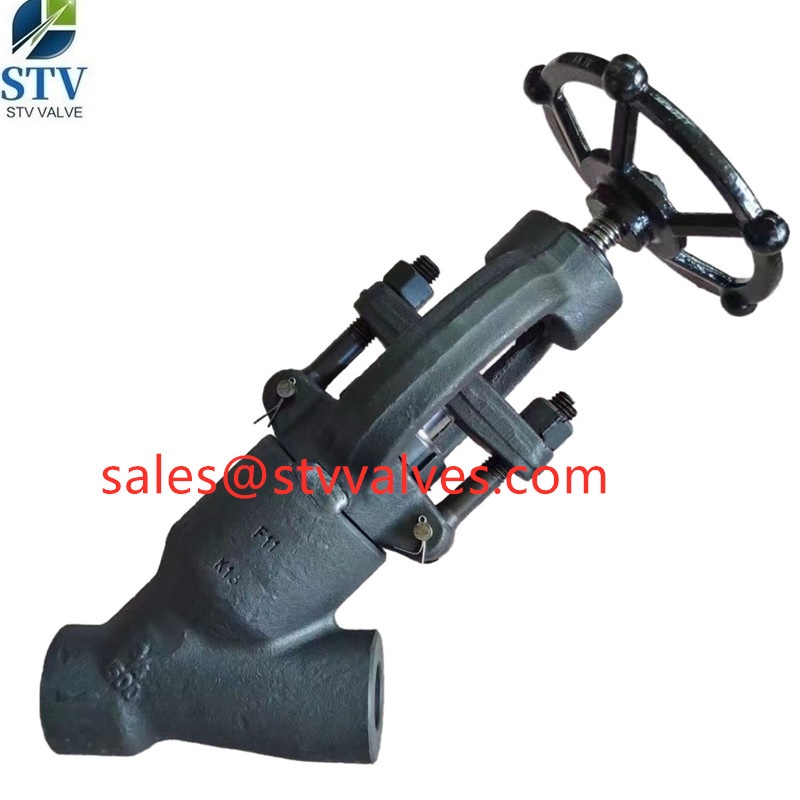

| Product Name | Y Type Forged Globe Valve,1500 Lb, F11, Sw Ends, 1 Inch |
| 1. Material | F11 |
| 2. Size | 1” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 1500lb |
| 6. Connection Ends | SW |
| 7. Working Temp. | -29~540ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
