Description
Design: DIN EN 593
Rating: PN25
Face to Face: DIN EN 558
End Flanged: DIN EN 1092-1
Inspection & Testing: EN 12266
Wall Thickness: EN 12516-1
Temperature:-196℃ ~ +560℃
DN50″~ DN600
Body material: carbon steel, stainless steel, alloy steel,bronze
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)

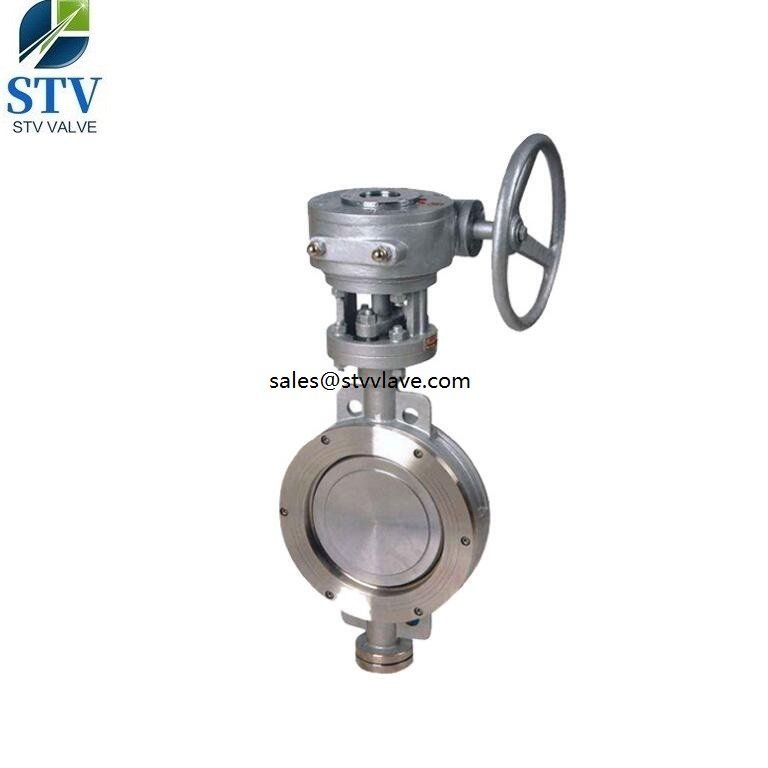

| Product Name | Wafer Butterfly Valve PN25,WCB Body,316 Trim,PTFE Seat,Gear OP |
| 1. Material | Ductile Iron |
| 2. Size | 5” |
| 4. Port | Full Port |
| 5. Working Pressure | PN25 |
| 6. Connection Ends | Socket Weld End |
| 7. Working Temp. | -29~120ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Gear Box |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
