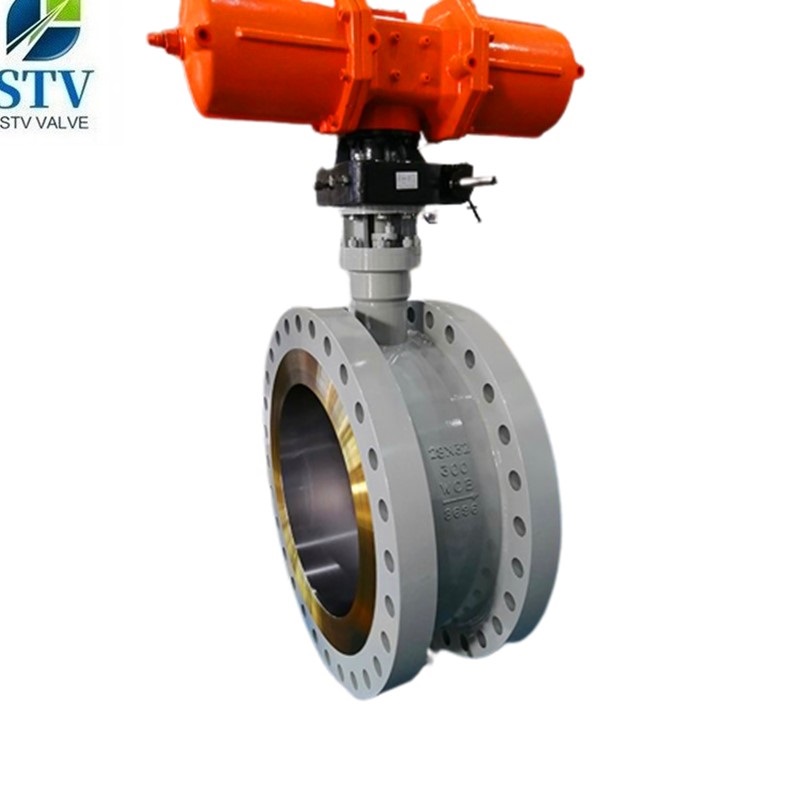

Description
Features:
1. Designed and Manufactured to BSEN 593, MSS SP-67 and API 609
2. Suitable to ANSI 125/150, BS4504, DIN flanges
3. Size Ranges: NPS 2″~52″
4. Pressure Rating: PN10/16, ANSI125/150/300/600/900
5. Materials available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials of Butterfly Valve are available to suit different service conditions
6. Fire-safe design to API 608/API 6FD upon request
7. To MSS SP 01-75 On request
8. Operations: Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumatic
| DESGN & MFT. | API 609 | ENDS CONNECTION | FLG. RF |
| PRE-TEP. RATING | ASME B16.34 | INSPECT & TEST | API 598 |
| F-F DIMENSION | ANSI B16.10 | END CONNECTION | ANSI B16.5 |
| MARKING | MSS SP-25 | FIRE SAFE DESIGN | — |
| PAITING | TBA | SPE. REQUIREMENTS | N.A |
