Description
Design and manufacture:API594,API 6D
Face to face and end to end:API594,API6D,DIN3202
Pressure-temperature rating:ASME B16.34,DIN2410
Inspection and test: API598
Pipe flange: ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.
Product Range
Body material: carbon steel, stainless steel, alloy steel,bronze
Nominal diameter:1/2″~48″(DN15~DN1200)
End Connection: Wafer
Pressure range: Class150~900(PN16~PN150)
Working temperature:-196℃~+560℃

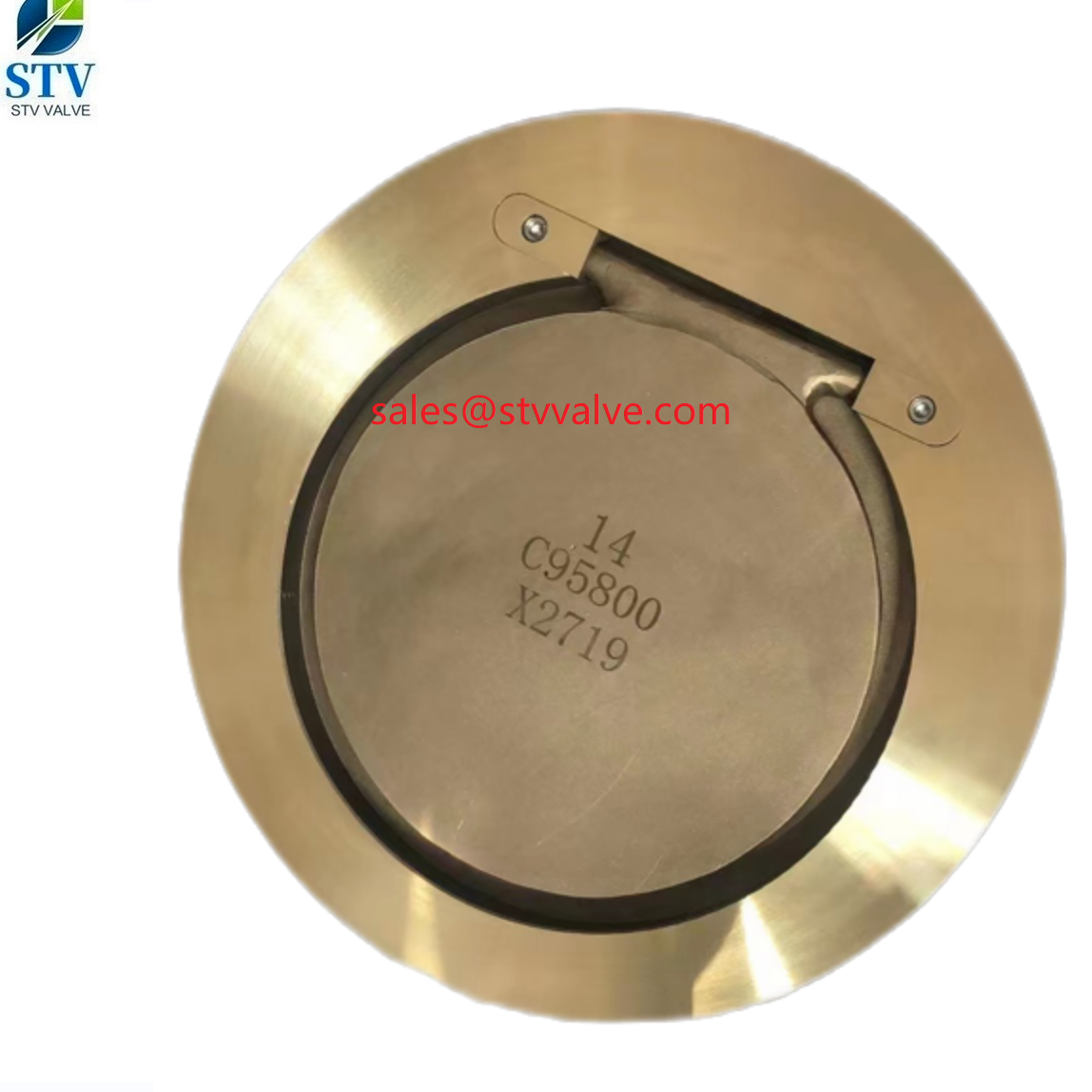

| Product Name | Thin Wafer Check Valve, ASTM B148 C95800, 14 IN CL150, API 594 |
| 1. Material | C95800 |
| 2. Size | 14” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 150lb |
| 6. Connection Ends | Wafer |
| 7. Working Temp. | -29~200ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | / |
| 10. Inspection & Testing | According to API594 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
