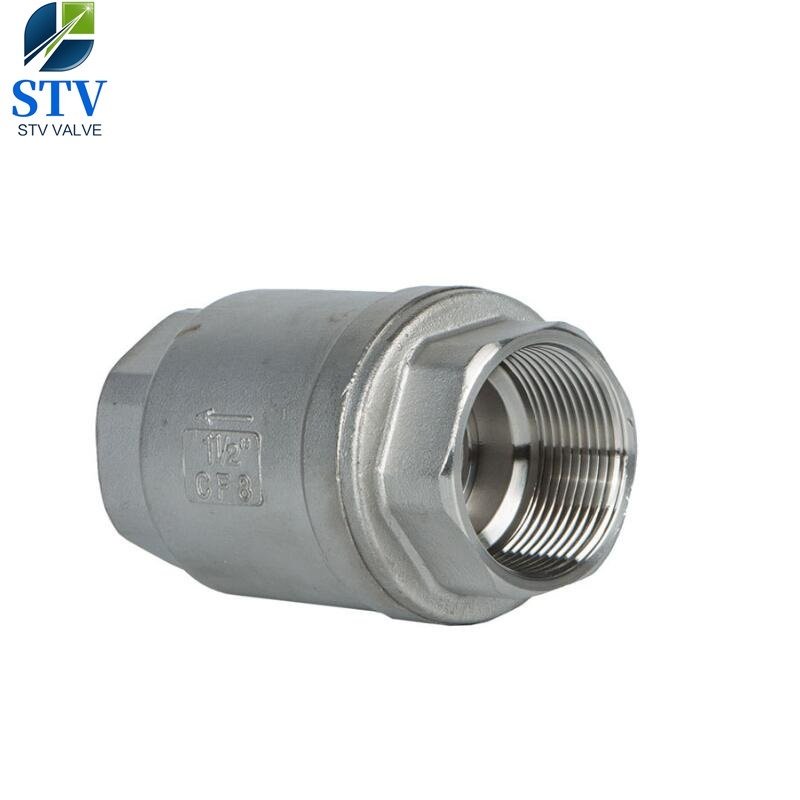

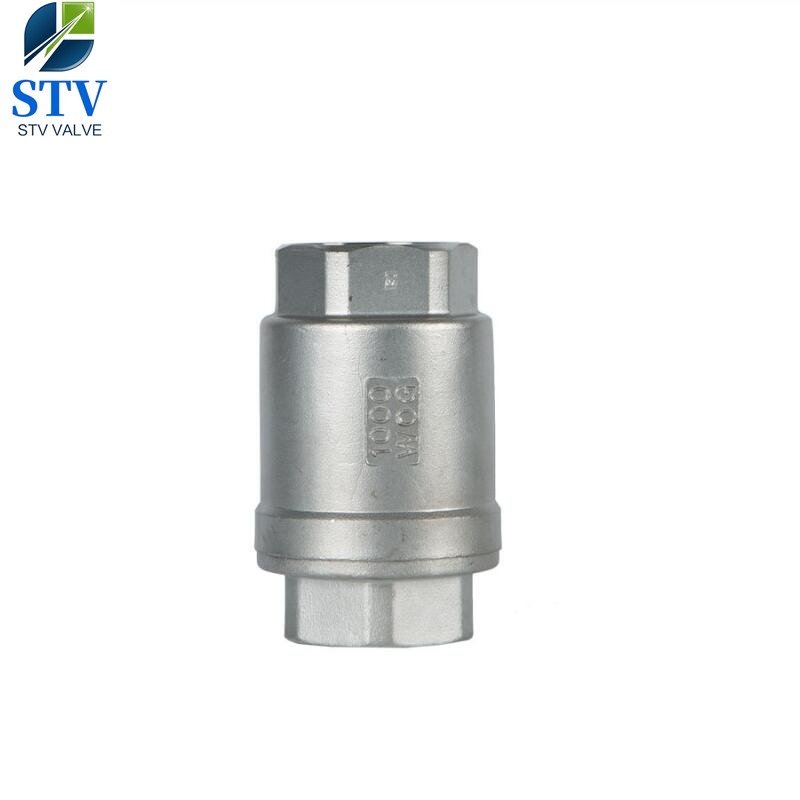

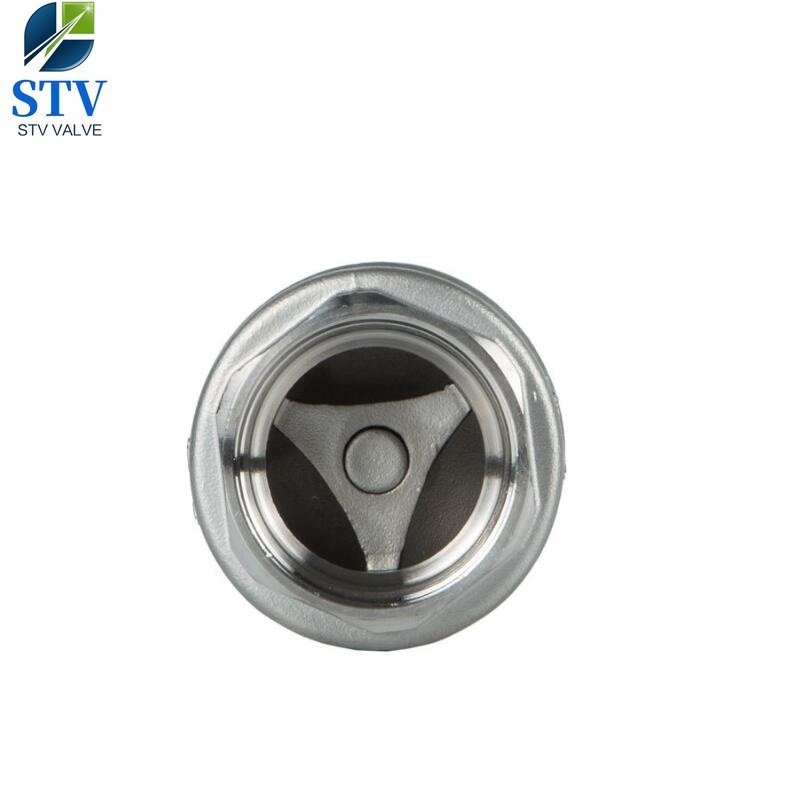

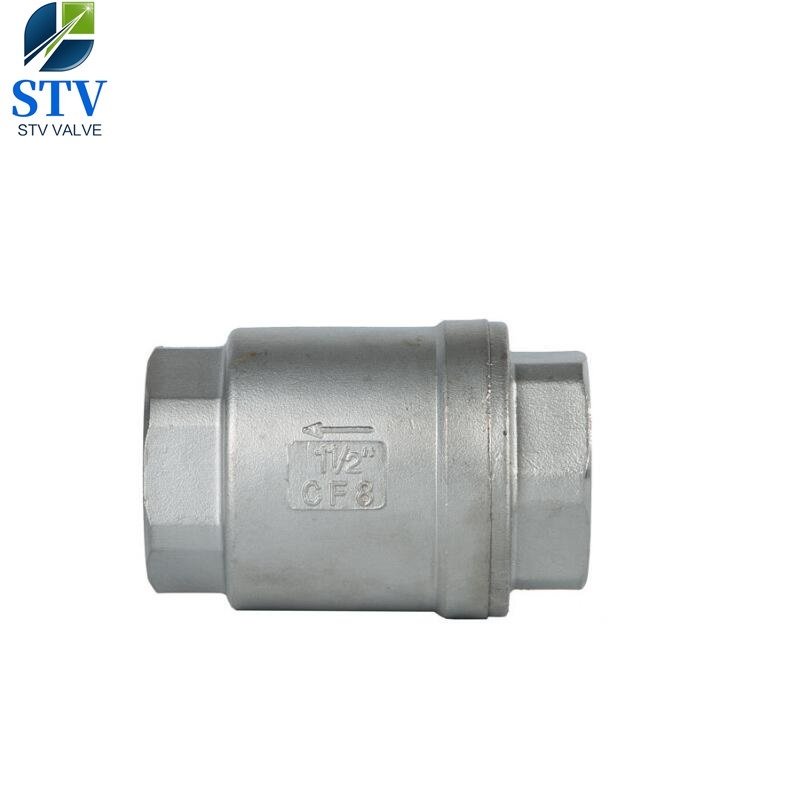

Stainless Steel Screwed Spring Check Valve ,DN40,NPT End

Stainless Steel Screwed Spring Check Valve ,DN40,NPT End
Our Stainless Steel Screwed Spring Check Valve offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. A reliable and robust non return valve featuring a 2 piece maintainable body, PTFE seal and viton seat.

When fitted with a Stainless Steel basket the valve becomes a fully functional Foot Valve.

Installed either vertically (upwards only) or horizontally.

Key features:
Available in Screwed BSP, Spring Check or Foot Valve,

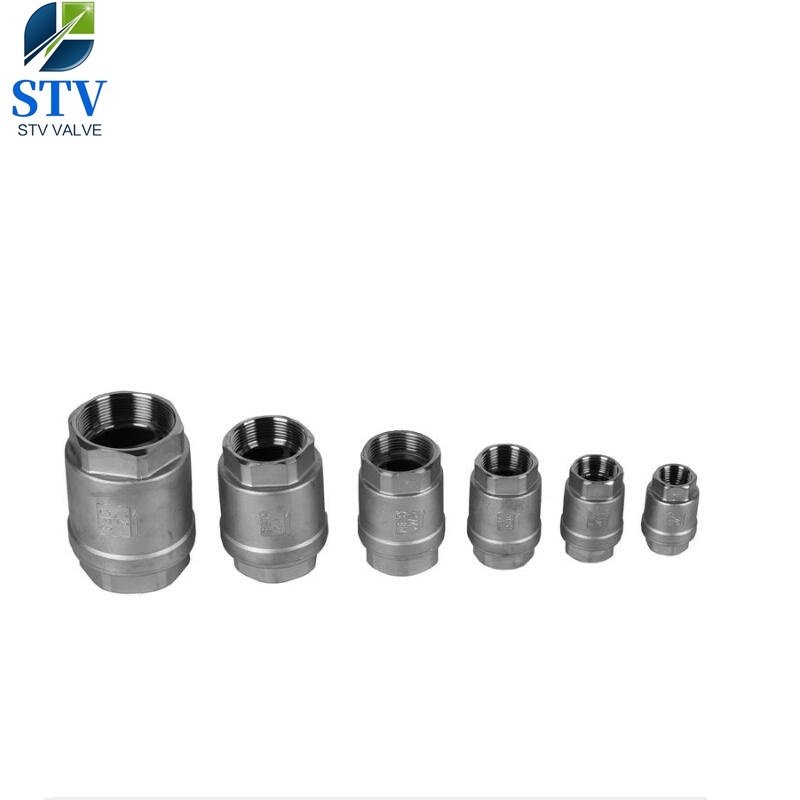

sizes: 1/4″ to 4″
Temperature range: -20°C to 120°C.
Pressure rating: up to 20 Bar.
Body Material:304,316
Manufacture:STV

STV Valve Technology Group Co., Ltd is a professional leader China1000 PSI Check Valve,NPT End Check Valve,Spring Check Valve Spring Check Valve,Vertical Check Valve,stainless steel check valve,spring loaded check valve,lift check valve Manufacturer with high quality and competitive price.

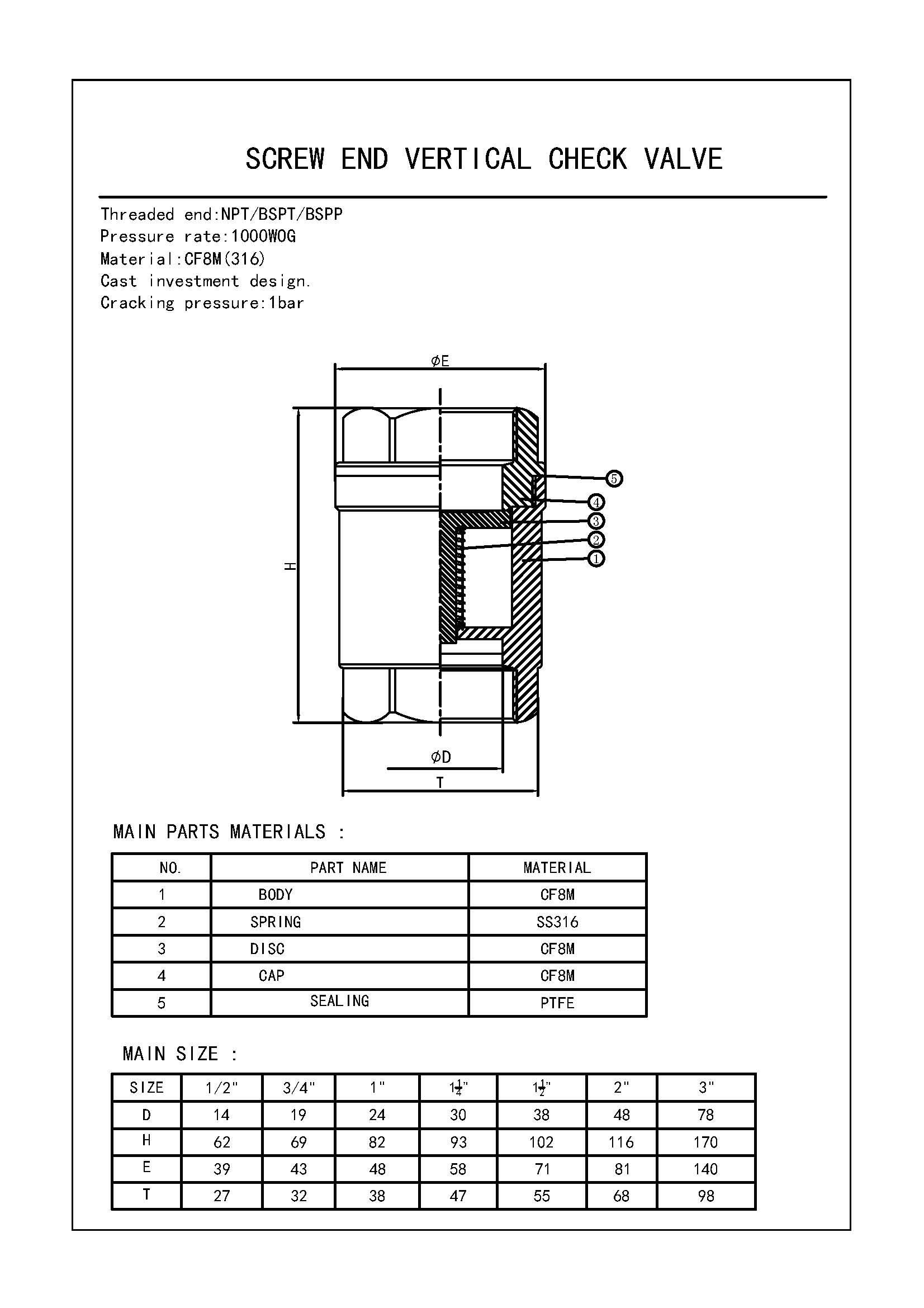

Date Sheet:
Stainless Steel Screwed Spring Check Valve
