Description
1/2″~4″ (DN15~DN100)
Material:WCB/304/316
W. P.: PN16 CLASS 150 JIS 10K
W. T.:-20℃ ~200℃ (-4℉~392℉)
Investment casting
Face to face: DIN 3202 Part1-F1/ANSI 150LB/JIS10K
The Stainless Steel Double Window Sight Glass is one of the main accessories on the industrial pipeline device. In the pipeline of industrial production devices such as petroleum, chemical industry, medicine, food, etc., the sight glass can observe the flow and reaction of liquid, gas, steam and other media in the pipeline at any time, so as to monitor the production and avoid accidents in the production process. According to different requirements, we can divide the straight through mirror into basic type, impeller type, floating ball type and swing plate type.
STV Valve Technology Group Co., Ltd is a professional leader China stainless steel level sight glass ,stainless steel flanged sight glass ,stainless steel oil sight glass,1/2 stainless steel sight glass,stainless steel sanitary sight glass,stainless steel threaded sight glass manufacturer with high quality and competitive price.
Please contact our [email protected] for other materials and details.

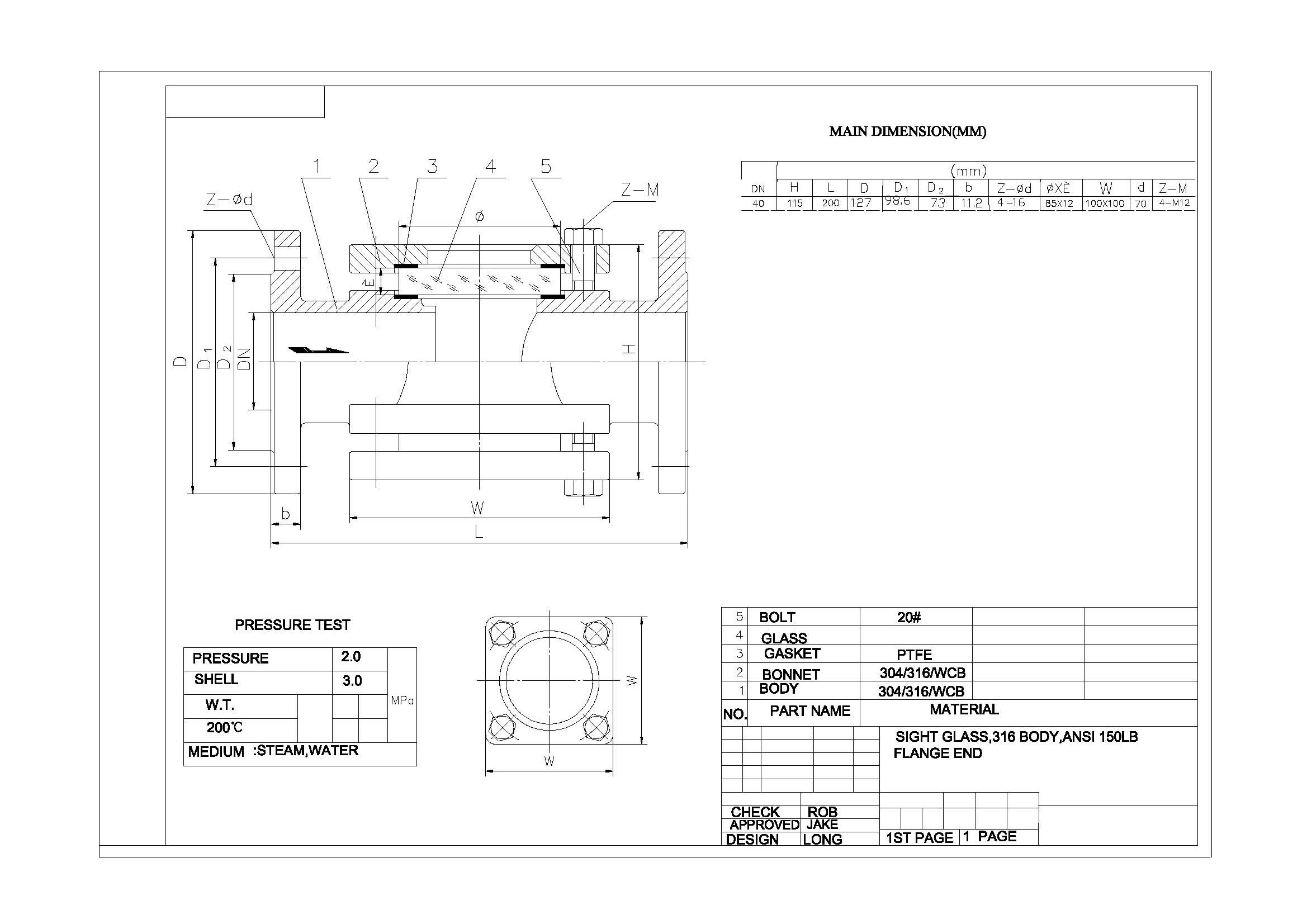

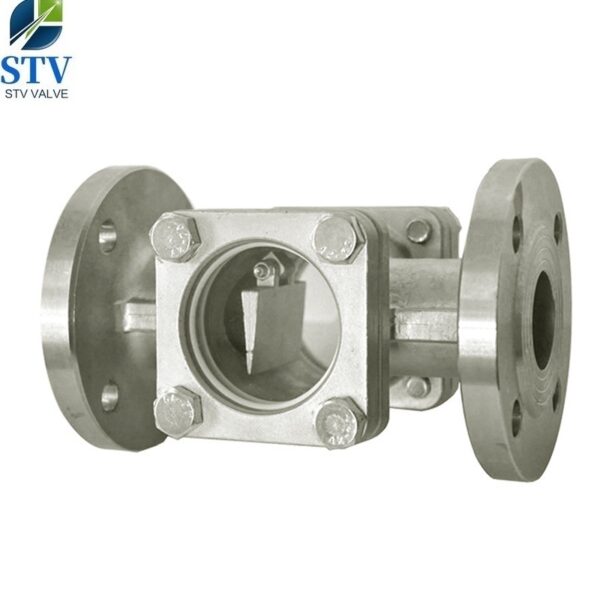

Stainless Steel Double Window Sight Glass,Flanged Type
1/2″~4″ (DN15~DN100)
Material:WCB/304/316
W. P.: PN16 CLASS 150 JIS 10K
W. T.:-20℃ ~200℃ (-4℉~392℉)
Investment casting
Face to face: DIN 3202 Part1-F1/ANSI 150LB/JIS10K
