Description

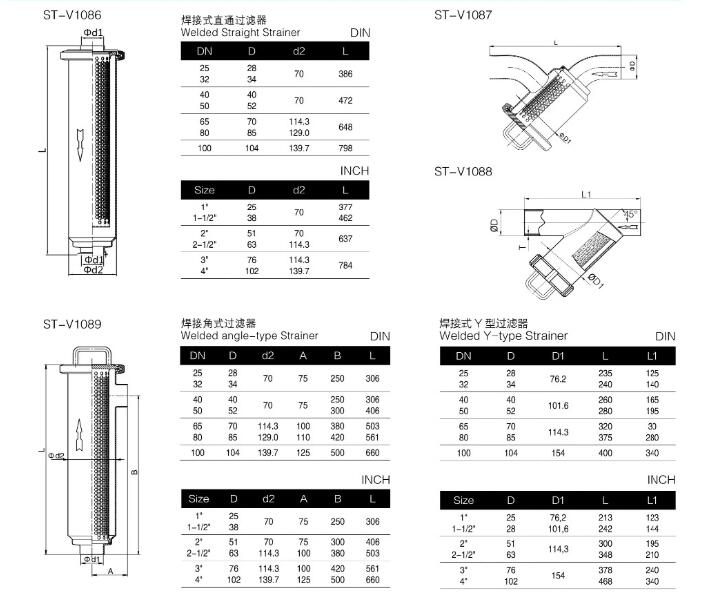

Reference: ST-V1087
Sizes available: 1″-6″ (DN25-DN150)
Housing Material: AISI 304 or AISI 316L
Gasket Material: EPDM, Silicone, Viton (FPM)
End connections: butt-weld, tri-clamp, threaded
Mesh sizes: from 0.5mm to 2.0mm
Screen: from 30 mesh to 300 mesh
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default

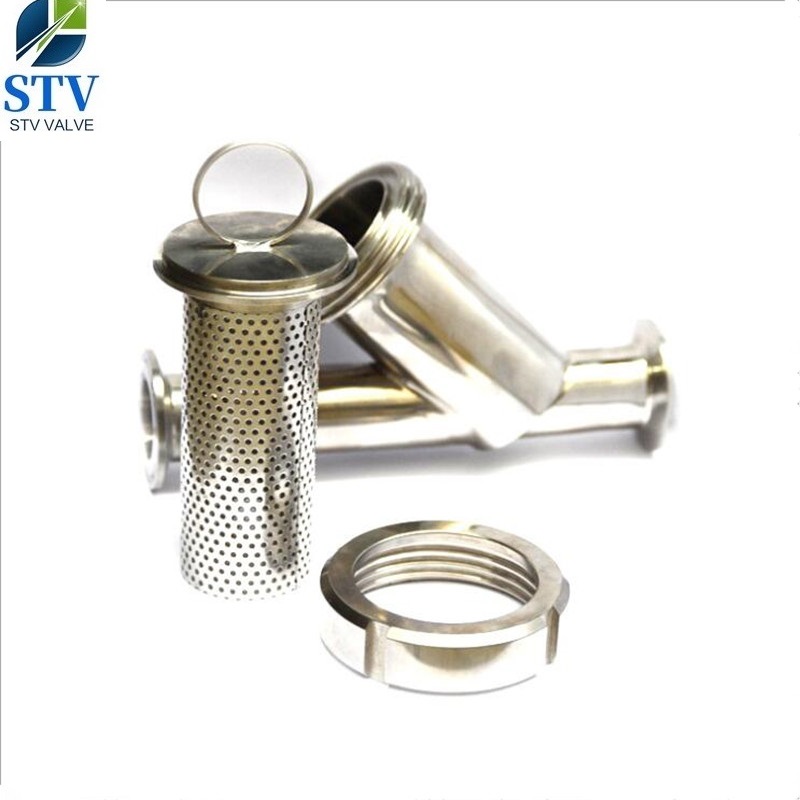

Y Type Filter: no need to disassemble from pipeline, just loose the clamp or nut, then the mesh can be took off easily.
