Description

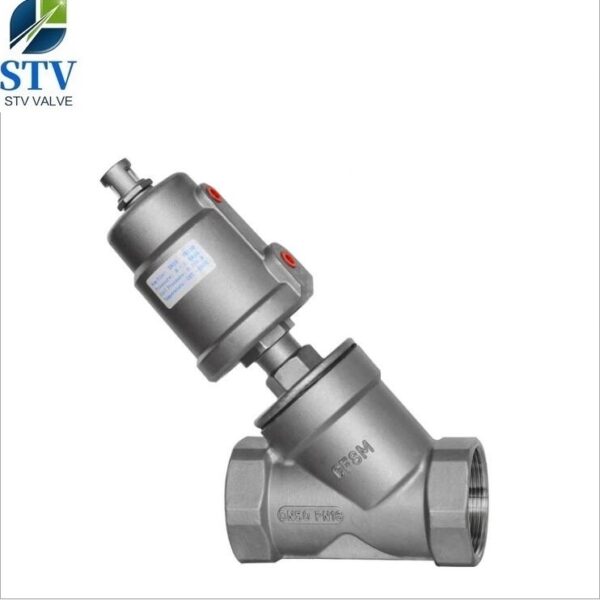

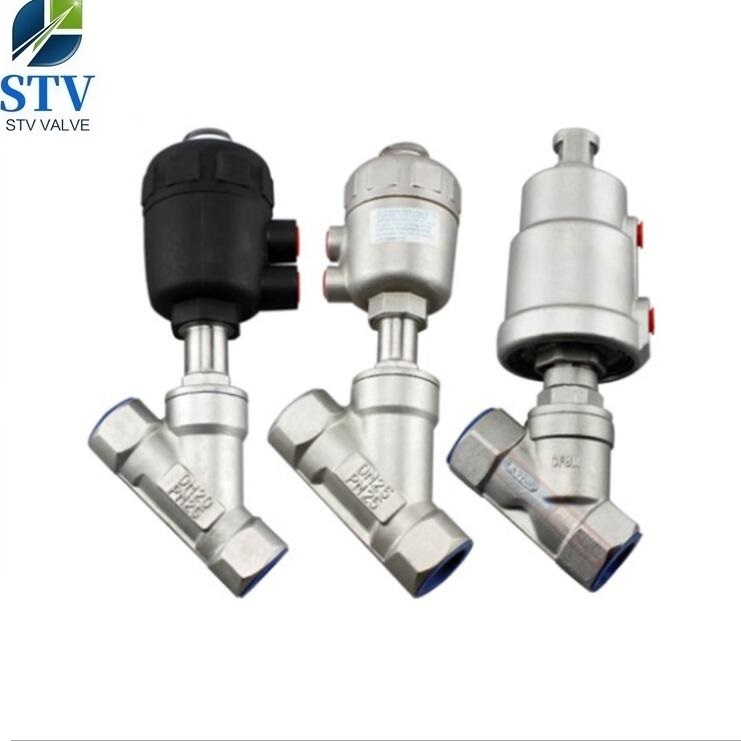

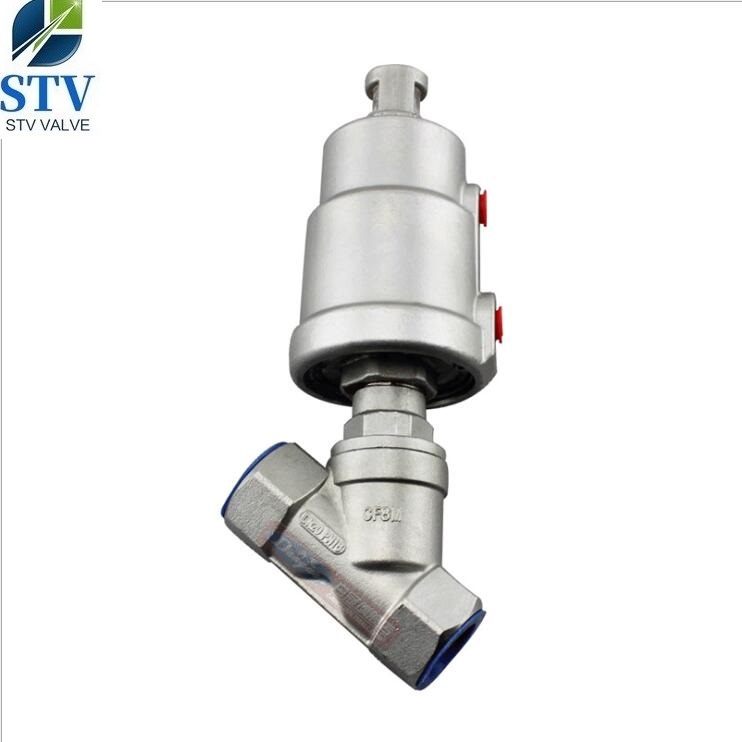

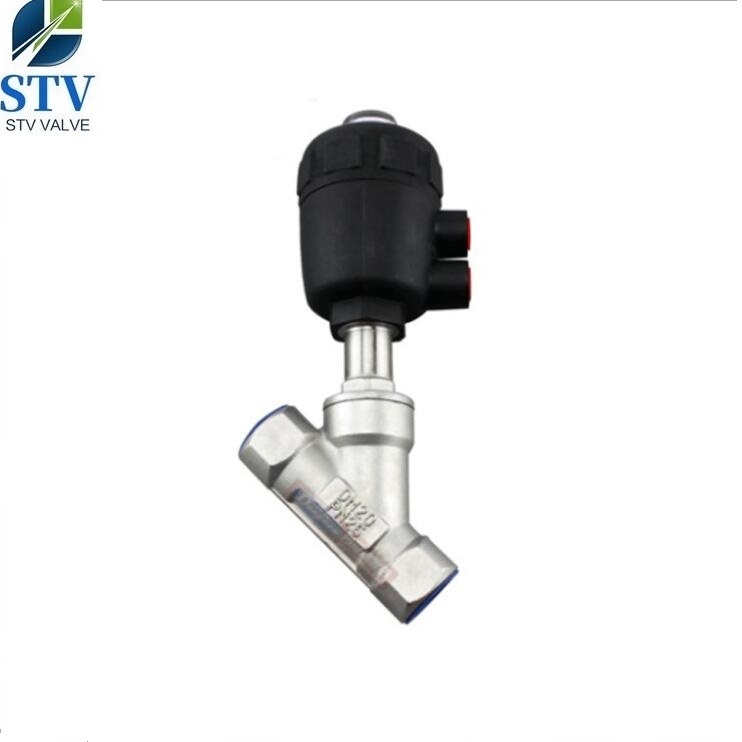

Pneumatic Angle Seat Valve
Technical Data:
Fluid Pressure : Max×1.6MPa(232psi)
Control Pressure:0.3-0.8MPa(43.5-116psi)
Control Fluid:Neutral gas,Air
Actuator Size:27mm,32mm,40mm,50mm,63mm,80mm,100mm,125mm
Applicable Fluid:Water,Alcohol,Oil,Dye,Steam,Neutral gas or liquid,Organic solvent,Acid and lye
Fluid temperature:-10℃-+180℃,25℃-+220℃
Ambient temperature:-10℃-+80℃
Control Type:Normally closed,Normally open,Double acting
Connection: Threaded(BSP.BSPT,NPT),Welded, Flanged, Tri-clamp
Main Materials :
Body Material:CF8M(SS316),CF8(SS304)
Seals Material:PTFE
Actuator Material:CF8 (SS304)
Applications:
Beer& Drink Filling Machinery
Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal
Advantages:
1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.
4.The Cylinder Material is Stainless Steel.Lubricating Automatically,360 Rolling Freely.China Threaded Pneumatic Angle Seat Valve ,Welded Pneumatic Angle Seat Valve, Stainless Steel Pneumatic Angle Seat Valve,Flanged End Pneumatic Angle Seat Valve,Tri-clamp Pneumatic Angle Seat Valve
Product Name | Pneumatic Angle Seat Valve,CF8M,Bspt End |
1. Material | CF8M |
2. Size | 2” |
4. Port | Full Port |
5. Working Pressure | 800wog |
6. Connection Ends | NPT |
7. Working Temp. | -29~120ºC, |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Operated | / |
10. Inspection & Testing | According to API598 |
Shipment | |
Delivery Time | 30 Days |
Package | Standard Exporting Plywood Case |
Shipping Port | Ningbo/Shanghai, China |
Shipping Terms | Exw, FOB, CFR, CIF, etc. |
Payment Terms | T/T, Western Union, PayPal, etc. |
30% prepayment, 70% balance paid before shipping | |
Country of Origin | Wenzhou city, China |
Production Capacity | 6000 ton/year |
MOQ | 1 PCS/size |
