Description

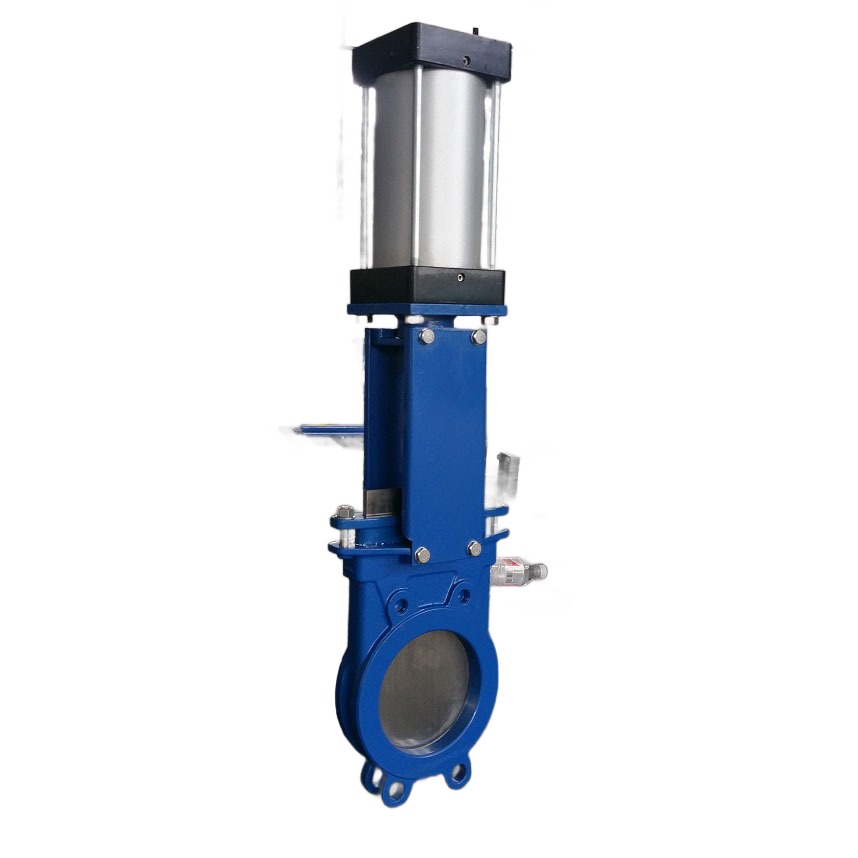

Metal Seat Knife Gate Valve is a unidirectional wafer knife gate valve used on industrial pipeline for on-off operation.
The structure of body and seat eliminates clogging shutoff for flow with fine particles. Additionally, beveled knife edge helps
the gate cut through thick media easily. According to different working situation: non-rising stem knife gate valve, wafer knife
gate valve, lugged knife gate valve, pneumatic knife gate valve, electric knife gate valve, manual knife gate valve and bevel
gear knife gate valve are all available.
Features:
1. Body：
a) Integral body with full bore structure ensures smooth flow, easy assembly and smaller shell leakage possibility.
b) Guide claws design at the port bottom for gate fixture, instead of a groove, eliminates any potential clogging
when valve shutoff.
2. Gate：
a) Beveled knife edge provides strong cutting stress and tight sealing.
b) PTFE resilient point guider above the port prevents metal-metal contact between gate and body.
c) Gate thickness can be increased to meet higher pressure.
3. Seat：
a) Side-entry seat is replaceable, reducing the cost of maintenance.
b) Preloaded seat is adjustable to meet different sealing class and compensate normal seat wear.
4. Other：
a) Double thrust bearing minimize the torque required for operation
Product Introduction
| Size Range: | DN50~600mm NPS 2”-24” （Larger size on request） |
| Max Working Press.： | DN50~DN250: 10Bar NPS2~NPS10：150Psi
DN300~DN450: 7Bar NPS12~NPS18：90Psi DN500~DN600: 4Bar NPS20~NPS24：60Psi |
| Temp. Range： | -29…+800℃ |
| Seal Tightness： | According to MSS SP-81 |
| Body Material： | Carbon Steel, Stainless Steel, Special Allory |
| Gate Material: | Stainless Steel Chrome Plated, Special Allory |
| Seat Material: | Stainless Steel+STL
EPDM (120°C) /Viton(200°C)/PTFE(200°C) /NBR(90°C) |
| Face to Face: | MSS SP-81 |
| Flange Standard: | GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1 |
| Applications: | Pulp & Paper, Water Treatment，Beverage & Food，Fine Chemical,
Power Planet，Steel Industry, etc. |
