Description

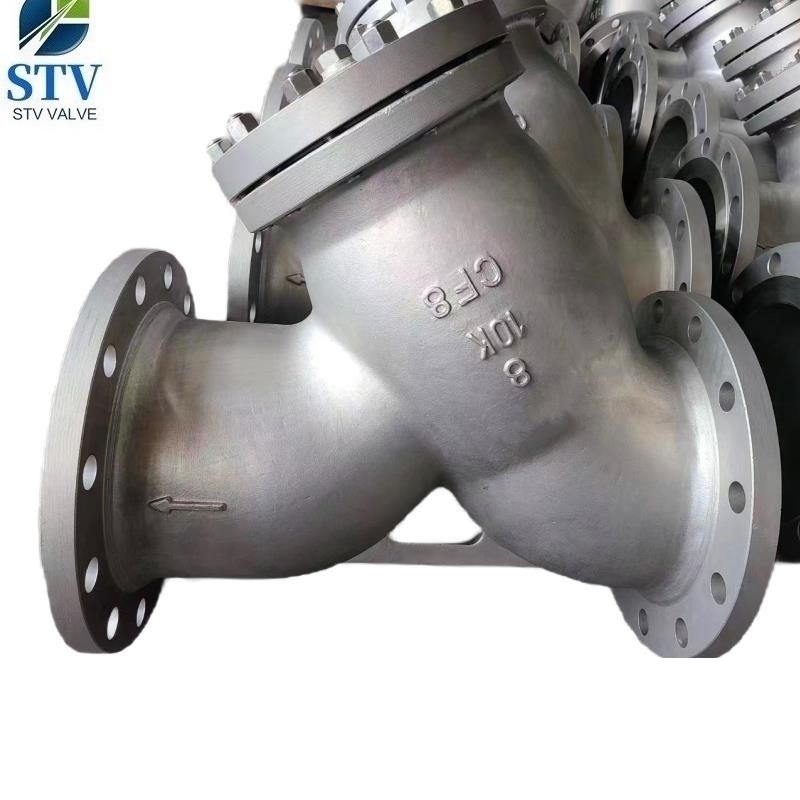

Product name: JIS B2071 Y Strainer,A351 CF8,8 Inch,Flange End
Design: JIS B2071
Material: A351 CF8.
Nominal size: 8 Inch.
Nominal pressure: jis10k.
End Connection: RF flange.
Face to face: JIS B2220.
Test and inspection: JIS B2003.
Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 – 48 Inch (DN15 – DN1200).
End connection: BW, Flanged.
Pressure range: 150 – 2500 LB (PN16 – PN420).
Working temperature: -196℃ – +573℃.
| Product Name |
JIS B2071 Y Strainer,A351 CF8,8 Inch,Flange End |
| 1. Material |
304 |
| 2. Size |
8” |
| 4. Port |
Full Port |
| 5. Working Pressure |
10K |
| 6. Connection Ends |
RF |
| 7. Working Temp. |
-29~30ºC, |
| 8. Suitable Medium |
Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated |
/ |
| 10. Inspection & Testing |
According to JIS B2003 |
| Shipment |
|
| Delivery Time |
30 Days |
| Package |
Standard Exporting Plywood Case |
| Shipping Port |
Ningbo/Shanghai, China |
| Shipping Terms |
Exw, FOB, CFR, CIF, etc. |
| Payment Terms |
T/T, Western Union, PayPal, etc. |
|
30% prepayment, 70% balance paid before shipping |
| Country of Origin |
Wenzhou city, China |
| Production Capacity |
6000 ton/year |
| MOQ |
1 PCS/size |
