Description
Design standard: JIS B2071.
Body material: SCS14.
Nominal diameter: 2 Inch.
Pressure: JIS10K.
End connection;FF.
Face to face: JIS B2002.
Working temperature: -29°C~+200°C.
Test and inspection: JIS B2003.
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2″~8″ (DN15~DN200).
End connection: JIS B2220
Pressure range: JIS10K-JIS20K
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46°C~+200°C.
Anti-static device &Fire proof devide (option)
With ISO 5211 Mounting pad (option)

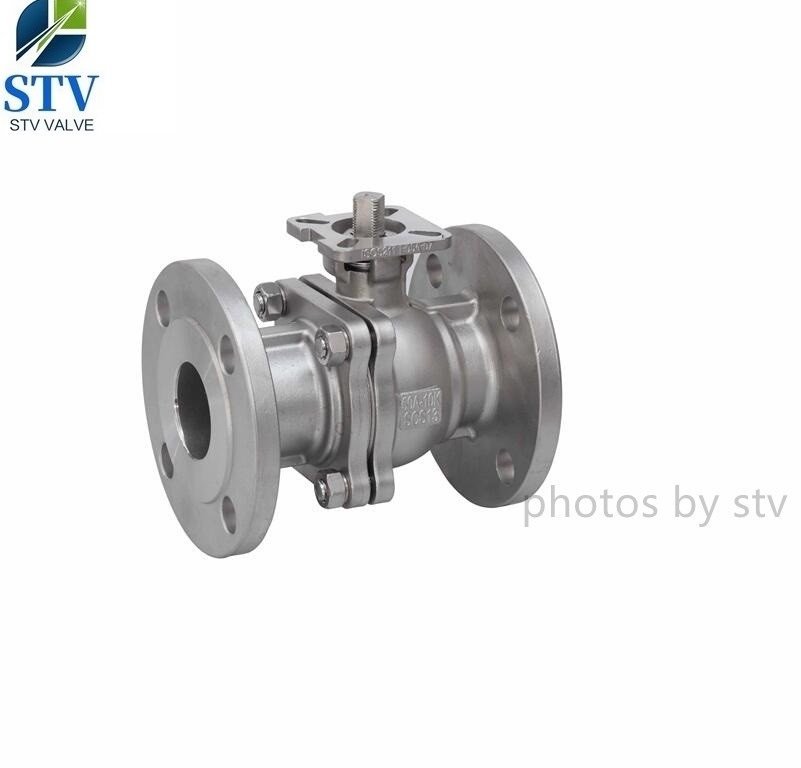

| Product Name | JIS 10K Flanged Ball Valve,ISO5211 Mounting Pad,SCS14,50A |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc |
| 2. Size | 1/2″~8″ ‘ ( 15A~200A) |
| 4. Port | Full Port |
| 5. Working Pressure | JIS10K~20K |
| 6. Connection Ends | FF |
| 7. Working Temp. | -29~180ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to JIS B2003 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
