Description
Product Detail
Design Standard:API602.
Body Material: A105N
Nominal Diameter: 1 Inch (DN25).
Pressure: Class 1500.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+560℃.
Mode of Operation: Handwheel.
Test and Inspection: API 598.
Body Material: A105N
Nominal Diameter: 1 Inch (DN25).
Pressure: Class 1500.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+560℃.
Mode of Operation: Handwheel.
Test and Inspection: API 598.
Product Range
Body Material: A105、LF2、F5、F11、F22、304、304L、316、316L、F51、F91、20#、Inconel .Ect
Normal diameter: 1/2″~2″ (DN15~DN80).
End connection: NPT, SW, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196℃~ +560℃.
Normal diameter: 1/2″~2″ (DN15~DN80).
End connection: NPT, SW, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196℃~ +560℃.

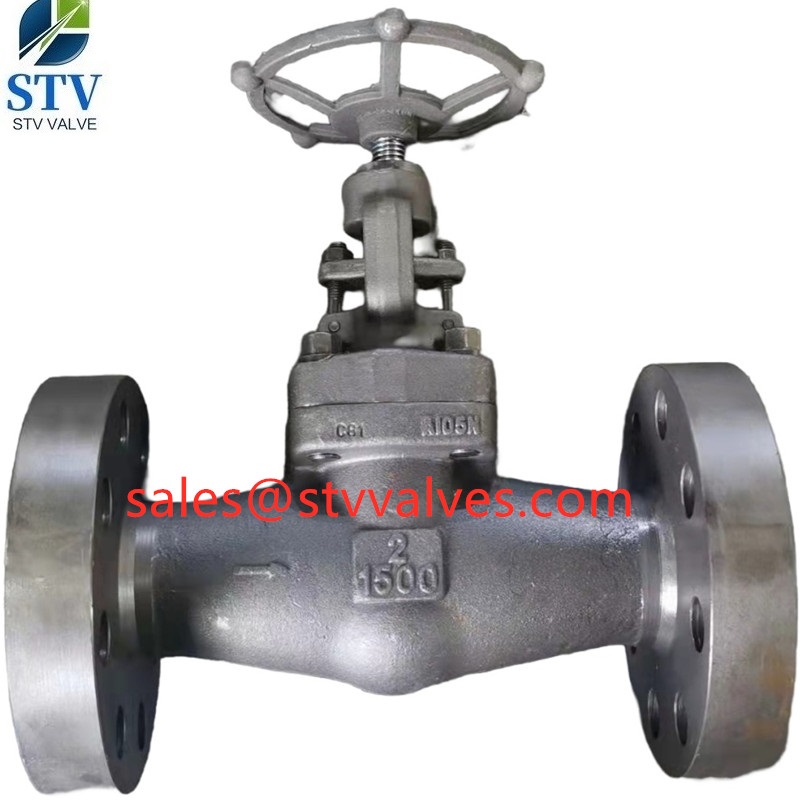

| Product Name | Integral Flanged Globe Valve,A105N,2 Inch,1500LB,RF End |
| 1. Material | A105 |
| 2. Size | 2” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 1500lb |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
