Description
This kind of gate valve is not only characterized as simple structure and reliable usage, but also able to create slight flexible deformation to compensate the deviation of the sealing face angle generated during processing, thus improving the process performance. In addition, at seat and gate disc seal surface are over-lay with iron-base alloy or Co-base alloy or carbide alloy for long duration.
Main Parameter Specification
Design and Manufacture：Cast Steel Gate Valve to API 600(ISO 10434)、API 6D;Cast Stainless Steel Gate Valve to API 603、API 600
Inspection and Test：API598,API600 or API 6D
End Flange Dimension：ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS＞24)
BW end Dimension：ASME B16.25
Face to Face and End to End：ASME B16.10
Pressure-temperature ratings：ASME B16.34
Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter:2″~36″(DN50~DN900)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-29℃~+560℃
Operation: Hand wheel,Gear,Electric Actuator,etc.

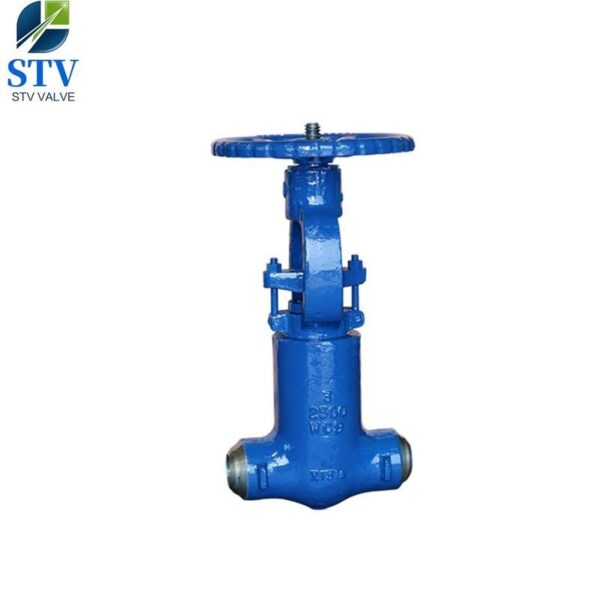

| Product Name | High Pressure Seal Gate Valve,WC9 Body,2500LB,3 Inch |
| 1. Material | WC9 |
| 2. Size | 3” |
| 4. Port | Full Port |
| 5. Working Pressure | 2500lb |
| 6. Connection Ends | BW |
| 7. Working Temp. | -29~540ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
