Description
Din Globe Valve High Pressure To Pn100, Pn160, Bolted Cover or Pressure Seal Bonnet, Rising Stem, Carbon Steel and Stainless Steel Plug Type Globe Valves, Handwheel, Gear Operated Flanged Steel Shut-off Valve Supplier And Manufacturer.
High Pressure Globe Valve Dimensions For DIN PN100 – PN160
Body Material: Cast Steel: GS-C25, WCB, Cast Stainless Steel: 1.4308, 1.4408, A351-CF8, A351-CF8M
Design and Manufacture: DIN 3356.
Face to Face: DIN3202.
Flange Ends: RF, RTJ to DIN2501.
Inspection and Test: DIN3230.
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-196℃~+560℃

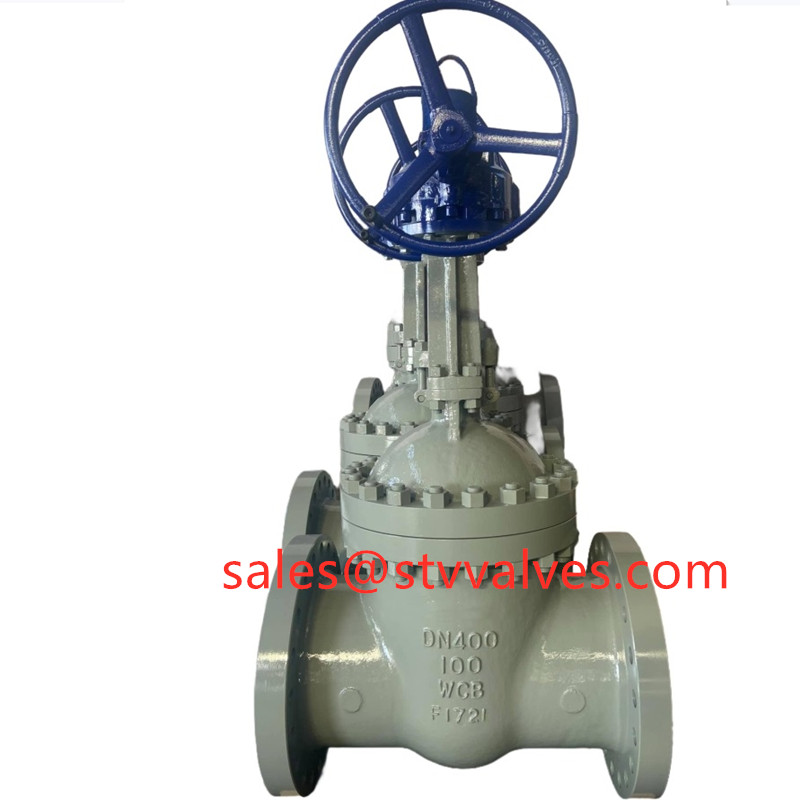

| Product Name: | Gate Valve DIN PN100,DN400,150 LB,DIN 3356 |
| 1.Material: | WCB |
| 2.Size: | 16″ |
| 3.Port: | FULL |
| 4. Working Temperature: | -29 °C-600 °C |
| 5.Connetion End: | RF |
| 6.Working Pressure: | PN100 |
| 7.Suitable Medium: | Water, Natural Gas, Oil and some corrosive liquid |
| 8.Operated: | / |
| 9. Inspection & Testing | According to API 598 |
| Certificate: | ISO, CE/API 6D |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
