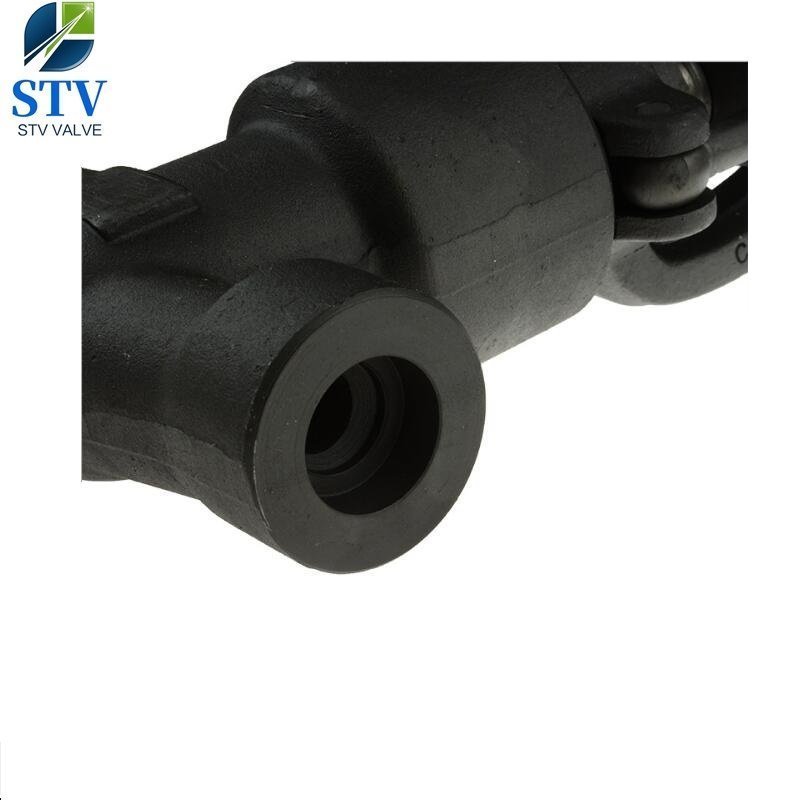

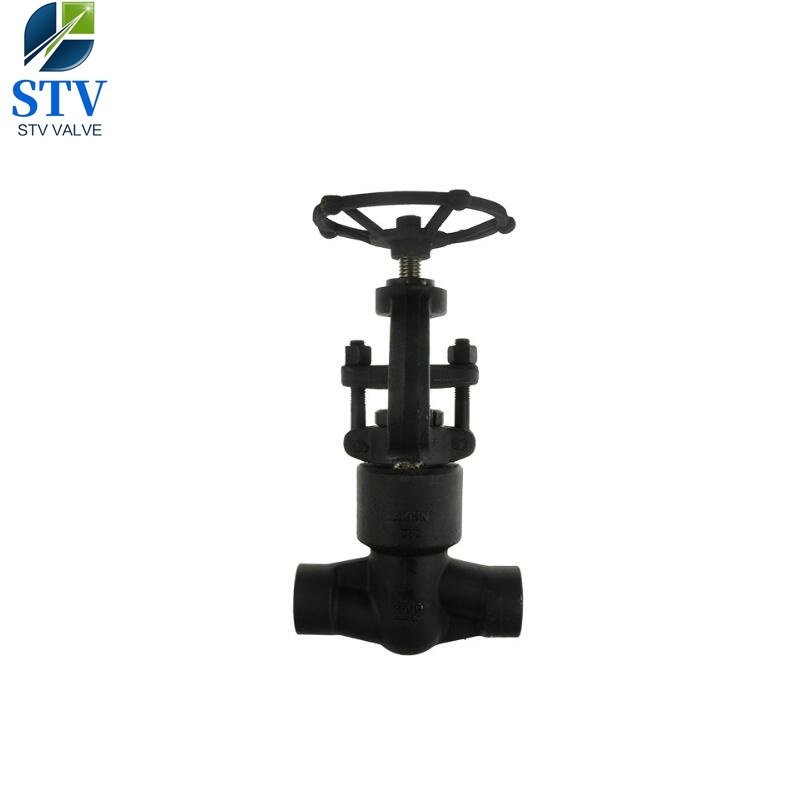

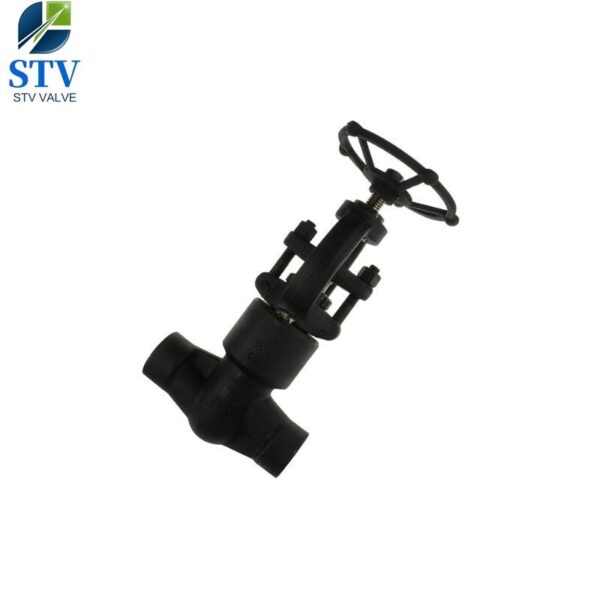

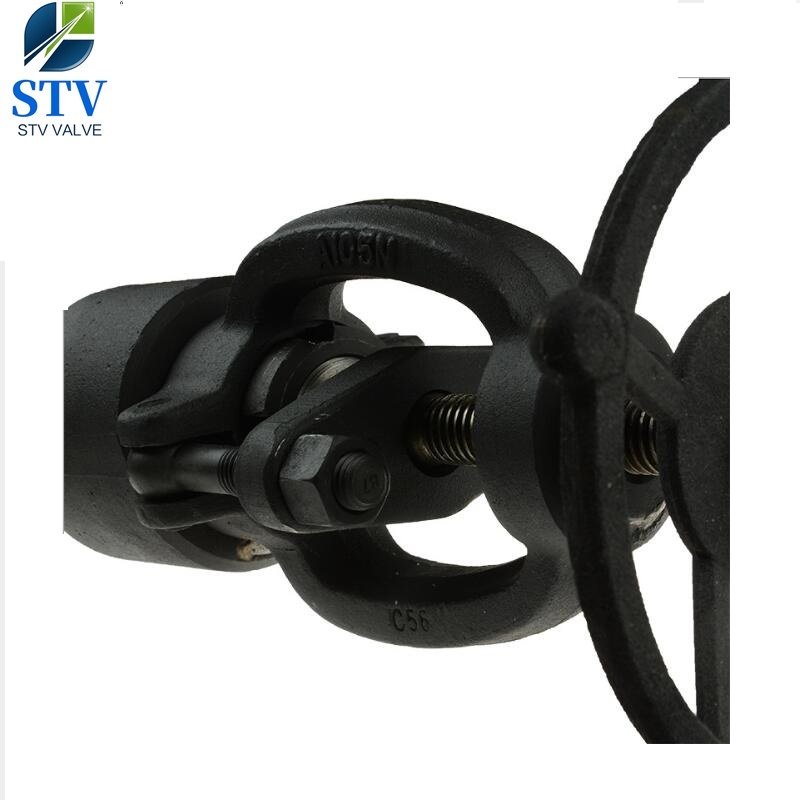

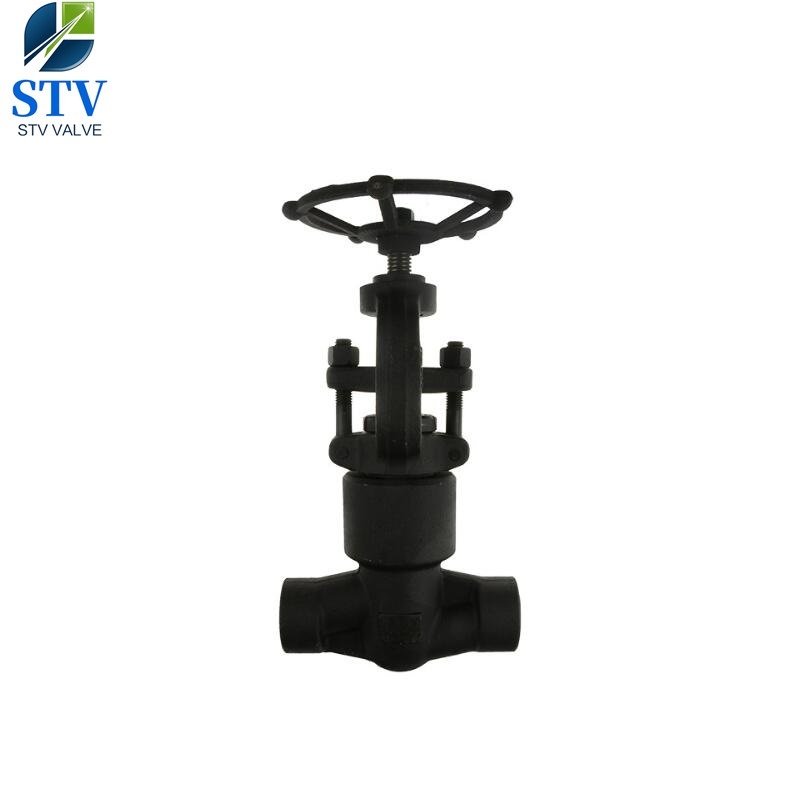

Forged Steel Globe Valve Class 2500

Model:J61Y-2500LB-3/8

Forged Steel Globe Valve Class 2500 is suitable for demanding process applications and industries where the isolation of steam, gas or liquid is required.

The valve designed to API 602 and tested to API 598 has an outside screw and yolk with rising stem. The hand wheel operates the globe valve for both isolation and for throttling applications.

Why use globe valves: these valves provide a positive tight shut off in the horizontal or vertical position for process fluids in pipelines. They also offer a small amount of control and are used to throttle steam, gas or liquids. Easy to operate and the preferred choice over ball valves by engineers to isolate trapping stations.

Typical applications:

Trapping lines and stations
Isolation
Condensate Lines
Before expensive plant equipment
Oil burner lines
Typical Industries:

Boiler Plant fuel line
Recycling facilities
Chemical industry
Steam Plant
Hospitals, schools and HVAC
Key features:
Hand wheel operator
Seal Bonnet,Weld Bonnet,Bolt Bonnet.
Screwed BSP, NPT or Socket Weld.Butt-Weld
Sizes 1/2″ to 2″
Material: A105、LF2、F5、F11、F22、304、316、316L etc.
Temperature range: -29°C to 560°C
Pressure up tp 420bar

STV Valve Technology Group Co., Ltd is a professional leader China 2500LB Globe Valve,API 602 Globe Valve,High Pressure Globe Valve,PSB Globe Valve,Socket Weld Globe Valve,A105N Globe Valve,2 Inch Globe Valve Manufacturer with high quality and competitive price.

Please contact our [email protected] for other materials and details.

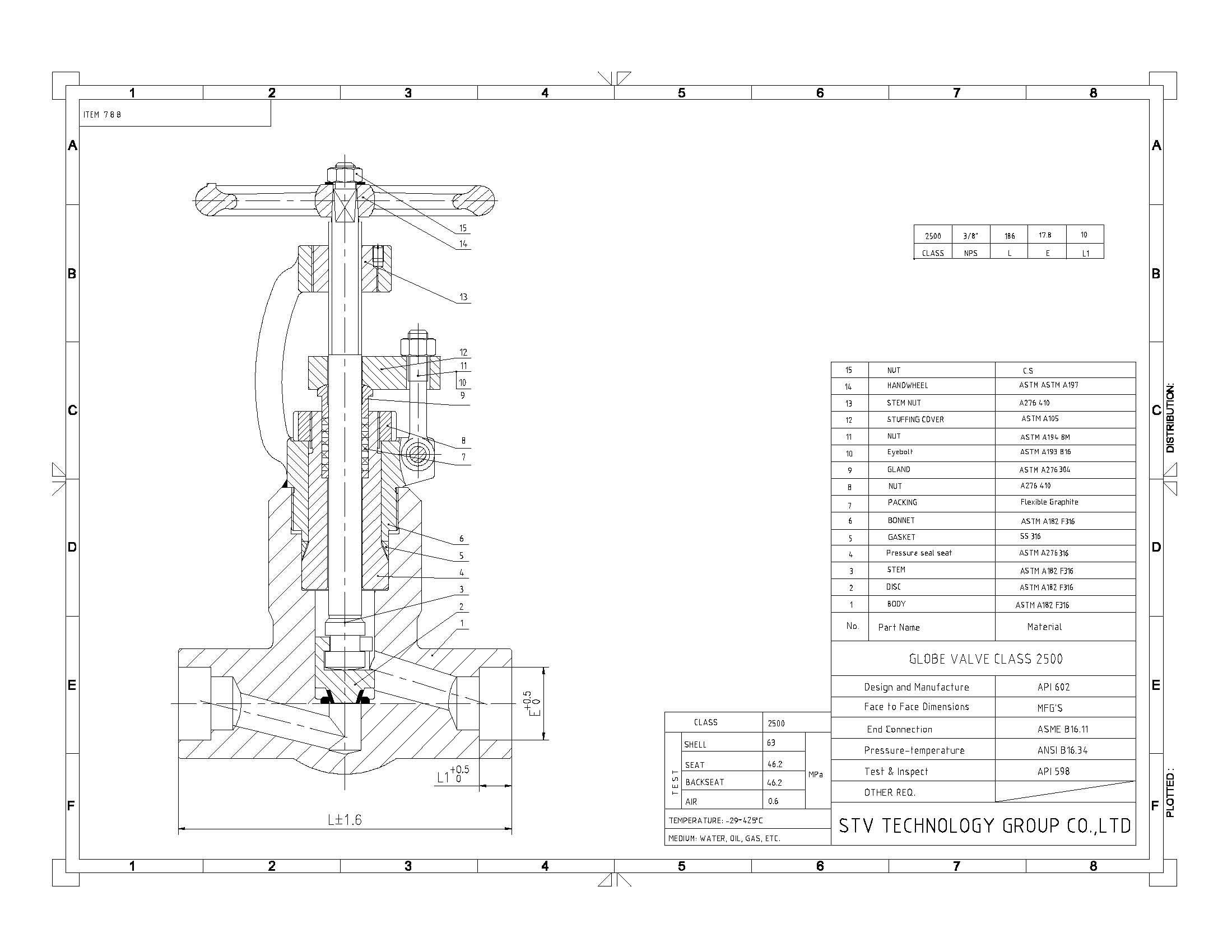

Date Sheet:
Forged Steel Globe Valve Class 2500
