Description
1. Design & Manufacture: API 602
2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
3. Bore Type: Full Port
4. Size Range: 1/2″ to 2″.
5. Pressure Ratings: ANSI 150, 300, 600, 900, 1500 & 2500LBS
6. End Connections: Flanged (RF, RTJ)
Other Ends Also Available: Threaded (Screwed, NPT), Butt weld (BW), Socket Weld (SW).
7. Materials Available in: A105 (N), LF2, F5, F11, F22, F304, F316, F51, F53 or Equivalent;
8. Various Trim Materials Are Available to Suit Different Service Conditions
9. NACE MR 0175 on Request
10.Test and Inspection: API598

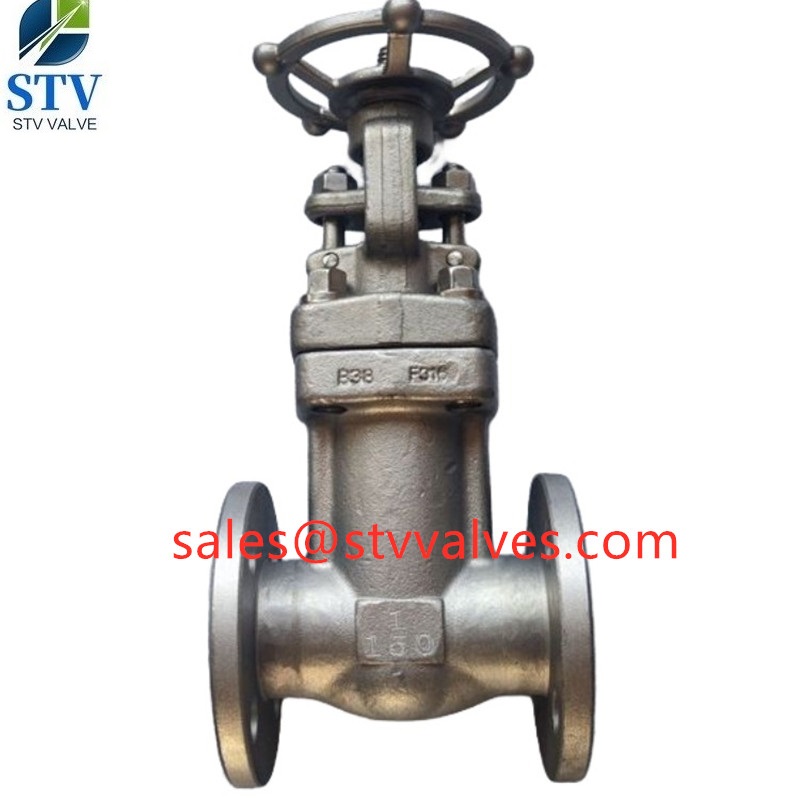

| Product Name | Forged-Steel-Bellows-Seal-Gate-Valve-150LB-F316-1-Inch-RF-End |
| 1. Material | F316, |
| 2. Size | 1″ |
| 4. Port | Reducer Port |
| 5. Working Pressure | 150LB |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~350ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
