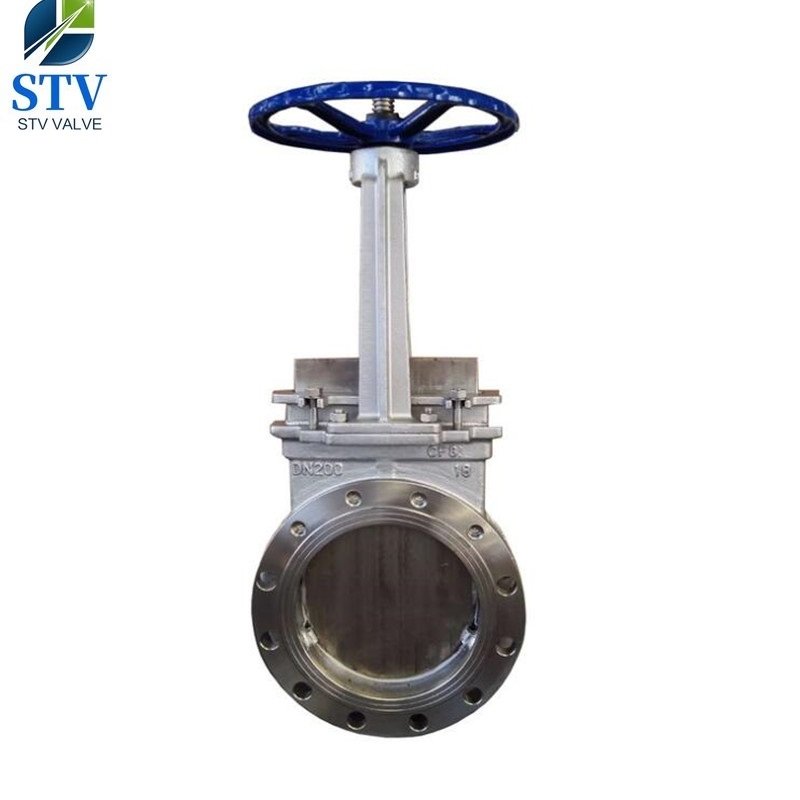

Flange Knife Gate Valve,DIN, PN16,CF8 Body,DN450

Flange Knife Gate Valve,DIN, PN16,CF8 Body,DN450

Model:STV-Z43H-PN16-CF8-DN200

The Flange Knife Gate Valve has compact structure, reasonable design, light material, reliable sealing, light and flexible operation, small volume, smooth passage, small flow resistance, light weight, easy installation and easy disassembly. It can work at a pressure of 0.6MPa-1.6. MPa, normal operation with temperature -29-550 °C. The knife-type gate valve has a shearing function, which can scrape off the adhesive on the sealing surface and automatically remove debris. The stainless steel gate can prevent sealing leakage caused by corrosion.

Flange Knife Gate Valve are widely used in coal preparation, slag discharge, urban sewage treatment, food, paper, medicine, petroleum, chemical and other oil, water, steam pipelines.

STV Valve Technology Group Co., Ltd is a professional leader China Knife Gate Valve,Flange Knife Gate Valve,DIN standard Knife Gate Valve,CF8 Flange Knife Gate Valve,China Flange Manual Knife Gate Valve Manufacturer with high quality and competitive price.

Please contact our [email protected] for other materials and details.

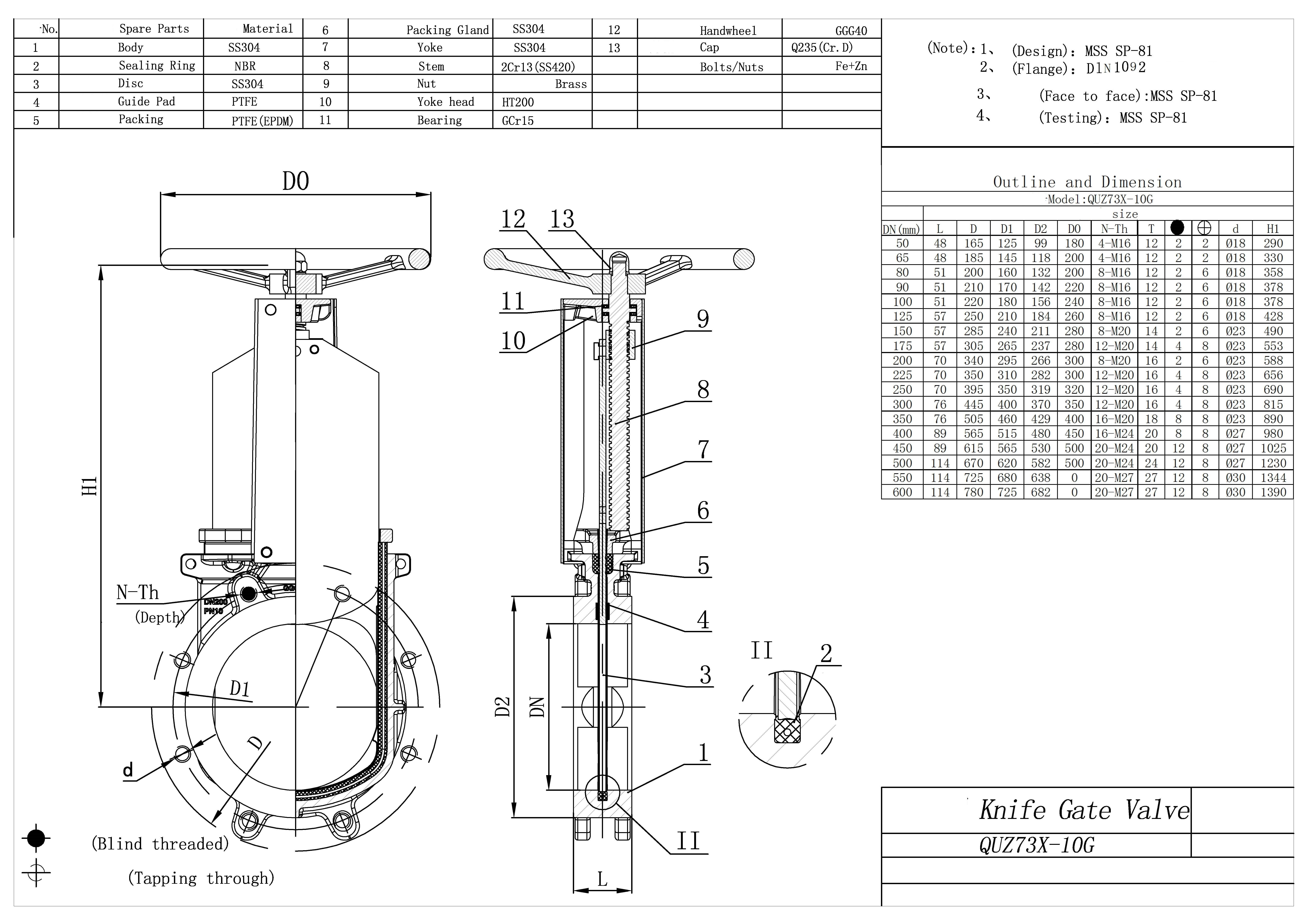

Date Sheet:Flange Knife Gate Valve,DIN, PN16,CF8 Body,DN450

Categories: , Tags: , , , ,

Description

Features of Flange Knife Gate Valve:
Unidirection design
Full flanged cast steel body
Self-cleaning mechanism
Rising stem, outside screw & yoke
Yoke type: Plate or Casting

Applicable Standards of Flange Knife Gate Valve:
a) Design & Manufacture: MSS SP-61, ASME 16.34
b) Face to Face: MSS SP-81, ASME B16.10, EN 558
c) Connection End: ASME B16.5, EN 1092, JIS B2220
d) Test : MSS SP-81

Sizes: 2″ – 48″ or DN 50 – DN 1200
Pressure Rating: Class150 or PN6 – PN16
Materials of valve body: WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, etc.
Operation: Manual, Gear, Pneumatic, hydraulic and Electric actuator

Product Name Flange Knife Gate Valve,DIN, PN16,CF8 Body,DN450
1. Material CF8
2. Size 14”
4. Port Full Port
5. Working Pressure PN16
6. Connection Ends RF
7. Working Temp. -29~425ºC,
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Operated Handwheel
10. Inspection & Testing According to API598
Shipment
Delivery Time 30 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms Exw, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
30% prepayment, 70% balance paid before shipping
Country of Origin Wenzhou city, China
Production Capacity 6000 ton/year
MOQ 1 PCS/size
