Description

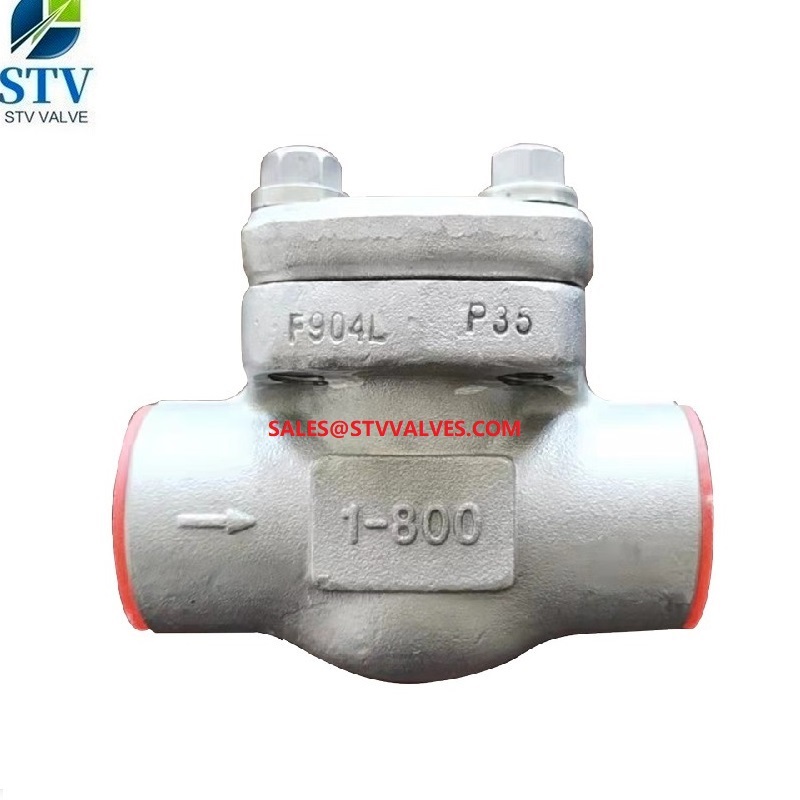

F904L Lift Check Valve,800LB,1 Inch,SW End
Design: API 602
Body: F904L
Nominal Size: 1 Inch
Nominal Class: 800 LB
End Connection: SW
Face to Face: Manufacture
Test and Inspection: API 598
Nominal Diameter: 1/4 Inch – 4 Inch
Design Temp.: -196℃ – 573℃
Design Pressure: Class 150 LB – Class 2500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: X
Application: Power Station, Petroleum, Chemical Engineering
| Product Name | F904L Lift Check Valve,800LB,1 Inch,SW End |
| 1. Material | F904L |
| 2. Size | 1” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 800LB |
| 6. Connection Ends | SW End |
| 7. Working Temp. | -29~300ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | X |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
