Description
1. Screw bonnet, Bolt bonnet,
Butt-Welded bonnet
2. Full port and Reducing Port
3. A threaded and Pressure seal bonnet
4. Materials conform to ANSI/ASTM
Standard: 1. Design Standard: API602,BS5352
2. Material Pressure-Temperature Standard:ASME B16.34
3. Face to Face Dimension Standard:ASME B16.10
4. Flange dimension standard: ASME B16.5
5. Socket Welded Ends conform to ANSI B16.11
6. Screw ends conform to ANSI B1.20.1
7. Inspection and Test Standard:API598
Size:1/4″~2”
Pressure Rating:Class 150-2500LB
Body material:ASTM A105, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F51, ASTM A182 F91, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L, etc..
End connection: NPT,BW,SW,RF,RTJ.
Working temperature:-29℃～650℃

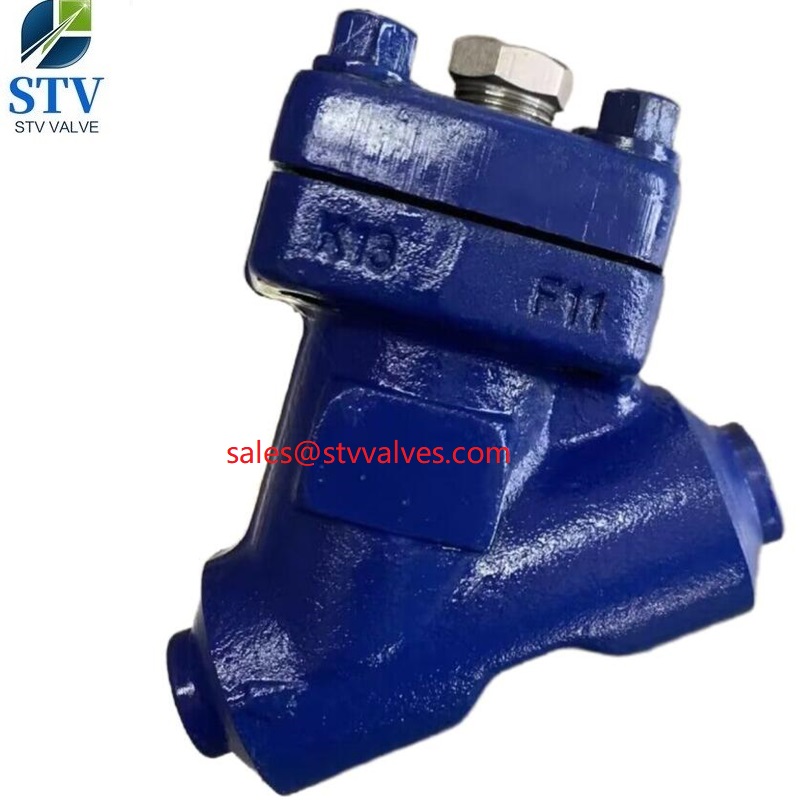

| Product Name | F11 Forged Steel Y Strainer,150LB, Butt Weld End |
| 1. Material | F11 |
| 2. Size | 1” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 150lb |
| 6. Connection Ends | BW |
| 7. Working Temp. | -29~520ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
