Description
API 602 / ASME B16.34
Spiral wound gasket with SS304/graphite or SS316/graphite
Solid wedge
Outside screw & yoke (OS&Y)
Two-piece self-aligning gland
Compact and sturdy designs for high pressure-temperature service
Replacement of hand wheel without affecting the gate position.
Material of the body/bonnet: ASTM A105/F316/F316L/F304/F304L/F11/F22/
Valve Rating : CLASS 800 (PN130) & CLASS1500 (PN260)
Port Size : Standard Port / Full Port
Size Range : 1/4″ – 4″ (8mm – 100mm)
End Connections : Threaded (NPT/BSPT/DIN), Socket-welding
Working Temperature : (For A105) -29°C~425°C;
Service Application : Hydraulic,Steam,Chemical,Oil/Gas
Power,Petrochemical,Marine,Mining
Construction

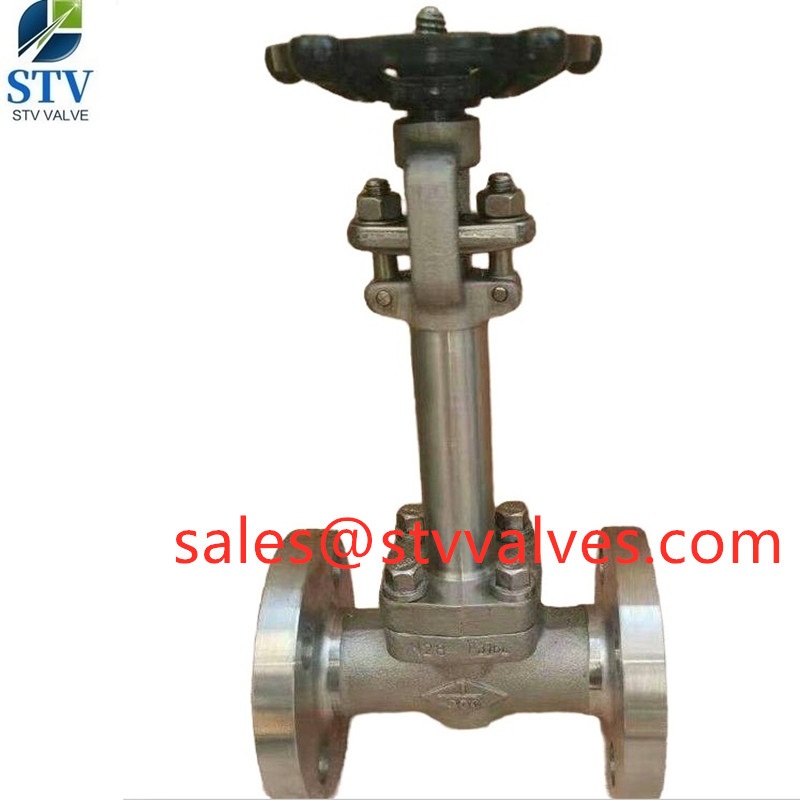

| Product Name | Extension Stem Gate Valve,F316,1 Inch,300LB,RF End |
| 1. Material | F316 |
| 2. Size | 1” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 300LB |
| 6. Connection Ends | RF End |
| 7. Working Temp. | -29~600ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
