Description
Maintenance of T-Basket Filter
- The key part of this kind of the filter is the filter core.The filter core consists of the filter frame and stainless steel wire mesh.The SS wire mesh belongs to the wear parts.It needs a special protection.
- After the filter has worked for some time,it will precipitates a certain amount of the impurities in the filter core.Then the pressure will be increased and the flow speed will be reduced.So we should clean the impurities in the filter core in time.
- When we clean the impurities,we should be careful to assure the SS wire mesh in the filter core will not be deformed or damaged.Otherwise,when you reuse the filter,the impurities of the filtered liquid will not reach to the designed requirement.And the compressors,pump or the instruments will be destroyed.
- Once the SS wire mesh has been found to be deformed or damaged,we should replace it immediately.

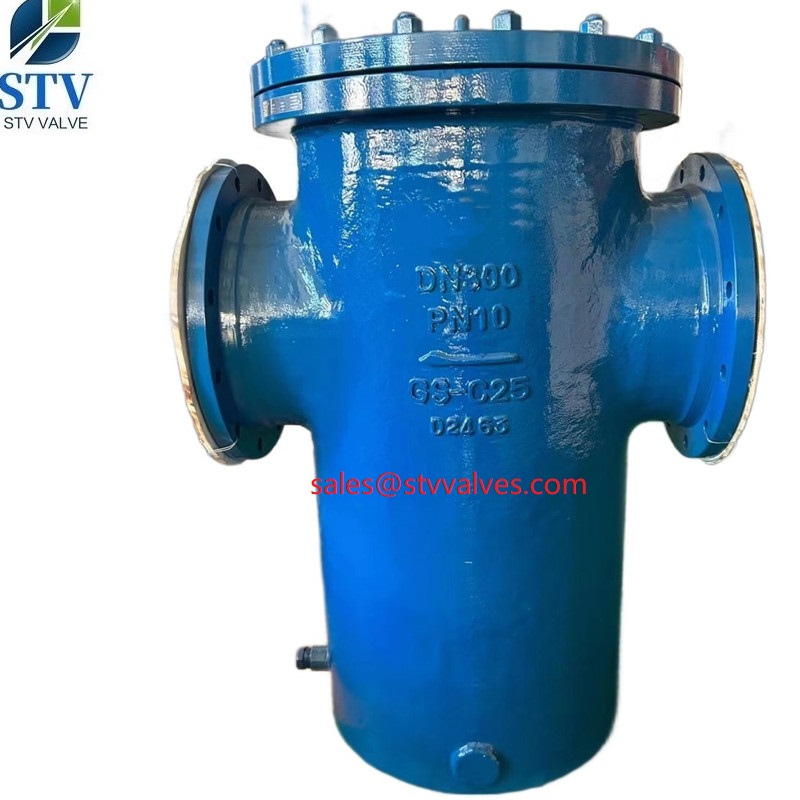

Basket Strainer
Brief introduction:
The strainer may be used on all types of pipelines to collect granulated foreign substances and contaminants collected. It can improve the clearance in the medium, and prolong the life of valves and other equipments. It is suitable for water, petroleum and steam.
Main part & material
Body:Carbon Steel
Mesh: stainless steel
Technical Specification
Nominal diameter:15~500mm
Nominal pressure:0.6-5.0Mpa
We supply cast and welded type basket strainer
1) Sizes: 1/2 – 24″
2) Pressure rating: 150lb, 300lb, 600lb
3) Suitable temperature: -196oC – 600oC
4) Suitable medium: Water, gas, oil, steam etc.
5) Body material: A106/WCB, WCC, WC6, WC9, LCB, LCC, SS304/CF8, SS316/CF8M, 304L/CF3, SS316L/CF3M
6) Screen: Stainless steel (SS304/SS316)
7) End connection: FF, RF, THD, BW
8,Form of inlet/outlet:Flange/Inner wire/Outer wire/Quick installation
9,Form of cover compression:Bolt/Quick bolt
10,Suitable viscosity(cp):1-30000
11,Form of basket:Punching mesh/Single-layer mesh/Composite mesh
