Description

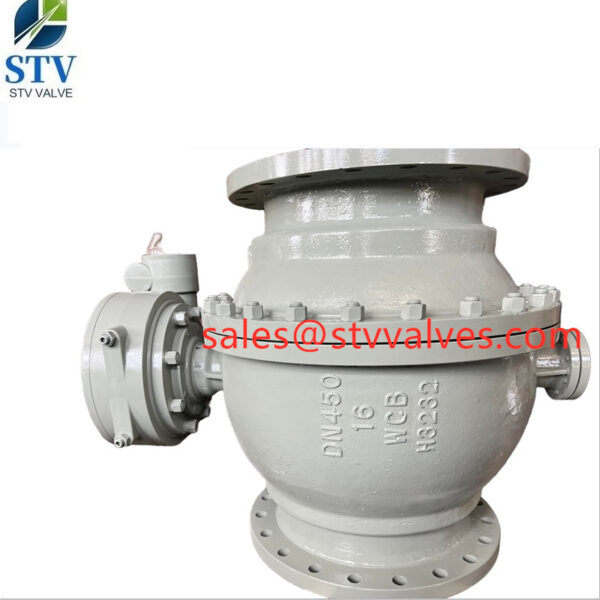

ChinaCast Trunnion Mounted Ball Valve Manufacturer, Factory and Supplier.
Cast Trunnion Mounted Ball Valve Specification:
Material:A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
Sealing:Metal or soft
Pressure: ASME Class150~2500LBS (PN16~PN260)
Size: NPS 2”~48” (50mm~1200mm)
Connection: RF, RTJ, BW
Operation: Hand lever, Gearbox, Pneumatic, Electric
Cast Trunnion Mounted Ball Valve Standard:
Design: API6D ,ASME B16.34 ,BS5351,ISO14313
Fire safe:API607,API 6FA,
Face-to-face: API 6D/ ASME B16.10
Flanged Ends:ASME B16.5/B16.47 /MSS SP-44/DIN/EN1092-1/GOST33259/JIS
BW Ends:ASME B16.25
Inspection Test :API 598,API6D,ISO5208,EN12266-1
Temperature Ratings :ASME B16.34
Certificate:EN 10204 type 3.1
Markings: MSS SP25
Cast Trunnion Mounted Ball Valve Features:
Bolted body or welded body, reduced bore or full bore, floating or trunnion ball, bi-direction flow, NACE MR-01-75, low torque, full bore or reduced bore piggable, and cryogenic designed metal seat ball valve with low temperate test and low fugitive emission test also available.
Zero leakage high performance metal to metal seat sealing.
High temperature application designed for solid particles.
