Description
Design and Manufacture:DIN 3840 / BS EN 1868
Face to face:DIN 3202/BS EN558-1
Flanged ends: DIN 2543/BS EN1092-1
Inspection and test： DIN 3230/BS EN12569
Pressure: PN10~PN160
Size: DN40~DN900
Material:GS-C25,1.0619,1.4803,1.4408,WCB,LCB,CF8,CF8M,CF3,CF3M,CF8C,etc.

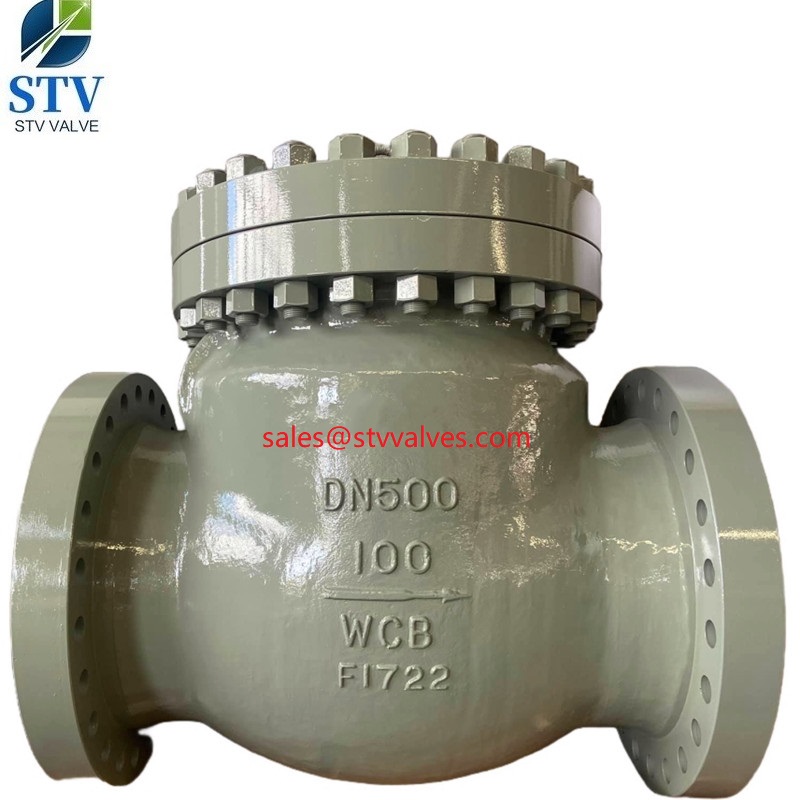

| Product Name: | DIN Swing Check Valve,WCB,DN500 ,PN100,Flange End |
| 1.Material: | WCB |
| 2.Size: | 20″ |
| 3.Port: | FULL |
| 4. Working Temperature: | -29 °C-425 °C |
| 5.Connetion End: | RF |
| 6.Working Pressure: | PN100 |
| 7.Suitable Medium: | Water, Natural Gas, Oil and some corrosive liquid |
| 8.Operated: | / |
| 9. Inspection & Testing | According to DIN 3230 |
| Certificate: | ISO, CE/API 6D |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
