Description
1. Standard compliance: API6D, API 608 ANSI B16.34 BS5351
2. Face to face: ANSI B16.10
3. RF, RTJ Flange Dimensions: ANSI B16.5 for 24″
4. Butt Weld End: ANSI B16.25
5. Pressure Rating: ANSI B16.34
6. Materials: CF8M (SS316), CF8 (SS304) CF3M (SS316L), CF3 (SS304L), WCB,DIN 1.4408/1.4308/1.0619
7. Suitable Temp.: -196ºC~550ºC
8. Suitable Medium: Water, Natural Gas, Oil, etc.
2.API DIN JIS GB Stainless Steel Flange Full Flow Reduced Flow Ball Valve Features:
1. Investment Casting Body (2″~48″)
2. Trunnion Mounted Ball Designed
3. Anti-Blow-Out stem
4. Metal to Metal Seat (Option)
5. Anti-Static Device
6. Fire Safe Designed (Option)
7. Test and Inspection: API 598 EN12266
3.API DIN JIS GB Stainless Steel Flange Full Flow Reduced Flow Ball Valve Operator:
1. Lever
2. Worm Gear Actuator
3. Electric, Pneumatic Actuator

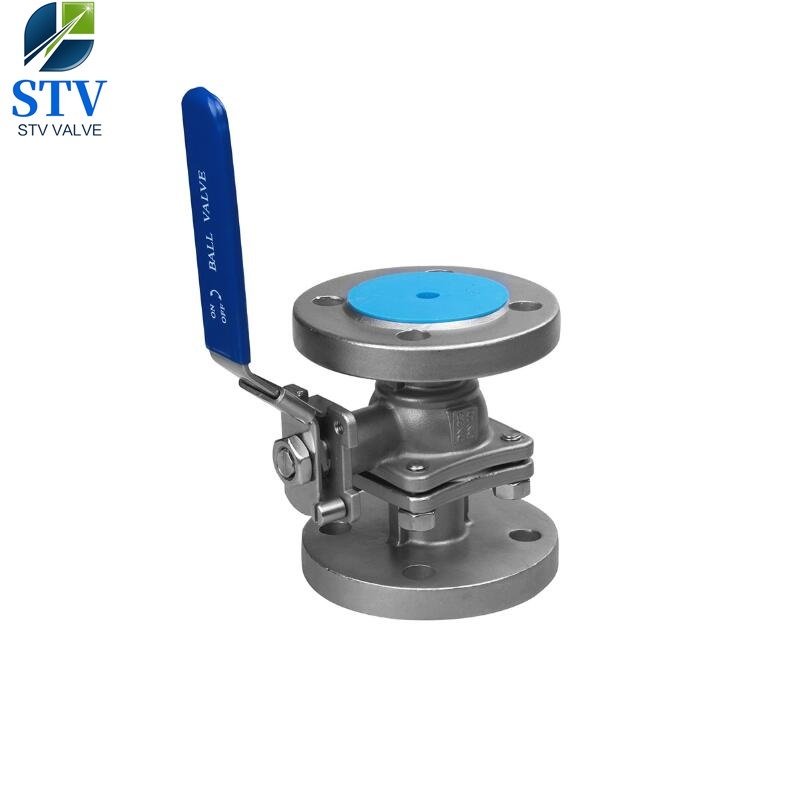

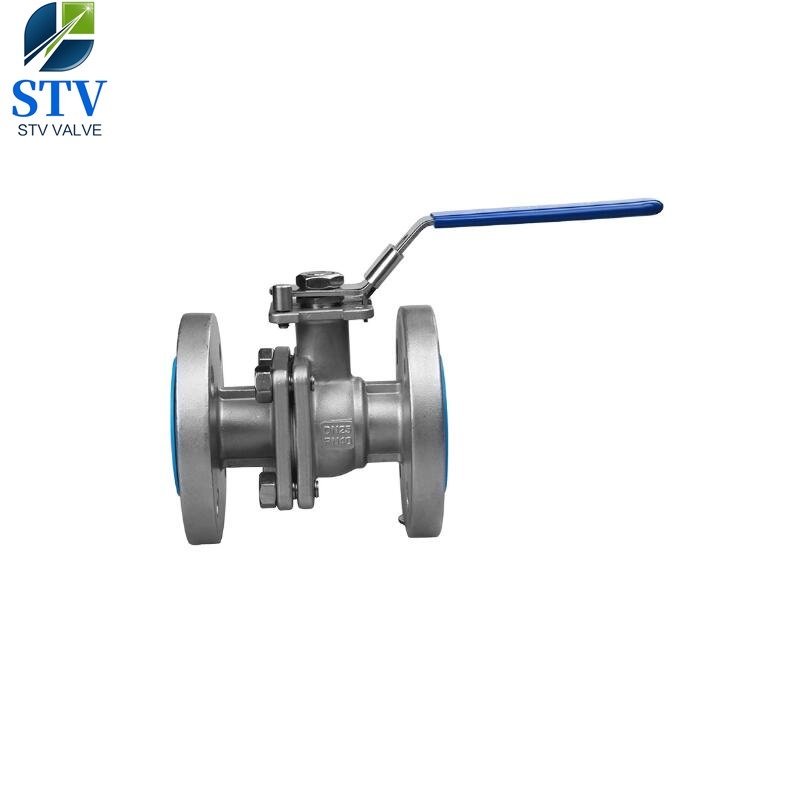

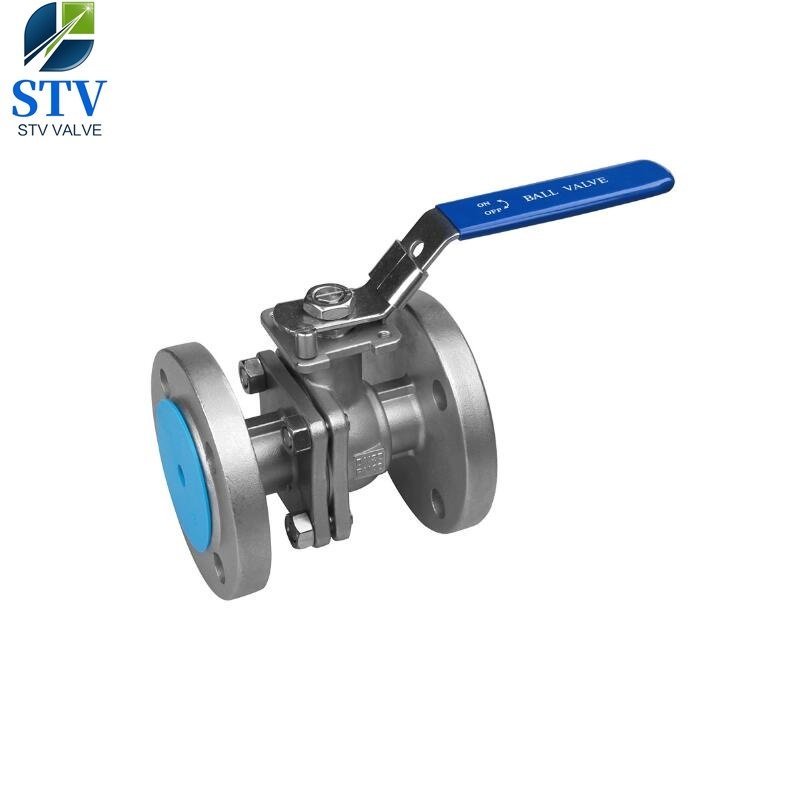

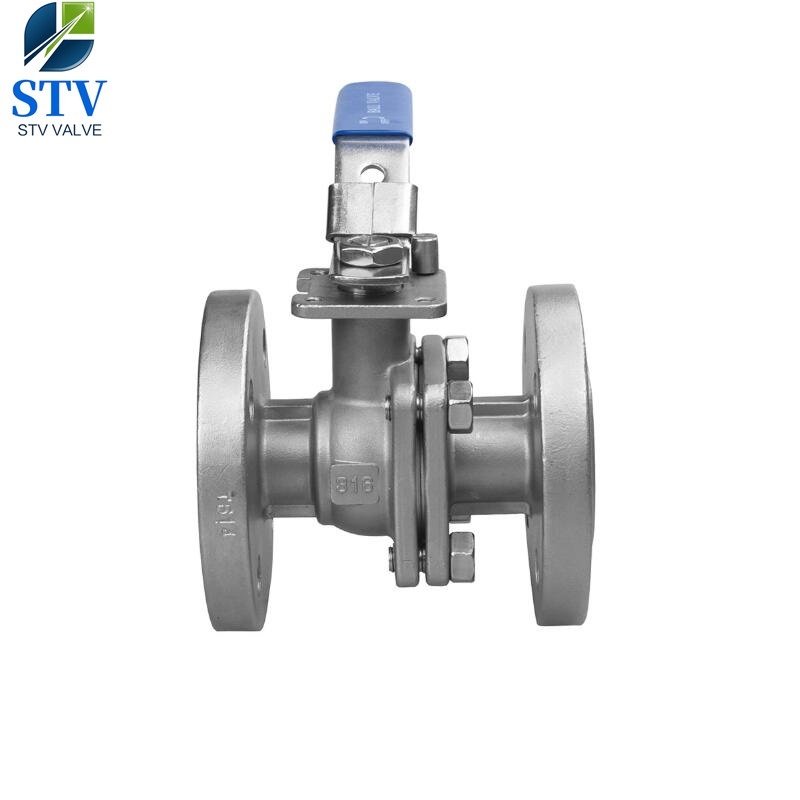

| Product Name | DIN Flange Ball Valve,PN16,CF8M,With ISO5211 Direct Mounting Pad |
| 1. Material | 316 |
| 2. Size | 3” |
| 4. Port | Full Port |
| 5. Working Pressure | PN16 |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~180ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
