Description

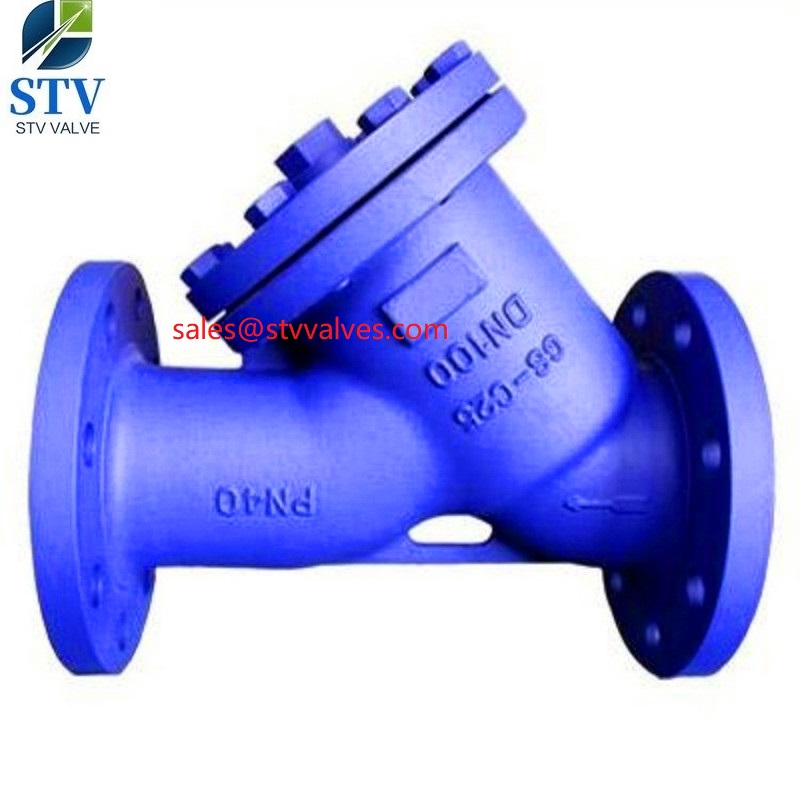

Product name: DIN 3352 Y Type Strainer, WCB, DN100, PN40, RF Ends
Design: DIN 3352.
Material: ASTM A216 WCB.
Nominal size: 4 Inch.
Nominal pressure: PN40.
End Connection: RF.
Face to face: EN558-1/line 1.
Test and inspection: EN12266-1.
Product Range：
Body material: GS-C25、1.7363、1.4308、1.4408、1.4306、1.4301、WCB、LCB、WC6、WC9、CF8、CF8M、CF3、CF3M.
Normal diameter: 1/2 – 48 Inch (DN15 – DN1200).
End connection: BW, Flanged.
Pressure range: 150 – 2500 LB (PN16 – PN420).
Working temperature: -196℃ – +573℃.
| Product Name | DIN 3352 Y Type Strainer, WCB, DN100, PN40, RF Ends End |
| 1. Material | WCB |
| 2. Size | 4” |
| 4. Port | Full Port |
| 5. Working Pressure | PN40 |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | / |
| 10. Inspection & Testing | API 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
