Description
Design Features
1. Full port or conventional port
2. Outside screw and yoke(OS&Y)
3. Two piece self-aligning packing gland
4. Bolted bonnet with spiral wound gasket,threaded and seal welded bonnet or threaded and pressure seal bonnet
5. Integral backseat
6.Available in ANSI 150-2500LB, sizes: 1/4″ to 4″.
7.Materials:A105N,LF2,F304,F316,F11,F22,F5,F91,Alloy Steel Ect.
8.Temperature range: 0°C to 600°C.
9.Port: Reducer Port and Full Port.
10.End Connect；NPT,BW,SW,RF,RTJ.

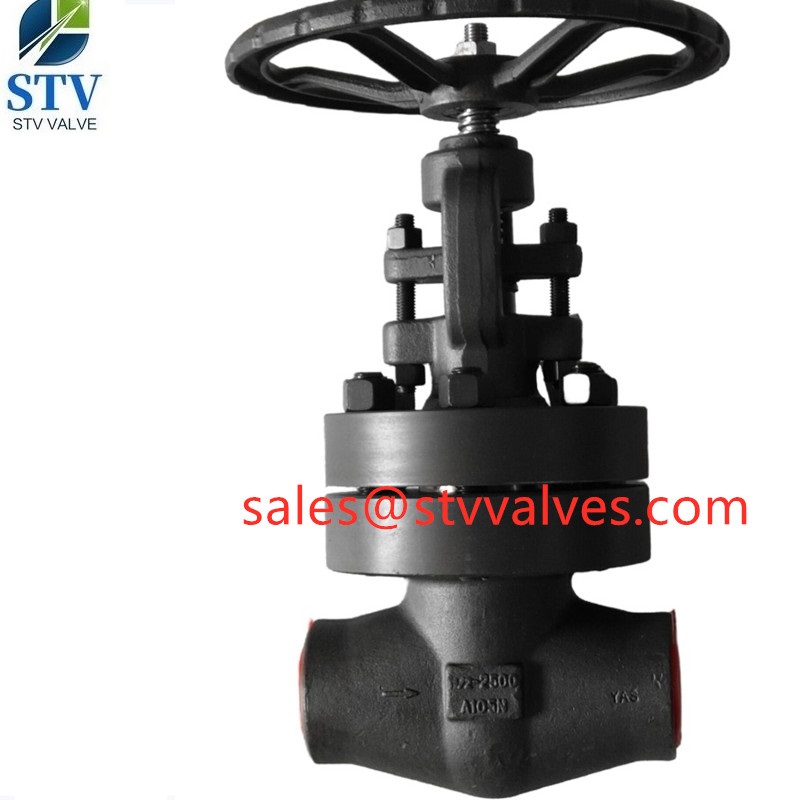

| Product Name | Class 2500 Gate Valve,Bolt Bonnet,2 Inch,API 602,SW |
| 1. Material | A105N |
| 2. Size | 2” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 2500LB |
| 6. Connection Ends | Socket Weld End |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
