Description

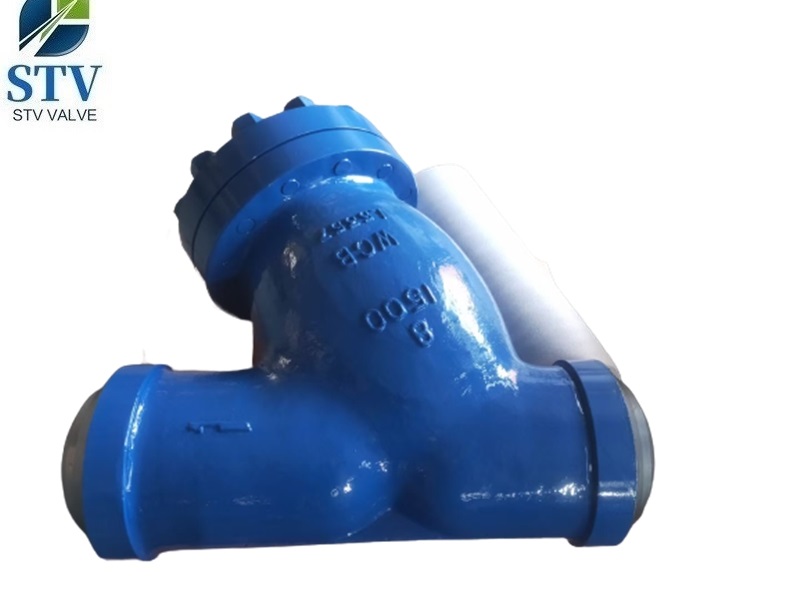

Product name: Class 1500 Y Strainer, ASTM A216 WCB, 8 Inch, ASME B16.34, BW End
Design: ASME B16.34.
Material: ASTM A216 WCB.
Nominal size: 8 Inch.
Nominal pressure: Class1500 LB.
End Connection: BW.
Face to face: ASME B16.25.
Test and inspection: API 598.
Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 – 48 Inch (DN15 – DN1200).
End connection: BW, Flanged.
Pressure range: 150 – 2500 LB (PN16 – PN420).
Working temperature: -196℃ – +573℃.
| Product Name | Class 1500 Y Strainer, ASTM A216 WCB, 8 Inch, ASME B16.34, BW End |
| 1. Material | WCB |
| 2. Size | 8” |
| 4. Port | Full Port |
| 5. Working Pressure | 1500LB |
| 6. Connection Ends | BW |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | / |
| 10. Inspection & Testing | API 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
