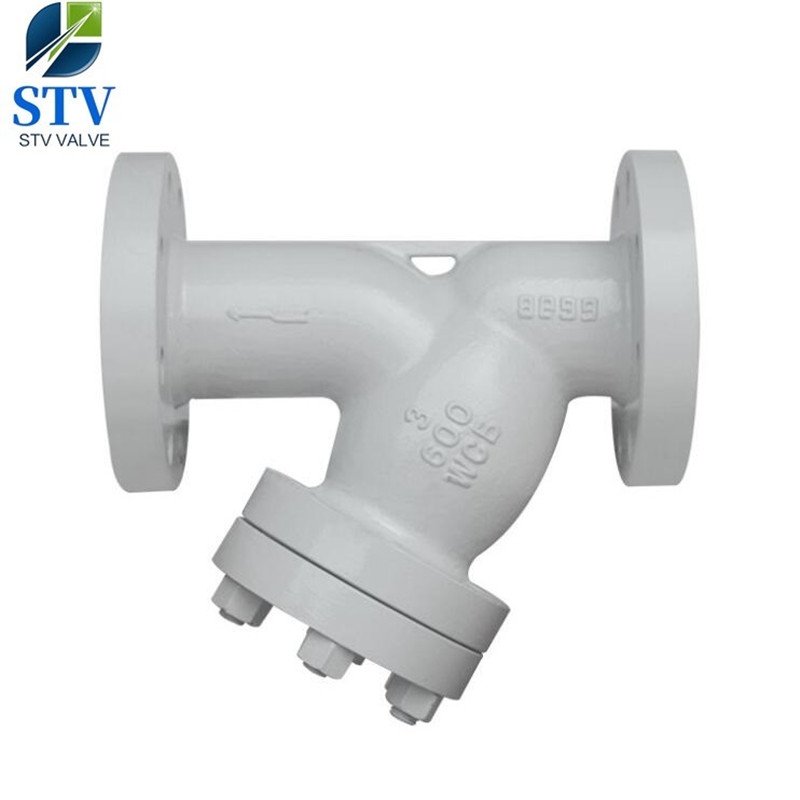

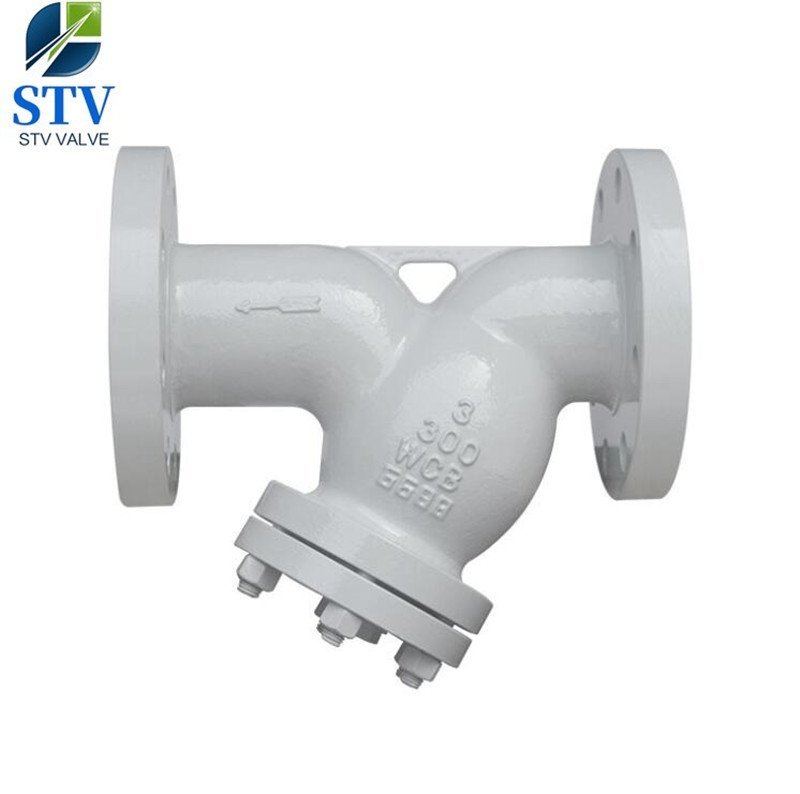

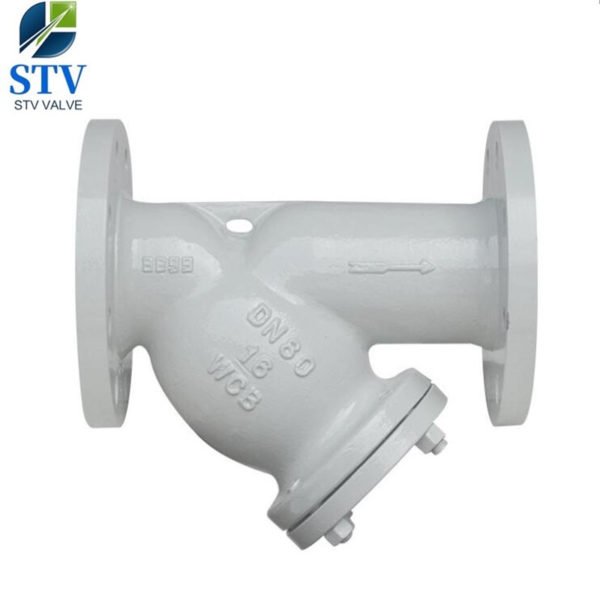

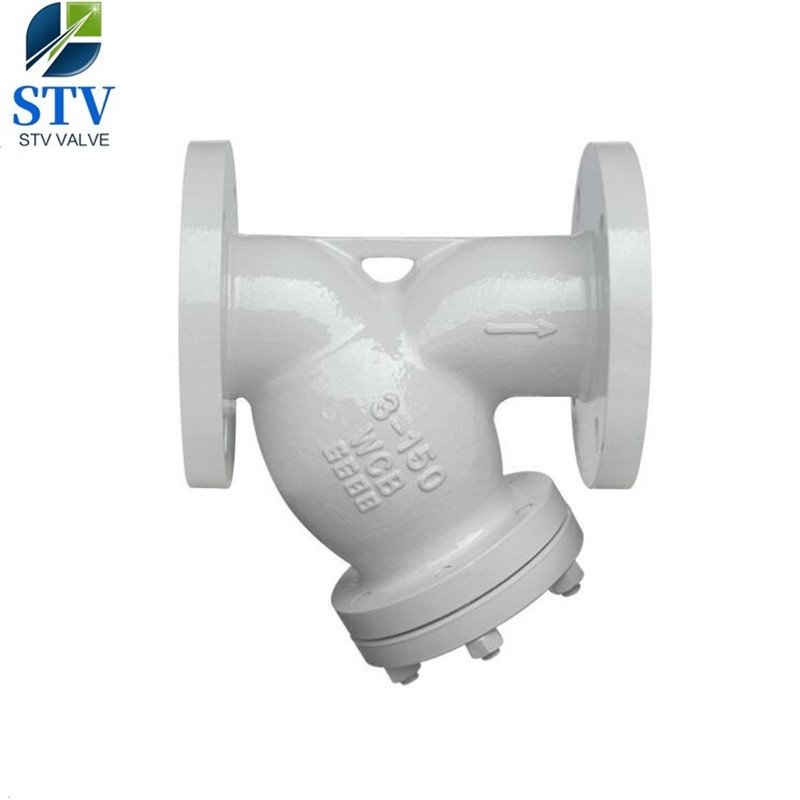

Cast Steel Y Type Flange Strainer

Model:GL41H-150LB

Our Cast Steel Y Type Flange Strainer is compact, easy to clean and features a removable drain plug and Stainless Steel screen mesh. It provides an economical solution and is recommended for applications where damage to valves and other related mechanical equipment needs to be avoided.

Pipeline debris including dirt and scale is often the cause of failure, damage, energy loss and a reduction in productivity.

Key features:
Available in PN16/40 or ANSI  flanged,JIS Flange
sizes: 1/2″ to 24″
Temperature range: -29 to 560°C .
Pressure rating: DIN PN16-PN40 or ANSI 150LB-1500LB,JIS10K-30K
Body Material,WCB,CF8,CF8M,WC6 AND WC9 Etc.
The installation of a strainer is always recommended to ensure trouble-free service

STV Valve Technology Group Co., Ltd is a professional leader ChinaAnsi 150 flanged strainer,ANSI flange Filter,cast steel y type strainer,flanged strainer,Y-type strainer,jis 10k flange y-strainer,Carbon Steel Y Strainer Manufacturer with high quality and competitive price.

Please contact our [email protected] for other materials and details.

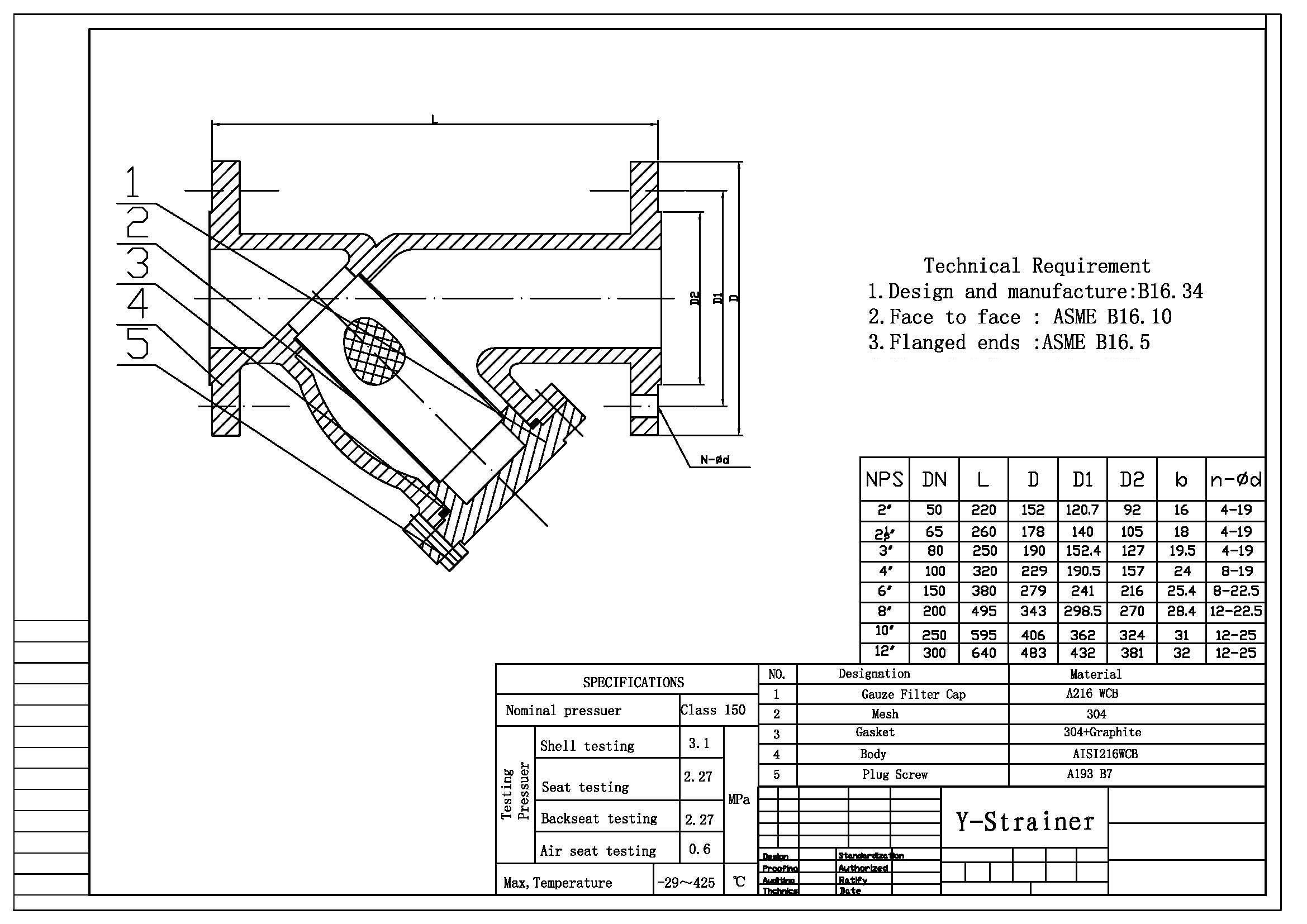

Date Sheet:
Cast Steel Y Type Flange Strainer
