Description
China trunnion ball valve manufacturer,factory,company and supplier for WCB A105 trunnion ball valve 24 inch,which is trunnion mounted structure, 3PC split body,full bore or reduced bore with different material and different pressure class.
Cast Steel Trunnion Ball Valve specification

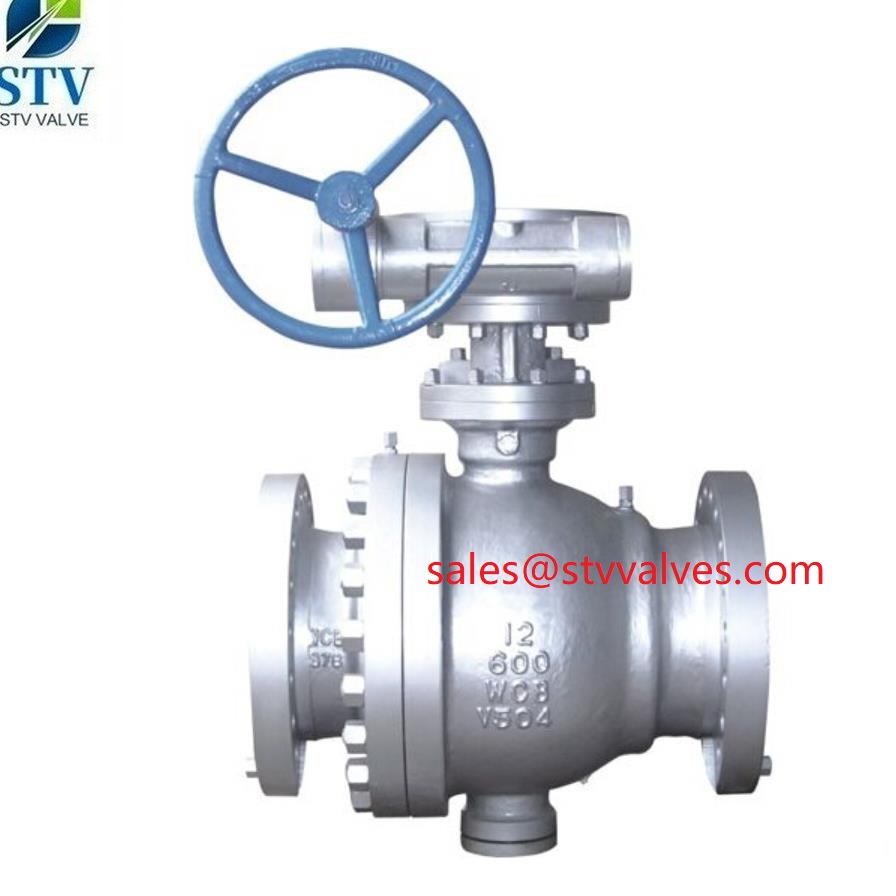

Product Name | Cast Steel Trunnion Ball Valve,12 Inch,600LB,API 6D |
1. Material | A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC |
2. Size | 2”~48” ( DN50~DN1200) |
4. Port | Full Port |
5. Working Pressure | 150LB~2500LB |
6. Connection Ends | Flange |
7. Working Temp. | -196ºC~450ºC |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Seal | PTFE, RPTFE, PPL |
10. Locking | Option |
11. Inspection & Testing | According to API598 |
Cast Steel Trunnion Ball Valve feature
Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8″ & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic
Cast Steel Trunnion Ball Valve standard
Design And Manufacture : ASME B16.34/API 6D
Valve Structural Length : ASME B16.10
Flange Connection Dimension : ASME B 16.5
Valve Check Up And Manufacture Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
