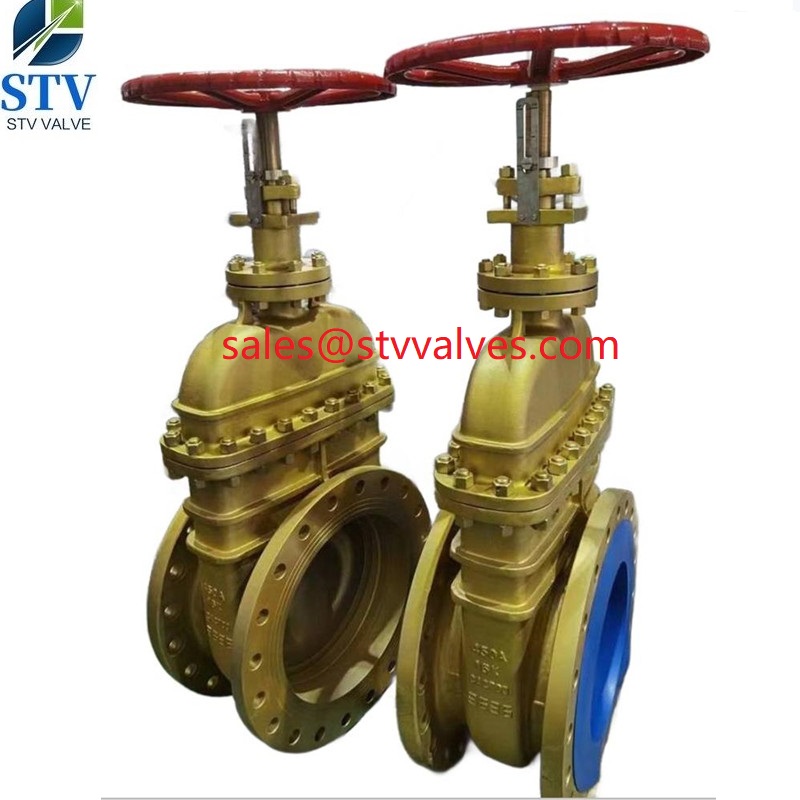

Description
1. Design & Manufacture: JIS B2073 B2083
2. OS&Y, Bolted Bonnet, Flexible Wedge Design
3. Valve Size: DN50-DN1500(2″-60″)
4. Pressure Ratings: ANSI 150,300,600,900,1500,2500
5. End Connections: Flanged, RF
6. Valve Materials: Carbon Steel A216 WCB,Stainless steel A351 Gr CF3M,CF8,CF8M
7. Valve Trim Materials: 13CR, Half Stellite, Full Stellite
8. Actuator: Manual, Handwheel
| ture |
Face To Face |
Flange Dimension | Pressure Temperature Lating | Inspection and Test |
| JIS B2073 B2083 | JIS B2002 | JIS B2210 ~ JIS B2216 | JIS B2073 B2083 | JIS B2003 |
Features:
- Bolted Bonnet or Pressure Seal Bonnet
- Flexible Wedge
- Full Port
- Outside Screw and Yoke (OS&Y), Rising Stem
- Extended Bonnet For Cryogenic Services
- Locking Device Optional
- By pass on Request
- Size Main Dimensions and Weight
Pressure: 10K,16K,20K,40K
Nominal diameters: DN50-DN800
Driving styles: manual/electric/conical gear/pneumatic, etc.
