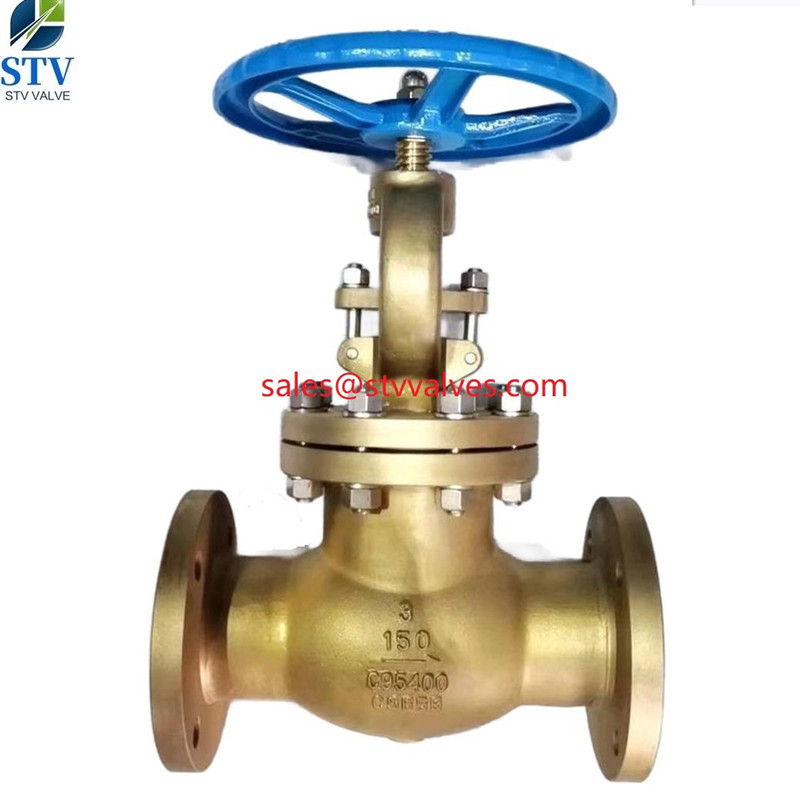

Description
Applicable Standards:
Globe Valve, BS1878/ASME B16.34
Steel Valves, ASME B16.34
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598
Material: C95800,C95400,C83600
Size Range: 2″~36″
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196℃~650℃
Design Description:
– Outside Screw and Yoke
– Bolted Bonnet and Pressure Seal
– Rising stem
– Available with gear operator
– Flange Ends & Buttwelding Ends
– Low torque design, smooth surface stem.
| Brand | STV |
| Structure | Globe |
| Valve Material | cast steel, stainless steel, special alloy, CI, DI etc |
| Valve Type | Globe |
| Valve Test | 100% quantity tested before delivery |
| Valve Guarantee | 18 months after shipments and 12 months after installed |
| Valve Structure | staight |
| Valve Delivery | 15 – 30 days |
| Valve Sample | Sample Available by Didtek Valve |
| Valve Color | Customer request |
| Valve Packing | Plywood Case for Globe Valve |
| MOQ | 1 Set |
| Valve Certificate | API6D/CE/ISO9001/ISO14001 |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail: | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function:
C95400 Globe valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. The wedge travels perpendicular to the direction of the flow. Gate Valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.
Accessories:
Accessories such as gear operators, actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers’ requirements.
