Description

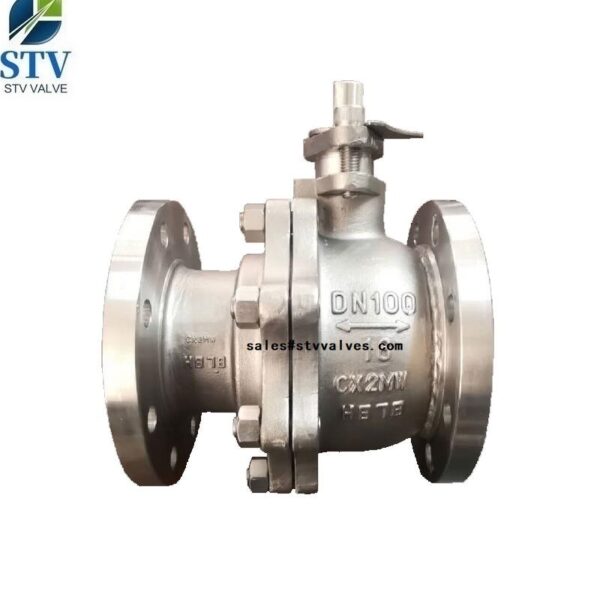

Products Name: ASTM A494 CX2MW Ball Valve,DN100,PN16,Flange End
Design: API 608
Body: ASTM A494 CX2MW Ball Valve
Nominal Size: 4 Inch
Nominal Class: PN16
End Connection: RF Ends
Face to Face: EN 558-1/14.
Body: ASTM A494 CX2MW Ball Valve
Nominal Size: 4 Inch
Nominal Class: PN16
End Connection: RF Ends
Face to Face: EN 558-1/14.
Size: from 1/2″ to 36″
Pressure: 150 – 2500LB
Material: Duplex S31803、Super Duplex S32750、Super Duplex S32760
1A、、2A、3A、4A、5A、6A、1B、1C
CD4MCu、CD4MCuN、CD3MCuN、CE8MN、CD6MN、CD3MN、CE3MN、CD3MWCuN
F51、F53、F55、F6Design and production standard: API 600, API6D and ASME B16.34
Distance between flanges: API 6D, ASME B16.10,API 608
Connected in accordance with standard: ANSI B16.5, ASME B16.47, ANSI B16.25
Test standard: API598
Medium: the valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
Working temperature: from -46ºC or -50ºC (stainless steel constructions) and -29ºC or -46ºC (carbon steel constructions) up to 600℃
| Product Name | ASTM A494 CX2MW Ball Valve,DN100,PN16,Flange End |
| 1. Material | A494 CW12MW |
| 2. Size | 4” |
| 4. Port | Full Port |
| 5. Working Pressure | PN16 |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~120ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
