Description

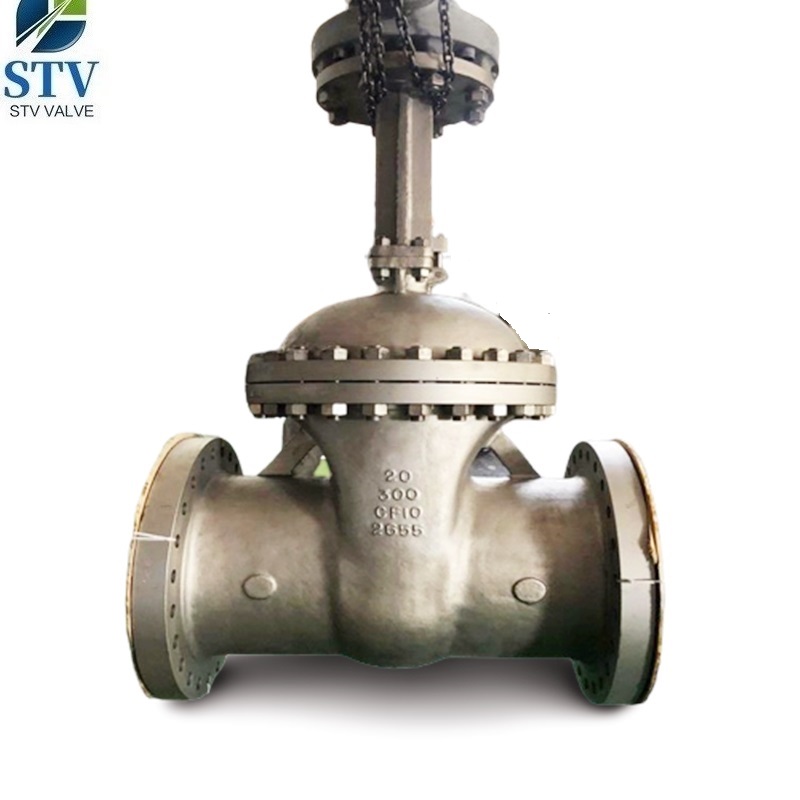

Product name: ASTM A351 CF10 Gate Valve,300LB,20 Inch,API 600,RF End
Design: Api 600.
Material: CF10
Nominal size: 20 Inch.
Nominal pressure: Class300 LB.
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Connections: Flanged, Threaded, Socket welded, ButtWeld
Pressure rating: PN 1.0 to 25 Mpa, Class 150 to 2500
Size: DN15 to 200mm, NPS 1/4″ to 20″
Temperature: -198°c to +450°c
Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352
Face to face (end to end): ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
Flanged connection: 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
Test and inspection: API 598, API 6D, DIN 3230
Butt welded end: ANSI B16.5
Parts and Materials:
Body: Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Bonnet, Gate: Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,
WC9, C5, C12, LCB, CF3M, Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5
Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy,
Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel
Gland Packing: Graphite, PTFE
End Connections: Flanged, Socketweld, Buttweld
Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated
| Product Name | ASTM A351 CF10 Gate Valve,300LB,20 Inch,API 600,RF End |
| 1. Material | CF10 |
| 2. Size | 20” |
| 4. Port | Full Port |
| 5. Working Pressure | 300lb |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~200ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | / |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
