Description
Design and Manufacture： API600,ASME B16.34,API 6D
Inspection and Test：API598,API600 or API 6D
End Flange Dimension：ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS＞24)
BW end Dimension：ASME B16.25
Face to Face and End to End：ASME B16.10
Pressure-temperature ratings：ASME B16.34
Wall Thickness Dimension：API 600,BS 1868
Product Range
Body material: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, , LCB, WC6, WC9, C12, C5
Nominal diameter:1/2″~48″(DN15~DN1200)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-196℃~+560℃

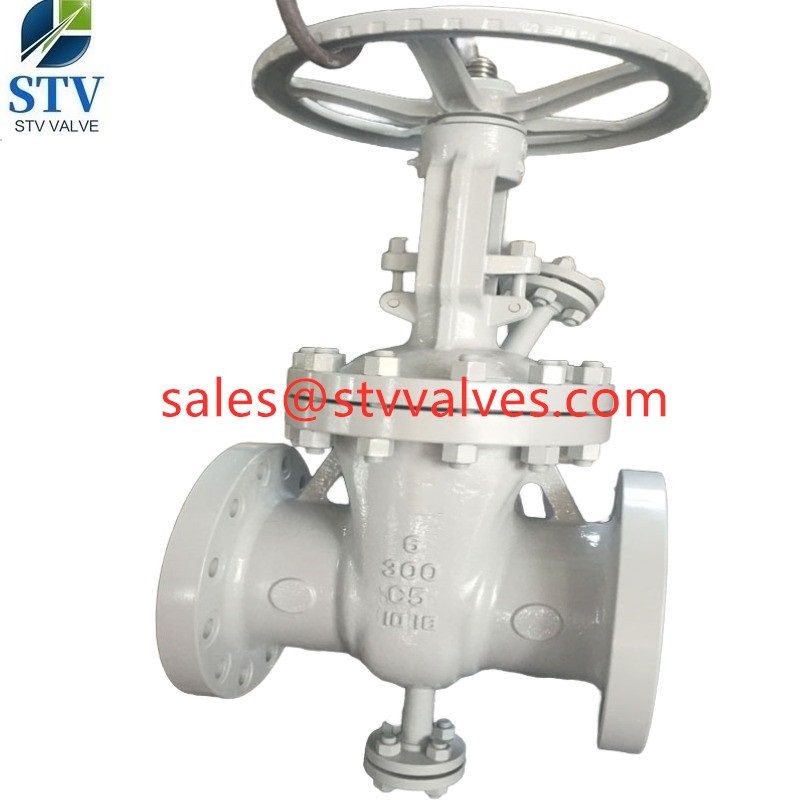

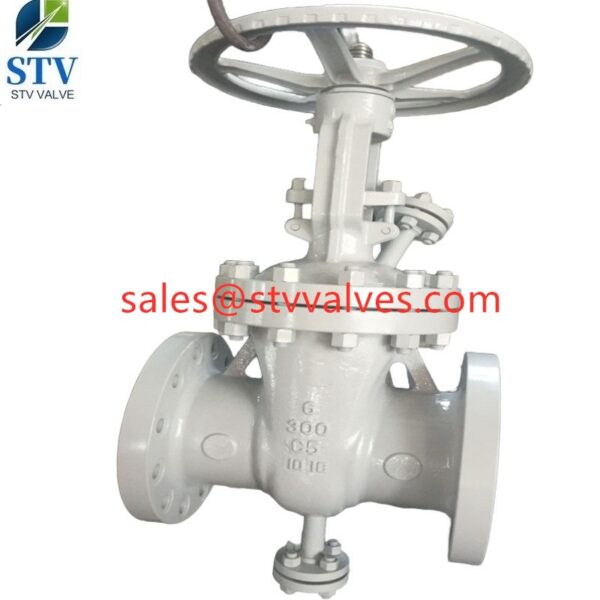

| Product Name: | ASTM A217 C5 Gate Valve,6 Inch,Class 300 LB,RF,API 600 |
| 1.Material: | C5 |
| 2.Size: | 10″ |
| 3.Port: | FULL |
| 4. Working Temperature: | -29 °C-600 °C |
| 5.Connetion End: | RF |
| 6.Working Pressure: | 600LB |
| 7.Suitable Medium: | Water, Natural Gas, Oil and some corrosive liquid |
| 8.Operated: | / |
| 9. Inspection & Testing | According to API 598 |
| Certificate: | ISO, CE/API 6D |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
