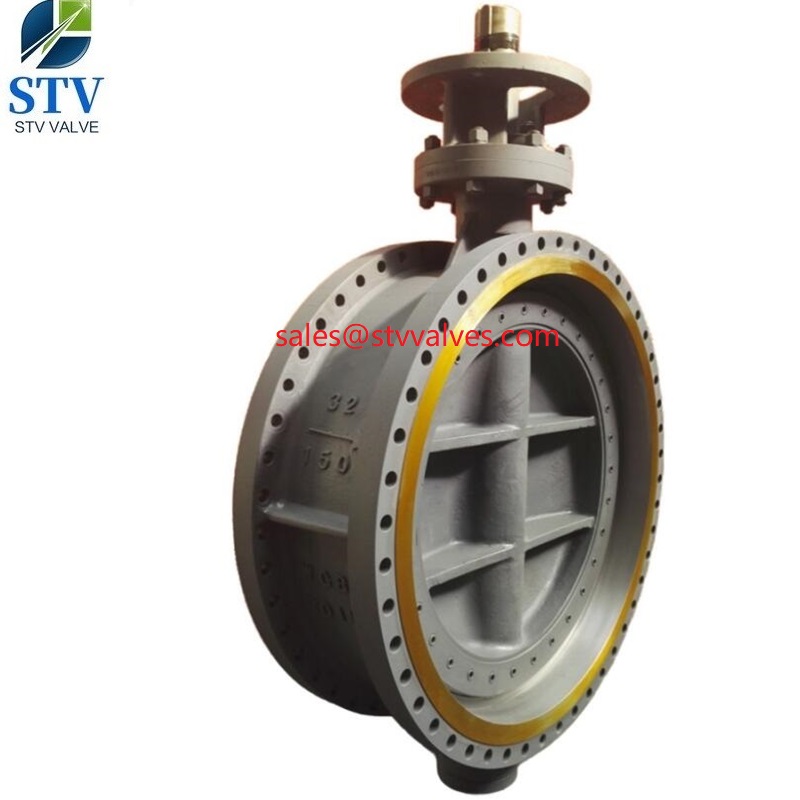

API 609 Flange Type Butterfly Valve,32 Inch,A216 WCB,Bare Stem

Description

API 609 Flange Type Butterfly Valve,32 Inch,A216 WCB,Bare Stem

1. Designed and Manufactured to BSEN 593, MSS SP-67 and API 609

2. Suitable to ANSI 125/150, BS4504, DIN flanges

3. Size Ranges: NPS 2″~52″

4. Pressure Rating: PN10/16, ANSI125/150/300/600/900

5. Materials available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials of Butterfly Valve are available to suit different service conditions

6. Fire-safe design to API 608/API 6FD upon request

7. To MSS SP 01-75 On request

8. Operations: Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumatic

Starting from the American standard NPS 26 (DN650), the flange connection size is divided into two series, A and B. These two series have different processing sizes and flange thicknesses, which directly affect the weight of butterfly valves and result in different prices. So when customers receive inquiries, please first clarify which series A or B it is.
