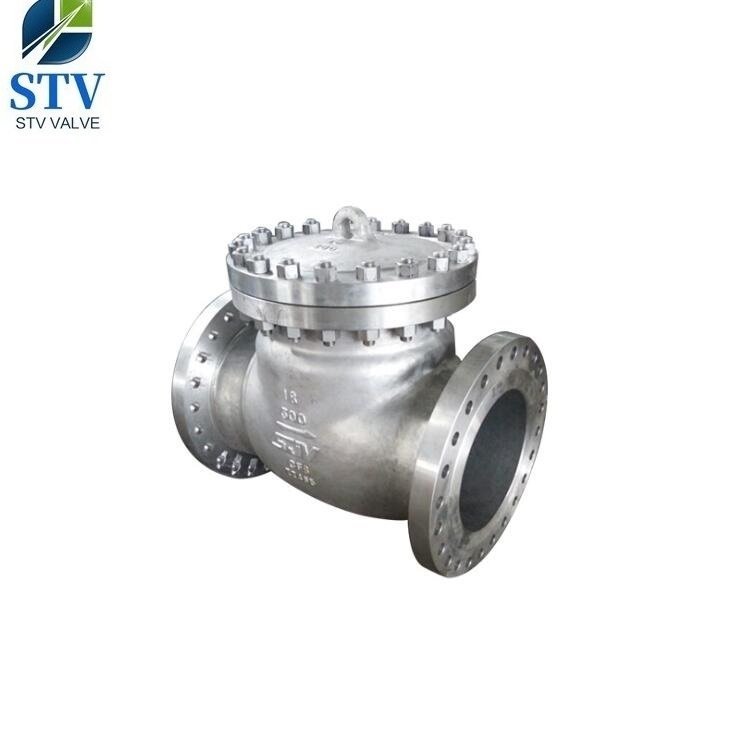

API 603 300LB Swing Check Valve,CF8 Body,18 Inch,Flange End
API 603 300LB Swing Check Valve,CF8 Body,18 Inch,Flange End - Image 2

API 603 300LB Swing Check Valve,CF8 Body,18 Inch,Flange End

Model:STV-H44H-300LB-CF8-18″

API 603 standard check valves are used in Class150-300, PN2.0-5.0 MPa, working temperature-29-500 C pipelines to cut off or connect the medium in the pipeline. Different materials can be used in nitric acid, acetic acid, oxidizing medium, urea and other corrosive media. They can also be used in water, steam, oil and other non-corrosive or weak corrosive media..

STV Valve Technology Group Co., Ltd is a professional leader China Stainless Steel Check Valve,API 603 Swing Check Valve,300LB Swing Check Valve,18 Inch Flange Swing Check Valve,China 316 Check Valve Manufacturer with high quality and competitive price.

Please contact our [email protected] for other materials and details.

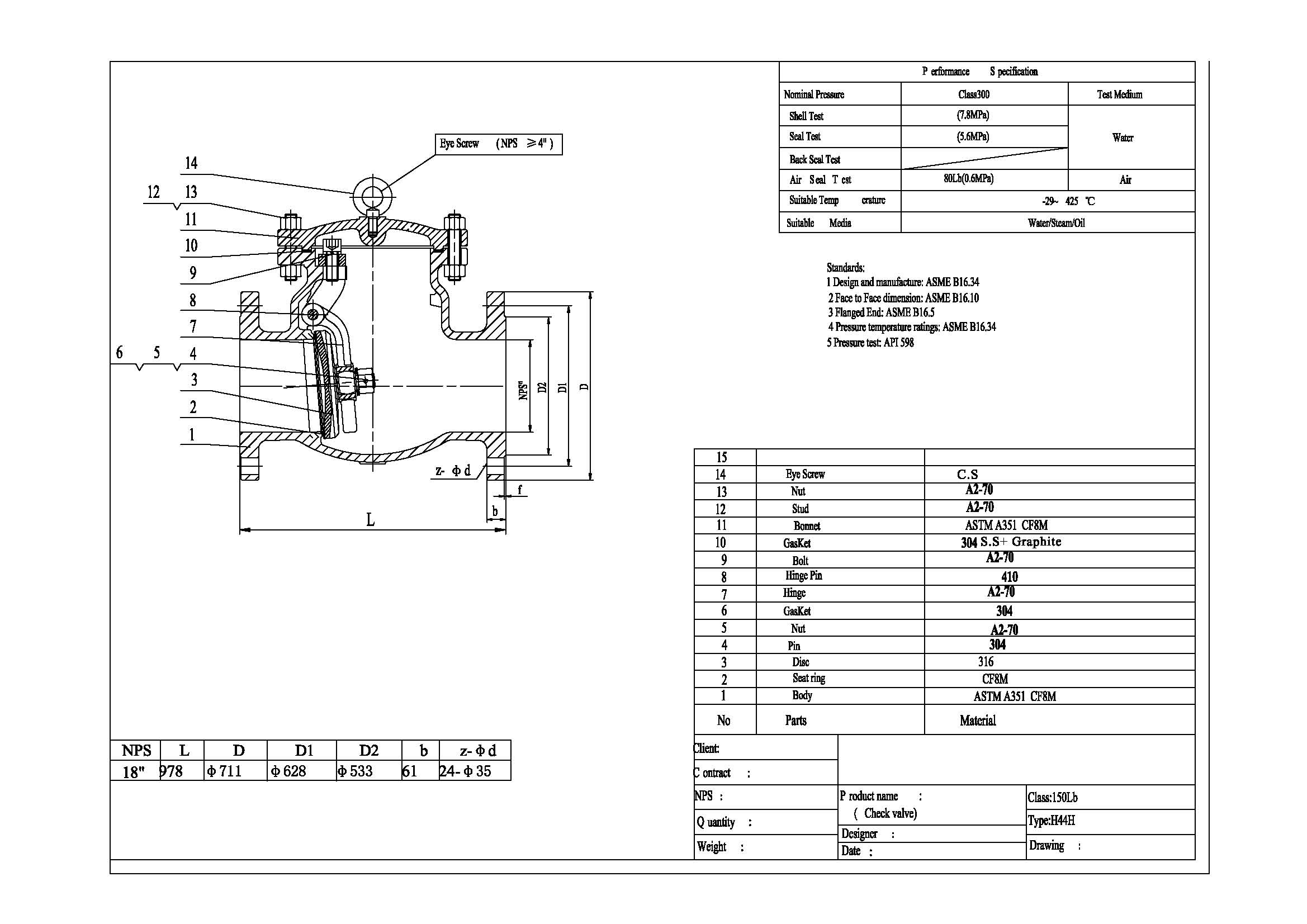

Date Sheet:API 603 300LB Swing Check Valve,CF8 Body,18 Inch,Flange End

Categories: , Tags: , , , ,

Description

API 603 300LB Swing Check Valve,CF8 Body,18 Inch,Flange End
CLASS 150~1500 SWING CHECK VALVEBolted cover, swing type disc
Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,
A351 CF3,A351 CF3M,A351 CN7M
Standards compliance
Design and Manufacture: ANSIB16.34,API6D,BS11868
Face to face(end to end): ANSIB16.10,API6D
Flanged connection: 2~~24~to ANSIB16.5＿
2~,26~~36~to MSS-SP-44；~to API605 on request
Butt welded end: ANSIB16.25
Test and inspection: API598,API6D

Stainless Steel Check Valve,API 603 Swing Check Valve,300LB Swing Check Valve,18 Inch Flange Swing Check Valve,China 316 Check Valve Manufacturer
