Description

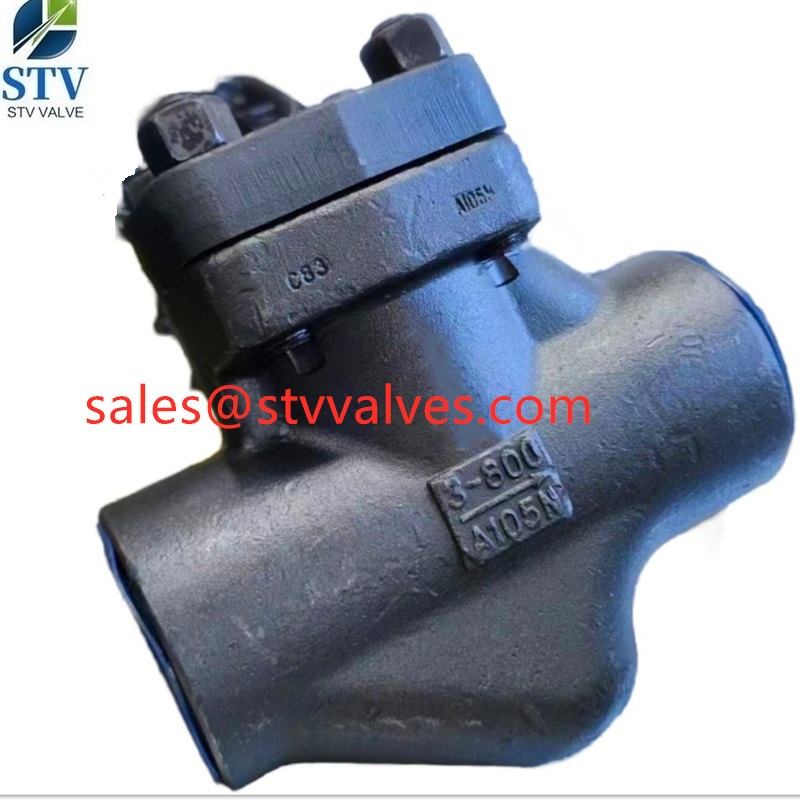

API 602 Piston Check Valve,A105N,3 Inch, 800 LB,SW End
Design: API 602
Body: A105N
Nominal Size: 3 Inch
Nominal Class: 800LB
End Connection: SW
Face to Face: Manufacture
Test and Inspection: API 598
Nominal Diameter: 1/4 Inch – 4 Inch
Design Temp.: -196℃ – 573℃
Design Pressure: Class 150 LB – Class 2500 LB
Material: ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: X
Application: Power Station, Petroleum, Chemical Engineering
| Product Name | API 602 Piston Check Valve,A105N,3 Inch, 800 LB,SW End |
| 1. Material | A105N |
| 2. Size | 3” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 800LB |
| 6. Connection Ends | SW End |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | X |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
