Description

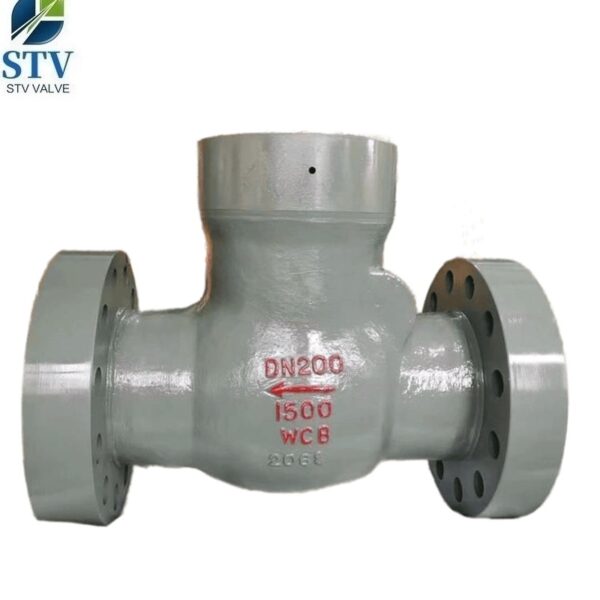

Product name: ANSI 1500LB Swing Check Valve,WCB Body,DN200,RF End
Design:E101.
Material: WCB
Nominal size: 8 Inch.
Nominal pressure: Class1500 LB.
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Design and Manufacture：E101,BS1868, API594, API6D, ASME B16.34, API603
Inspection and Test：API598,API600 or API 6D
ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS＞24)
BW end Dimension：ASME B16.25
Face to Face and End to End：ASME B16.10
Pressure-temperature ratings：ASME B16.34
Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter:2″~36″(DN50~DN900)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-29℃~+560℃
| Product Name: | ANSI 1500LB Swing Check Valve,WCB Body,DN200,RF End |
| 1.Material: | WCB |
| 2.Size: | 8″ |
| 3.Port: | FULL |
| 4. Working Temperature: | -29 °C-425 °C |
| 5.Connetion End: | RF |
| 6.Working Pressure: | 1500LB |
| 7.Suitable Medium: | Water, Natural Gas, Oil and some corrosive liquid |
| 8.Operated: | / |
| 9. Inspection & Testing | According to API 598 |
| Certificate: | ISO, CE/API 6D |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
