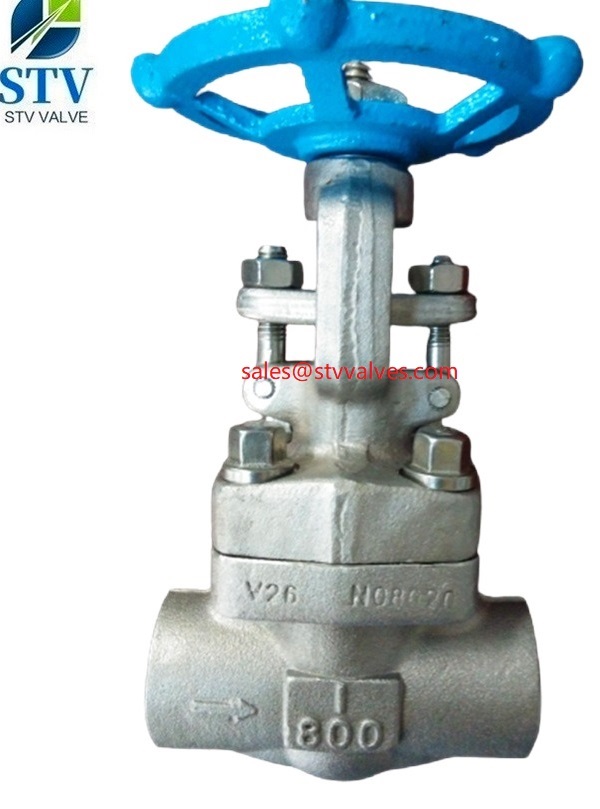

Alloy 20# Gate Valve, 1 Inch 800LB , ASTM B462 N08020 Body, N08825 Trim, SW End

Name: Alloy 20# Gate Valve, 1 Inch 800LB , ASTM B462 N08020 Body, N08825 Trim, SW End
Design: API 602
Body: UNS N08020 (ASTM A182 F20)
Nominal Size: 1 Inch
Nominal Class: Class 800 LB
End Connection: SW Ends
Face to Face: Manufacture Standard
Test and Inspection: API 598Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch – 4 Inch
Design Temp.: -196℃ – 573℃
Design Pressure: Class 150 LB – Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: Handwheel
Application: Power Station, Petroleum, Chemical Engineering

Product Name	Alloy 20# Gate Valve, 1 Inch 800LB , ASTM B462 N08020 Body, N08825 Trim, SW End
1. Material	N08020
2. Size	1”
4. Port	Reducer Port
5. Working Pressure	800LB
6. Connection Ends	Socket Weld End
7. Working Temp.	-29~425ºC,
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handwheel
10. Inspection & Testing	According toAPI 598
Shipment
Delivery Time	30 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size
