Description
Design and Manufacture：Cast Steel Gate Valve to API 600(ISO 10434)、API 6D;Cast Stainless Steel Gate Valve to API 603、API 600
Inspection and Test：API598,API600 or API 6D
End Flange Dimension：ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS＞24)
BW end Dimension：ASME B16.25
Face to Face and End to End：ASME B16.10
Pressure-temperature ratings：ASME B16.34
Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter:2″~36″(DN50~DN900)
End Connection: RF,RTJ, BW
Pressure range: Class150~900(PN16~PN150)
Working temperature:-29℃~+560℃
Operation: Hand wheel,Gear,Electric Actuator,etc.

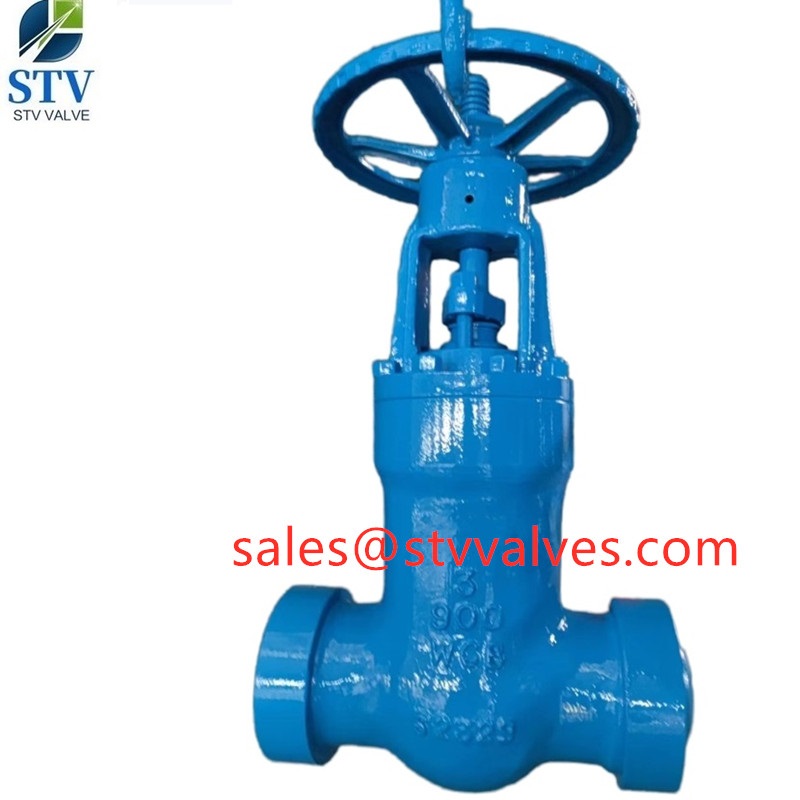

| Product Name | 900LB Pressure Seal Gate Valve,3 Inch,WCB,BW End |
| 1. Material | WCB |
| 2. Size | 3” |
| 4. Port | Full Port |
| 5. Working Pressure | 900lb |
| 6. Connection Ends | BW |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Gear Box |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
