Description
Design And Manufacture: API 603、ASME B16.34
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
Size: 1/2″-30″
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB WCC, LCB, LCC, WC6, WC9, C5, C12, A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)

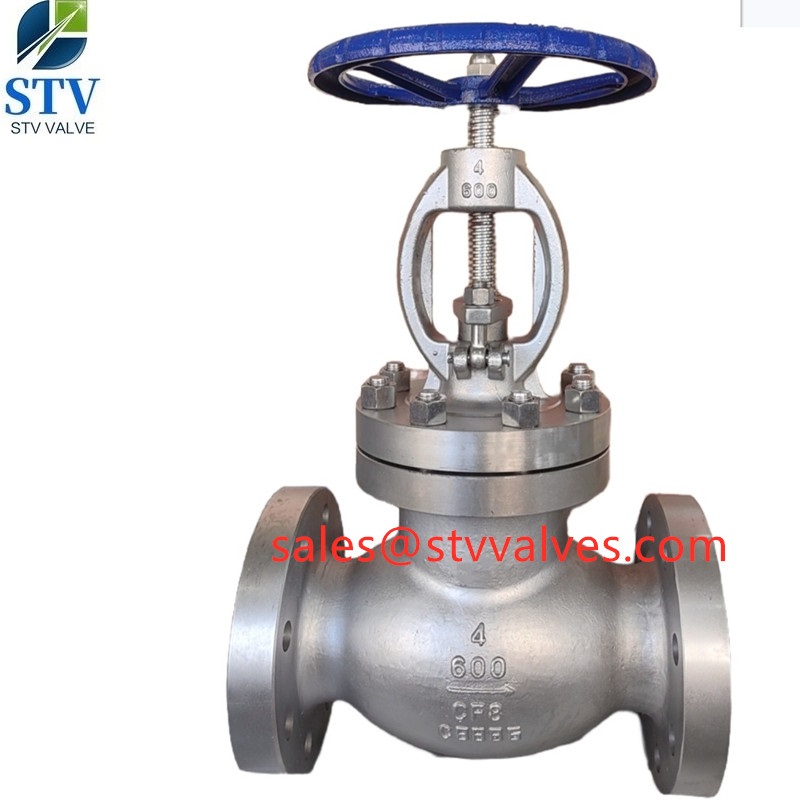

| Product Name | 600LB CF8 Globe Valve,4 Inch,600LB,RF End |
| 1. Material | CF8 |
| 2. Size | 4” |
| 4. Port | Full Port |
| 5. Working Pressure | 600lb |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
