Model:STV-Q11F-1000WOG-DN25-WCB
3 Piece Ball Valve is a fully maintainable three piece, full bore ball valve;,providing a cost-effective solution for ‘shut-off’ and isolation of low temperature steam duty and medium flows.
A general purpose ball valve that’s reliable. Stainless Steel body and Carbon Filled PTFE seat.
Features a blow-out proof stem and insulated grip, lockable lever handle.
Stainless Steel CF8M 316 Body
Screwed BSP, Socket Weld, Butt Weld or NPT
Sizes: 1/4″ to 4″
Temperature range: -20 °C to +200°C
Operating pressure: 1000 PSI (1/4″ to 2″) and 800 PSI (2 1/2″ to 4″)
Movement: 90° turn
STV Valve Technology Group Co., Ltd is a professional leader China 3pc wcb ball valve with threaded connection,3 Piece Carbon Steel A216 WCB Ball Valve, 3pc Wcb Ball Valve,3-Piece Ball Valve Manufacturer with high quality and competitive price.
Please contact our [email protected] for other materials and details.

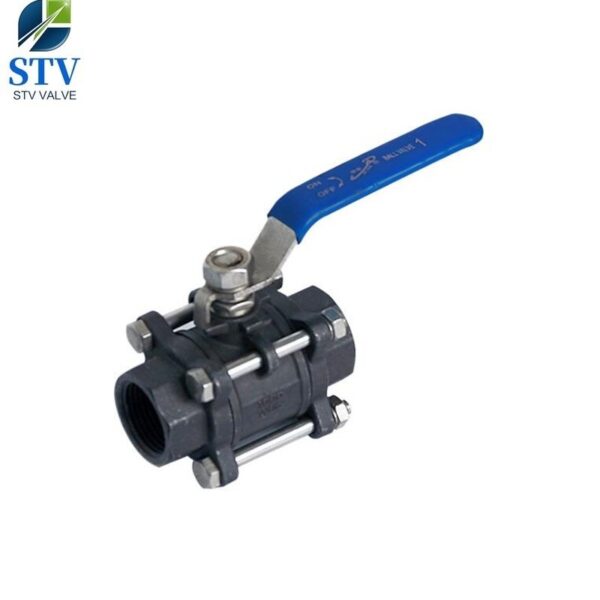

Date Sheet:3PC Carbon Steel Ball Valve ,1000 PSI,316 Trim,NPT End
1. Working pressure: 1.6Mp,2.5Mp
2.ISO-5211 Mounting pad for easy automation.
3.Anti-static device.Fire safe design available,
4. Blow-out proof Stem.
5.Suitable media: water, oil, Gas and some corrosive liquids.
6.Investment Casting.
7. Inspection & Testing: API 598.
8.Manual,pneumatic,electric operated avaible.
9.Pneumatic actuator: double action &single action is available.
10.Thread:NPT&BSPT &BSP
11.Temperature Range:-40°C~150°C
12.Low operation Torque.
