Description
Resilient seated butterfly valve is a Double Flange design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven record of long service life. A major design advantage of this valve product lines is international compatibility.
Main Parameter Specification
Design and Manufacture：API 609
Face to Face Dimension：API609,ISO5752,ASME B16.10
Flange Connection Dimension：ASME B16.5,ASME B16.47
Test and Inspection：API 598
Pressure Temperature Rating：API 609,ASME B16.34
Product Range
Body material: Cast Iron,Cast Steel,Stainless Steel,Monel
Disc Material:Ductile Iron, Carbon Steel, Stainless Steel ,AL-Bronze
Nominal diameter:2″～120″（DN50~DN3000）
End Connection: Double Flange,Wafer,Lug,etc
Pressure range: Class150 ~ 600（PN16~PN100）
Working temperature:-46℃ ~ +550℃
Operation : Handle, Gear, Electric actuator, etc

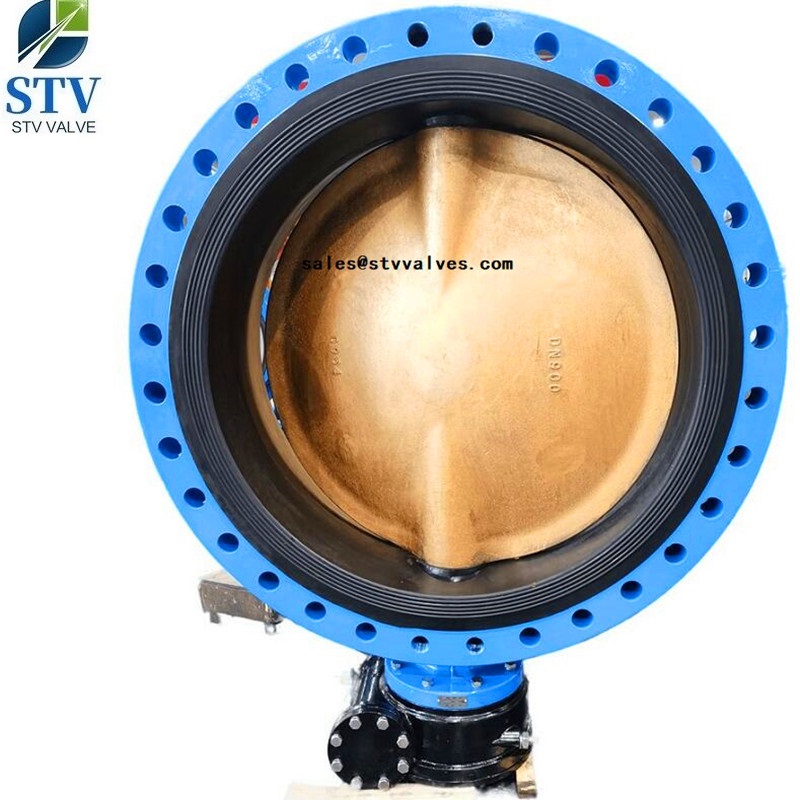

| Product Name | 36 Inch Flange Butterfly Valve ,DI Body,95800 Disc,EPDM Seat |
| 1. Material | DI |
| 2. Size | 36” |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB |
| 6. Connection Ends | Flange |
| 7. Working Temp. | -29~120ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Gear Box |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
