Description

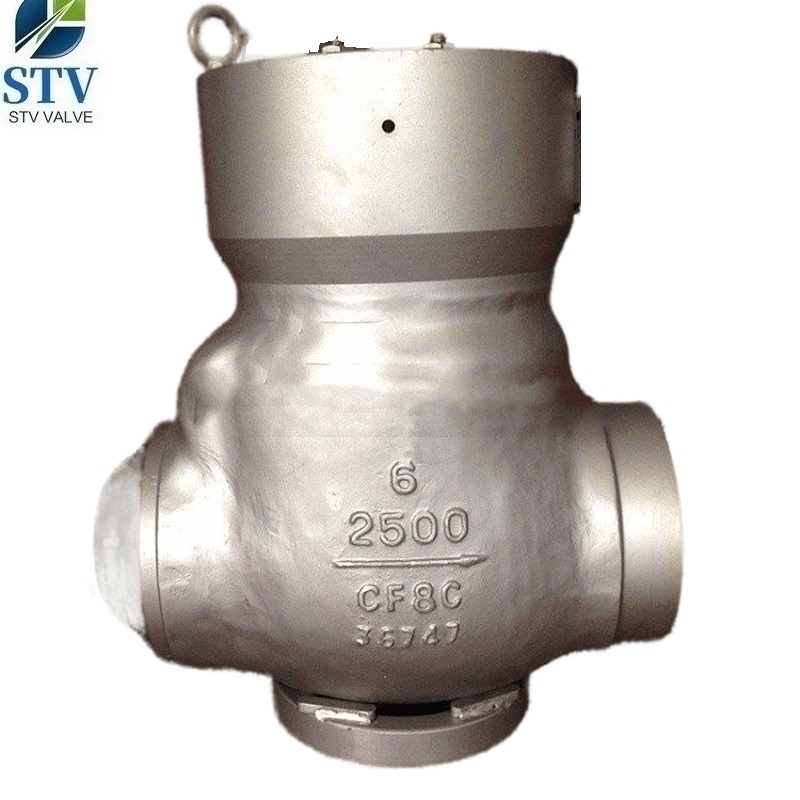

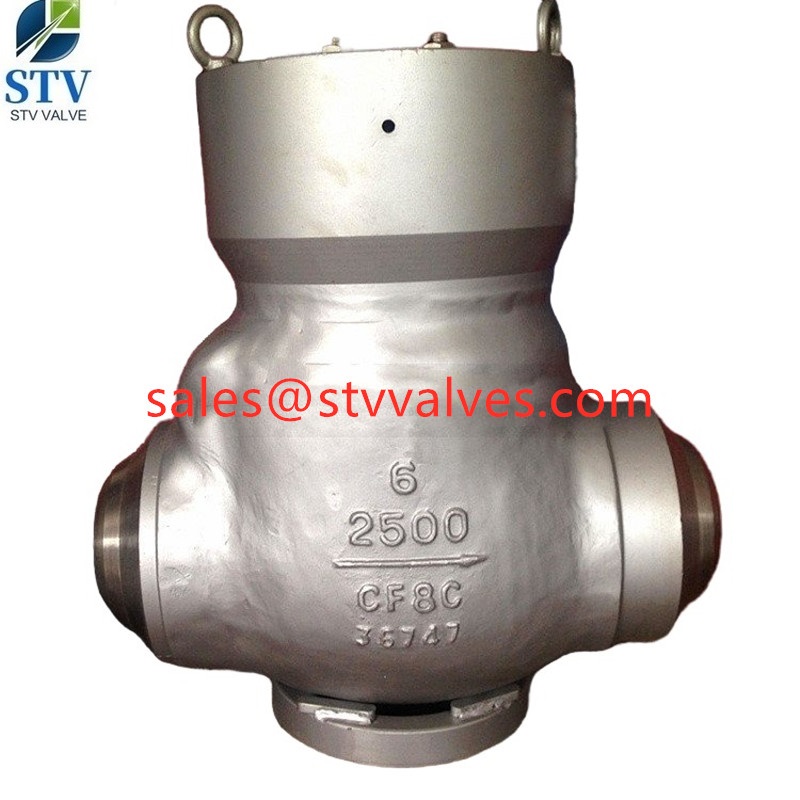

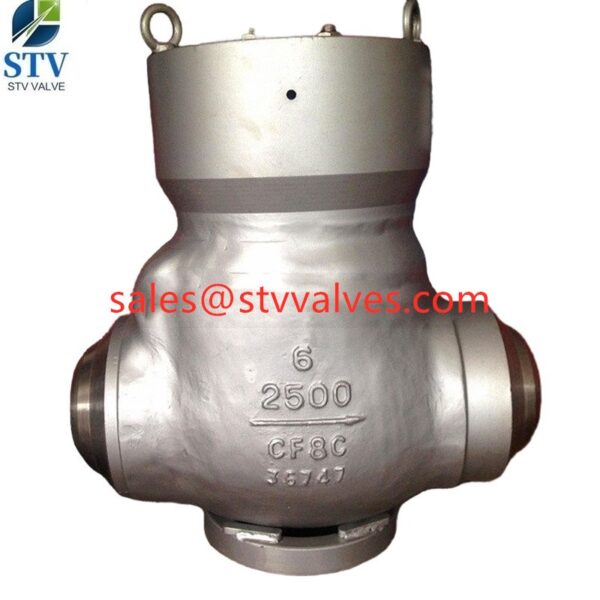

Products Name: 2500LB CF8C Swing Check Valve,6 Inch,BW End
Design: API 6D
Body: CF8C
Nominal Size: 6 Inch
Nominal Class: 2500 LB
End Connection: BW Ends
Face to Face: ASME B16.10
Test and Inspection: API 598
Body: CF8C
Nominal Size: 6 Inch
Nominal Class: 2500 LB
End Connection: BW Ends
Face to Face: ASME B16.10
Test and Inspection: API 598
Body Material:Titanium,Duplex, Hastelloy C276/B3, Monel, Alloys20, 4A, 5A, C95800, C95500,Monel, Alloy 20, F347,Super Duplex,Inconel ect.
Manufacturing Standards:API, ANSI, BS, DIN, JIS.
Valve Pressure:150LB to 2500LB (PN1.6-42MPa).
Check Valve Size range:1/2 to 32 Inch (DN15 to DN800).
Operating temperature:from -196 degrees Celsius to 593 degrees Celsius.
Connection:Flanged, Butt-welded.
Face to Face Dimensions:ANSI B16.10.
Flange end Dimension:ANSI B16.5
Butt Welded Dimensions:ANSI B16.25
Design and Manufacture:BS1868
Pressure Test:API598
| Product Name | 2500LB CF8C Swing Check Valve,6 Inch,BW End |
| 1. Material | CF8C |
| 2. Size | 6” |
| 4. Port | Full Port |
| 5. Working Pressure | 2500LB |
| 6. Connection Ends | BW |
| 7. Working Temp. | -29~400ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | / |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
