Description

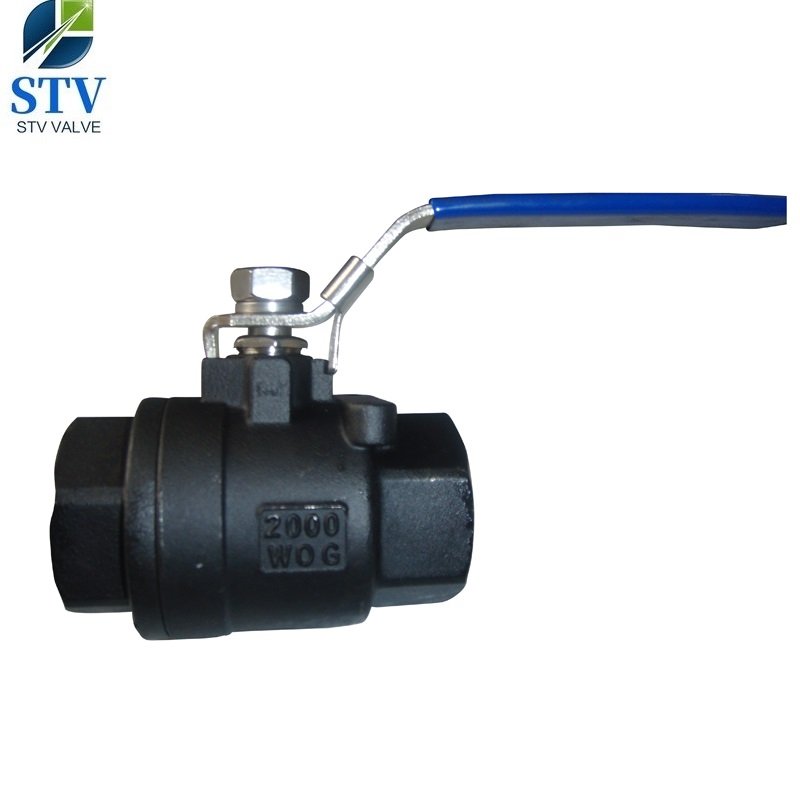

2 Piece 2000 WOG Carbon Steel Ball Valve
Working pressure:2000PSI(PN140)
Working temperature:-29C-150C
Suitable medium:water oil gas
Threaded end:BSPT NPT ISO7/1 ISO228
Material:carbon steel/WCB
Full Port
Threaded Ends
1/2″-4″: 2000 WOG
With handle lock
Valve Features
Strengthened construction secures 2000psi working pressure rating.
Reinforced TFE seat increases durability.
Adjustable packing gland.
Bottom-loaded blow-out proof stem.
Basic design complied with ANSI B16.34 & EN 12516-1.
NPT threaded ends complied with ANSI B 1.20.1.
Rc, Rp & G Threaded ends complied with BS 21/2779, JIS B-0203/0202, DIN 259/2999, ISO 228-1, AS 1722.1/1722.2 are upon request.
Tested according to API 598.
Product Name3 | 2 Piece Full Port Ball Valve,WCB Body,2000WOG,NPT End |
1. Material | WCB |
2. Size | 2” |
4. Port | Full Port |
5. Working Pressure | 1000WOG |
6. Connection Ends | NPT |
7. Working Temp. | -29~180ºC, |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Operated | Handwheel |
10. Inspection & Testing | According to API598 |
Shipment | |
Delivery Time | 30 Days |
Package | Standard Exporting Plywood Case |
Shipping Port | Ningbo/Shanghai, China |
Shipping Terms | Exw, FOB, CFR, CIF, etc. |
Payment Terms | T/T, Western Union, PayPal, etc. |
30% prepayment, 70% balance paid before shipping | |
Country of Origin | Wenzhou city, China |
Production Capacity | 6000 ton/year |
MOQ | 1 PCS/size |
