Description
2 Piece Body Design

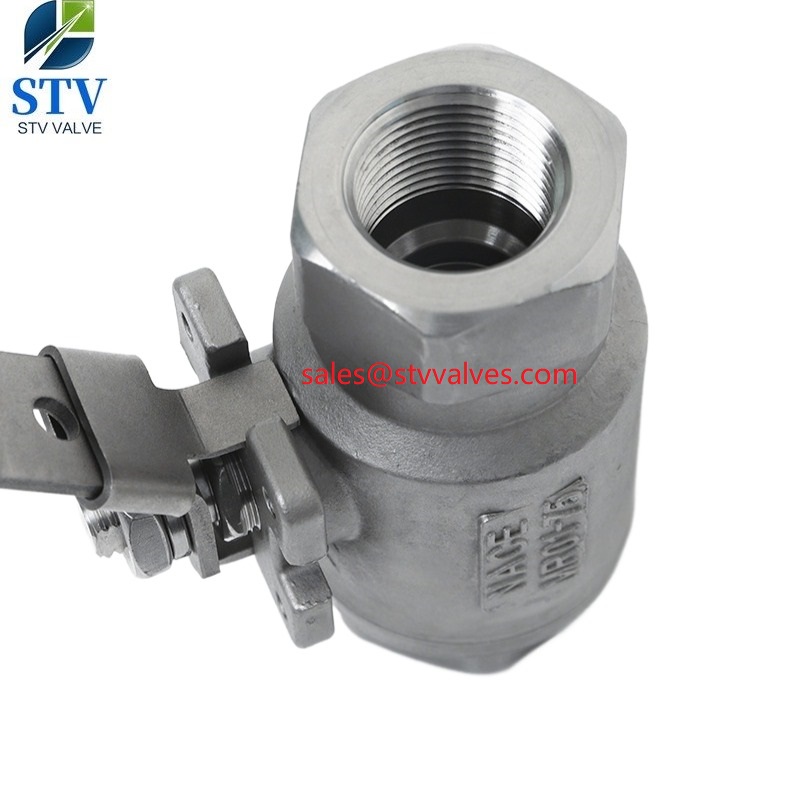

2-piece 6000wog ball valve
2-piece full bore forged steel wire buckle ball valve
This product is specialized in supplying petroleum pipeline equipment customers.
Pressure range: 6000wog
Size range: DN15-DN50
Temperature range: -29~220 ℃
Applicable range of materials: A105/SS304/SS316/stainless steel duplex steel 2205, etc.
Scope of application for connection method: BSPT/NPT/ISO7-1
Design & Manufacture Std.: API 608,API 607,API 6D,BS 5351
Face to Face Std.: API B16.10,API 6D,DIN 3202
End Connection Std.: NPT, BSP, BSPT, DIN259/2999
Test Standard: ISO5208,API 6D,BS 6755 ,API598
Body Material:A105, F304, F316
Seat: RPTFE,PPL,Nylon
Working Temperature:-40-180℃
Suitable:Water, Oil, Gas
| Product Name | 2-PC Ball Valve 6000 WOG,CF8M,316 Trim,Weld Bonnet |
| 1. Material | CF8M |
| 2. Size | 1” |
| 4. Port | Full Port |
| 5. Working Pressure | 6000wog |
| 6. Connection Ends | NPT |
| 7. Working Temp. | -29~120ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
