Description

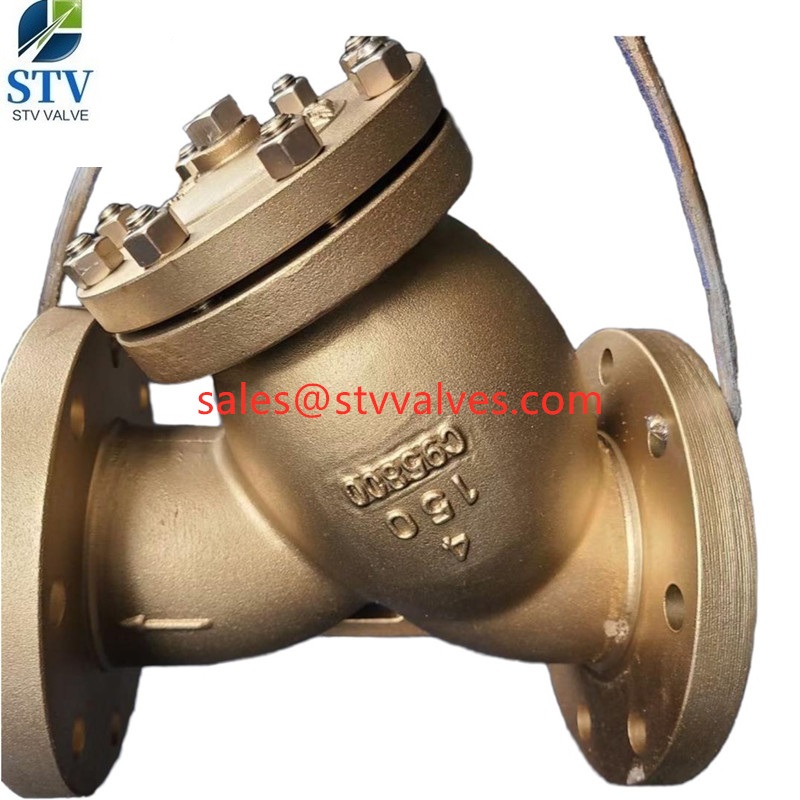

China ASTM B148 C95800 Y Strainer Supplier : ASTM B148 C95800 Y Strainer for sea water, 4 Inch, Class 150 LB, ASME B16.34, RF Flanged Ends.
Design&Manufacture:API6D&ANSI B16.34
Face to Face Dimension:ASME B16.10
End Flange Dimension:ASME B16.5
Butt Welded Dimension:ASME B16.25
Test&Inpection:API598
Specification: Size:2″-24″
Pressure:150-300lb
Material:C95800,C95400,C92200,C90500
Temperature;-196°C+545°C Service: Sea Water
Product Name | 150LB C95800 Y Strainer,4 Inch,RF Flange End |
1. Material | C95800 |
2. Size | 4” |
4. Port | Full Port |
5. Working Pressure | 150lb |
6. Connection Ends | RF |
7. Working Temp. | -29~200ºC, |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Operated | / |
10. Inspection & Testing | According to API598 |
Shipment | |
Delivery Time | 30 Days |
Package | Standard Exporting Plywood Case |
Shipping Port | Ningbo/Shanghai, China |
Shipping Terms | Exw, FOB, CFR, CIF, etc. |
Payment Terms | T/T, Western Union, PayPal, etc. |
30% prepayment, 70% balance paid before shipping | |
Country of Origin | Wenzhou city, China |
Production Capacity | 6000 ton/year |
MOQ | 1 PCS/size |
