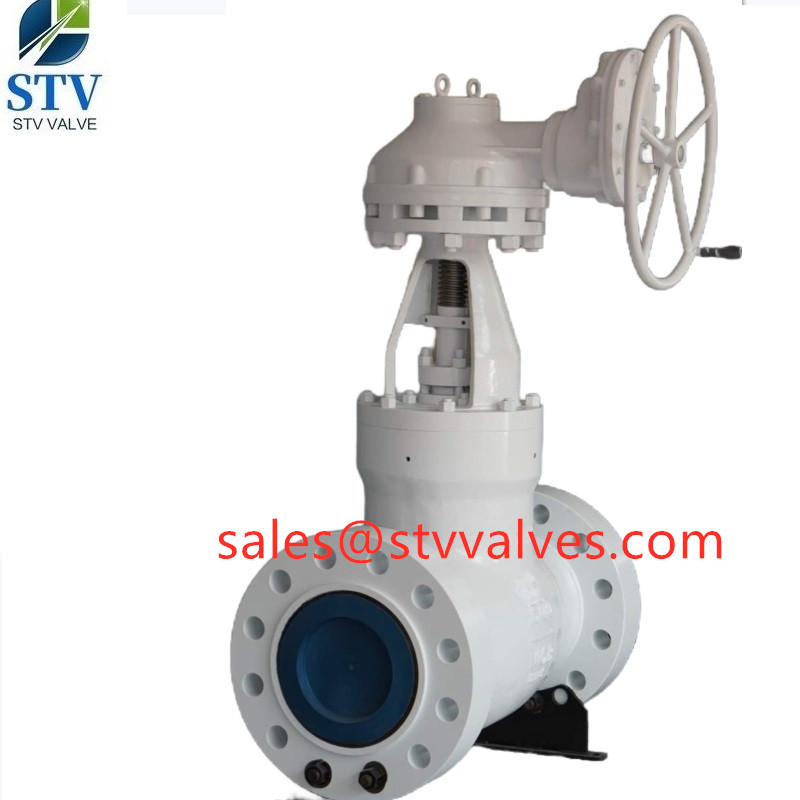

1500LB PSB GLOBE VALVE,12 Inch,WCB,RF End

Model:J561Y-2500LB-6
Our High Pressure Power Station 12500 LB Globe Valve is widely used in high pressure high temperature working conditions in power stations.high temperature and high pressure power station valve is suitable for Class1500 ANSI ~ 2500Lb, the operating temperature of -29 ~ 570 C of the oil, chemical, thermal power plants, and other operating conditions of the pipeline, cut off or connected to the media. Applicable medium: water, steam, etc.. Operating methods are: manual, gear, electric, etc.

Product reference standard:

Design and manufacturing: B16.34 E101 ANSI

Structure length: B16.10 E101 ANSI

Pressure temperature rating: B16.34 E101 ANSI

Experiment and test: E101 API598

Product structure features:

1 product design and manufacture according to E101, ANSIB16.34 standard, can be equipped with the use of imported equipment.

2 valve in the cavity with a pressure self tight seal structure, the higher the internal pressure, the better the sealing performance.

3 The valve flap and valve seat sealing surface with Stellite Stellite cobalt based alloy surfacing and and sealing surface

4 valve cover stuffing depth reasonable, filler and inhibitor, reliable sealing, smooth switch.

5 valve with the structure to ensure that the valve is open to run without the valve stem leakage.

6 the opening and closing of the electric cut-off valve is controlled by the electric device, and the electric device is respectively equipped with a special motor, a speed reducer, a torque control mechanism, a field operating mechanism, a hand and an electric switching mechanism. In addition to the local operation, but also for remote operation.
