Butterfly valve dimensions and models

The butterfly valve is a simple regulating valve, which is mainly composed of a valve body, a valve stem, a butterfly plate and a sealing ring. The valve body has a cylindrical shape with a short axial length and a built-in disc. The butterfly valve has the advantages of flexible operation and labor saving, and can be selected by manual, electric, pneumatic, hydraulic, and convenient installation, and is well received by everyone. I believe that many people don’t know much about the specifications and models of butterfly valves. Let’s take a look at the specifications and models of butterfly valves.

Butterfly valve advantages

  1. It is convenient, quick, labor-saving, and has low fluid resistance. It can be operated frequently.
  2. Simple structure, small size and light weight.

3, can transport mud

4, under low pressure, can achieve a good seal.

5, the adjustment performance is good.

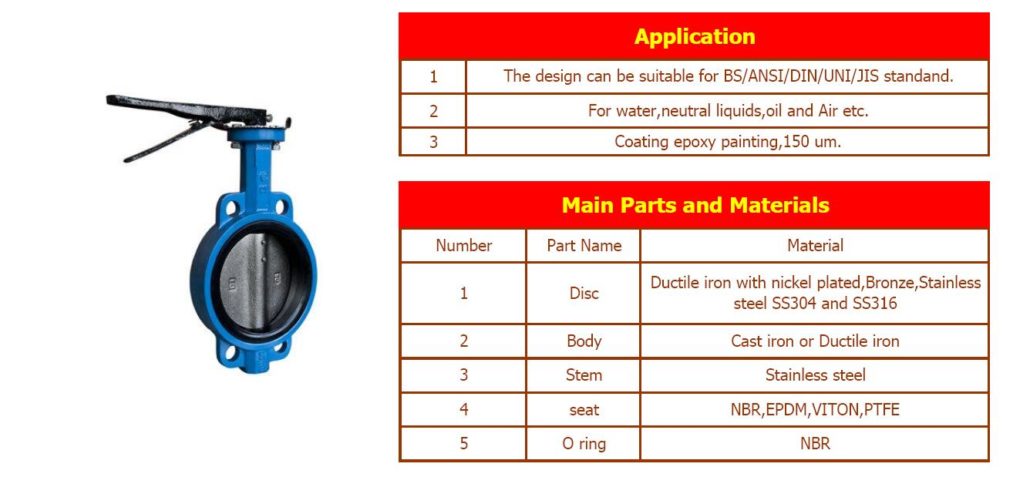

Butterfly valve specifications and models

Model: D71X/F

Caliber: 40~800

Pressure: 1.6MPa

Material: cast iron, cast steel, stainless steel

Flanged butterfly valve

Model: D41X/D43H

Caliber: 50 ~ 1200

Pressure: 1.6MPa-4.0MPa

Material: cast iron, cast steel, stainless steel

Pneumatic hard seal butterfly valve

Model: D673H/D643H

Caliber: 50~2000

Pressure: 1.6MPa-4.0MPa

Material: cast iron, cast steel, stainless steel

Material: ductile iron, cast steel, alloy steel, stainless steel

The butterfly valve model indicates that the sequence code is generally: butterfly valve type code, butterfly valve transmission mode, butterfly valve connection form, butterfly valve structure form, butterfly valve sealing surface material or lining material, butterfly valve nominal pressure, butterfly valve body material, which is the most basic arrangement mode D341X. -16C.
The above is a brief introduction to the specification and model of the butterfly valve. It can be known from the above that the butterfly valve has a wide application range. The butterfly valve is widely used not only in general industries such as petroleum, gas, chemical, water treatment, but also for cooling of thermal power stations. water system. When installing the butterfly valve, you should pay attention to the valve flap to stop at the closed position. The opening position should be determined according to the rotation angle of the butterfly plate. The butterfly valve with the bypass valve should open the bypass valve before opening. I hope that the introduction of these butterfly valve specifications and models can help everyone.
